Tensioned Frames.
Webnet mesh pre-installed in stainless steel frames for stair and balcony railings, safety fences, room dividers and green panels, ready to fix in minutes.
Webnet pre-installed in stainless steel frames, ready to bolt on.
Webnet Frames arrive with the mesh already tensioned in a stainless steel profile, drilled and fitted with the holders and clips you need. On site, each panel simply screws onto the structure, so installation takes minutes rather than days.
Frames come in standard shapes or are made to measure, and the flexibility of Webnet suits almost any geometry. Frames and mesh can be painted in most RAL Classic colours for a design accent, or left in natural stainless steel.
Use them as delicate infills on stairs and balconies, as safety fences, as room dividers, as free-standing or wall-mounted greening, or as protection above glass walls. Like all Webnet, the frames are DIBt-approved (Z-14.7-557) for fall prevention.
- Webnet pre-installed at the factory
- Bolt-on installation in minutes
- Standard sizes or made to measure
- Round or square stainless profiles
- RAL colours for frame and mesh
- DIBt-approved fall prevention (Z-14.7-557)
📍 Site surveys, installation and inspection nationwide — Metro Manila, Luzon, Visayas and Mindanao.
Rope EngineeringOptions for Every Structure.

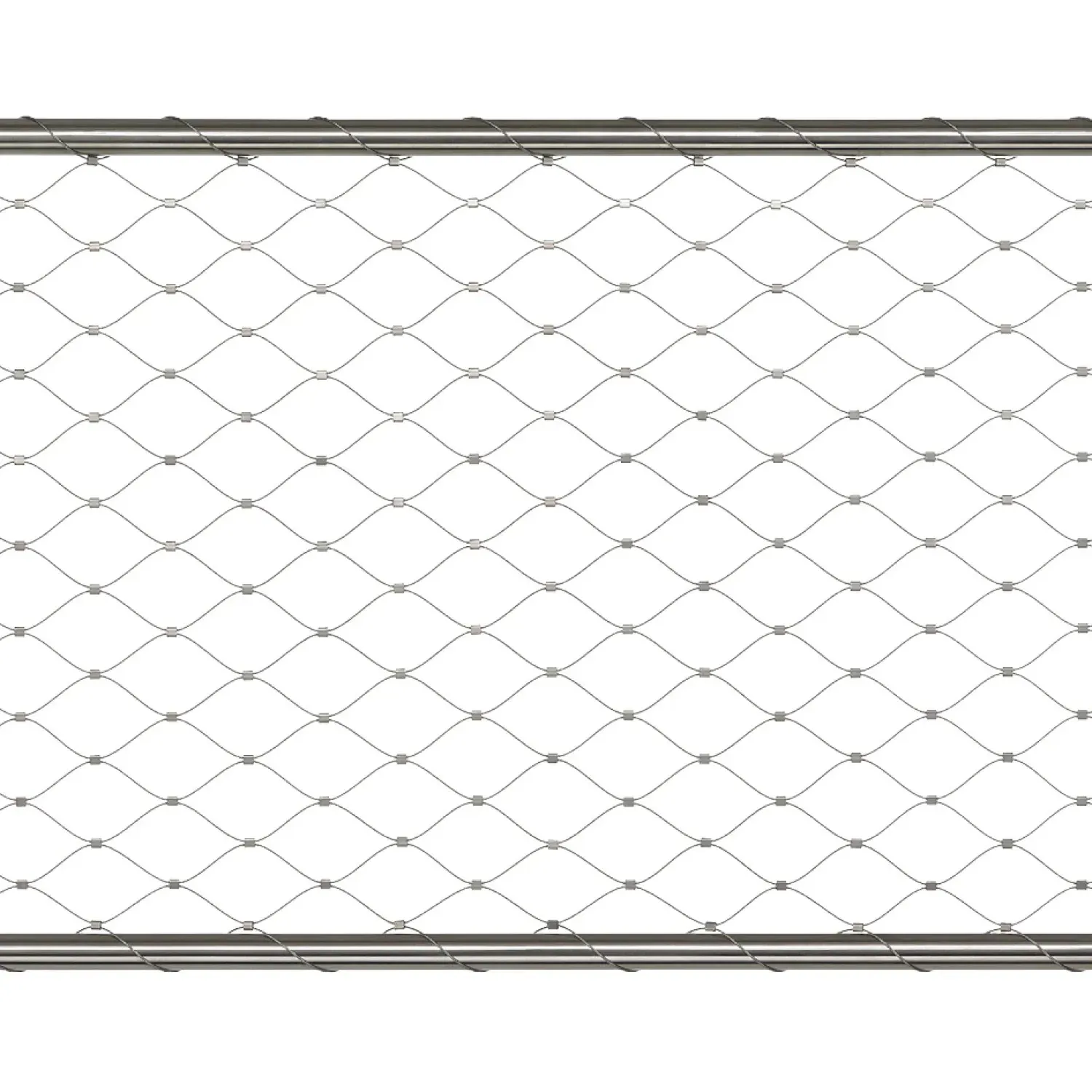

Frames Classic
Round stainless tubes in several diameters, with the lacing rope wound visibly around the frame. Works with almost any shape and net type; stable and cost-effective.

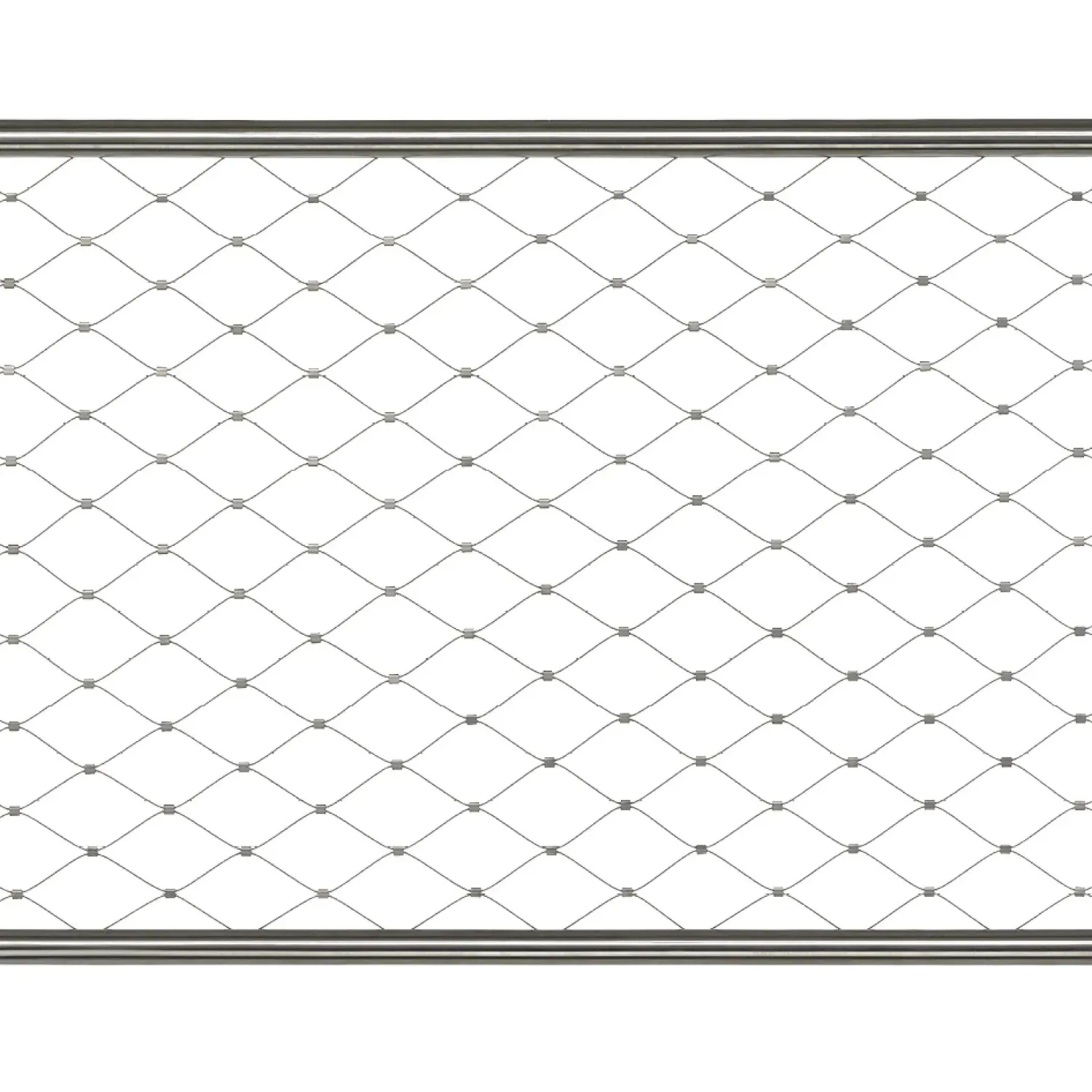

Frames Inviss-R
Slotted round tube that hides the lacing rope inside the profile for a cleaner, more elegant edge.

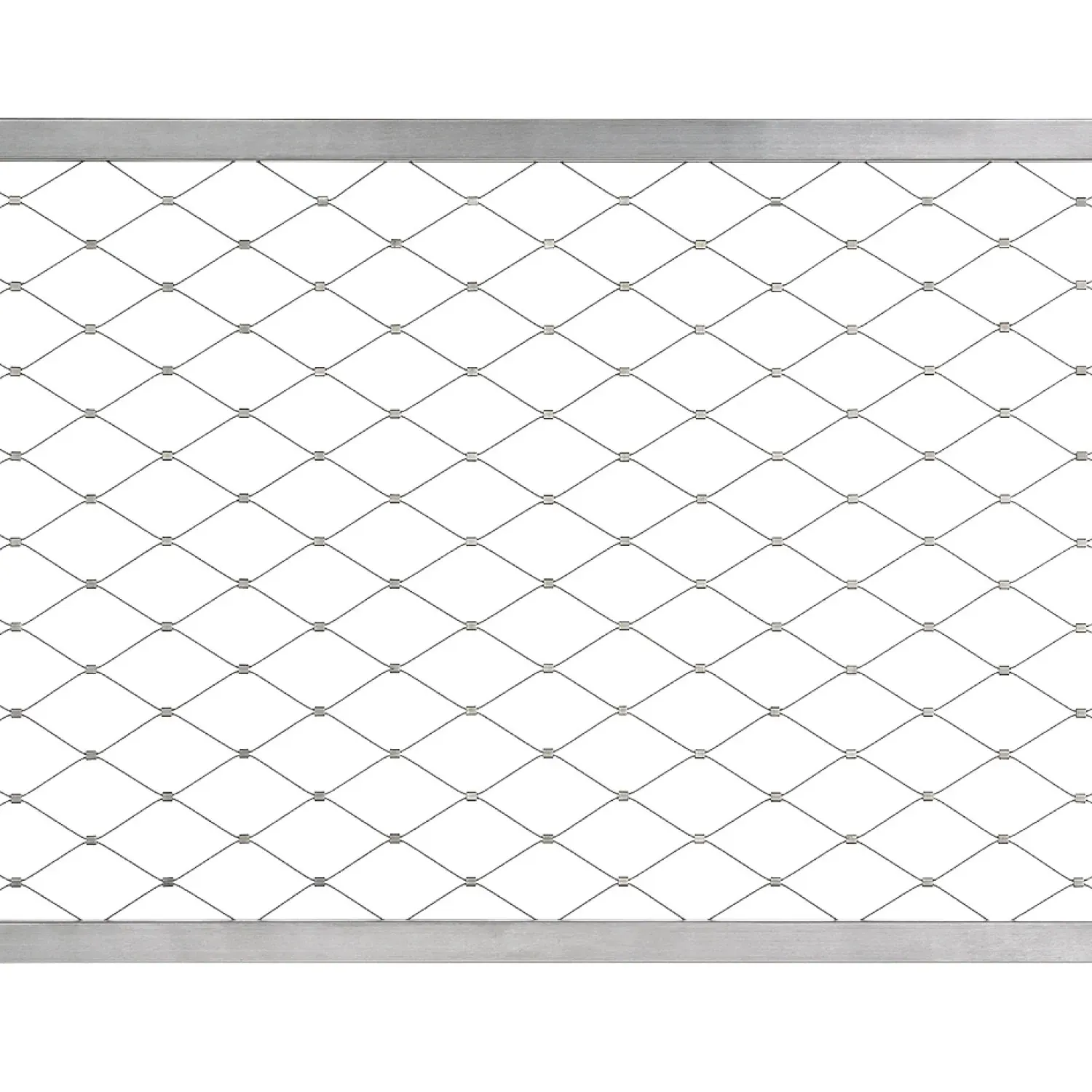

Frames Inviss-C
The same hidden lacing in a rectangular or square profile.

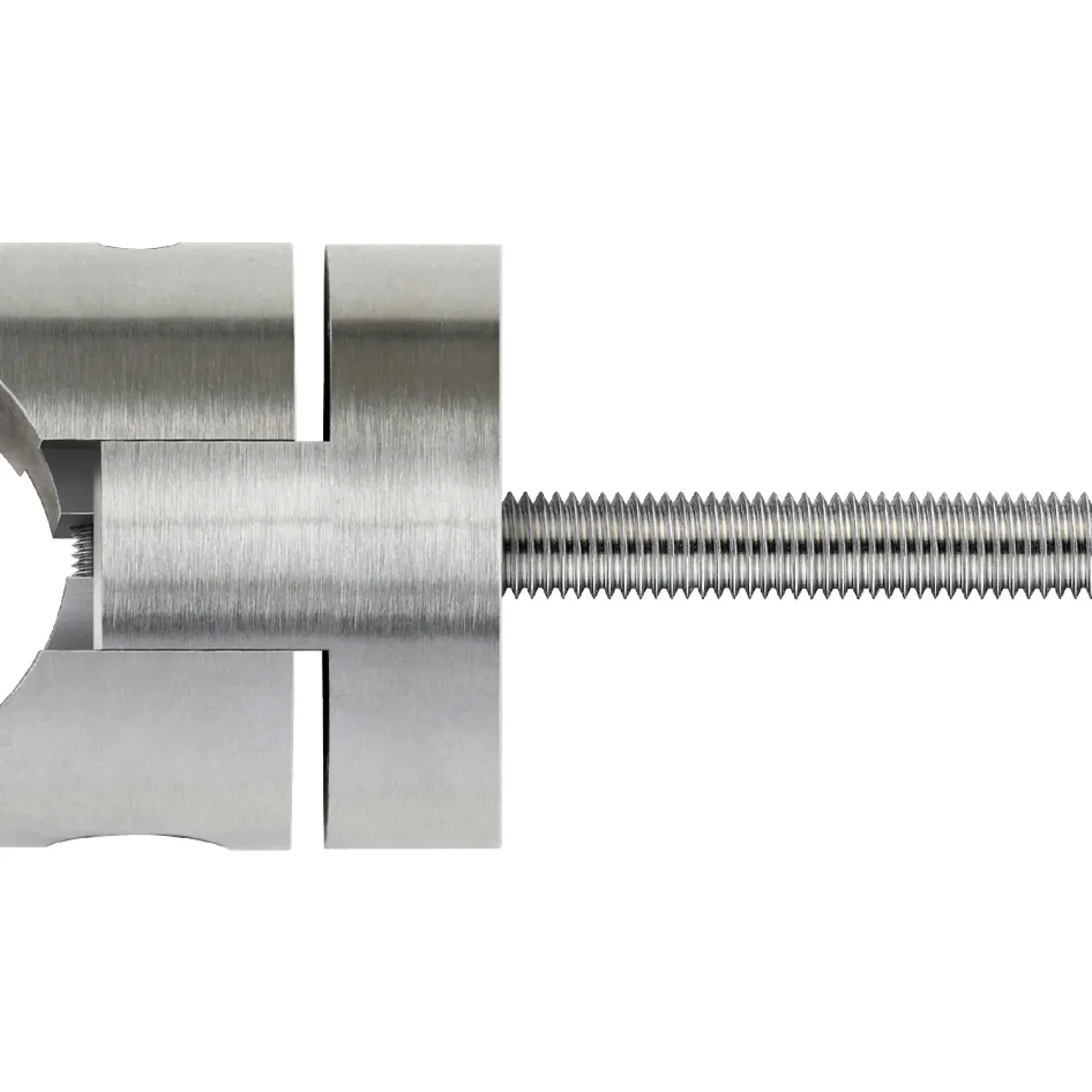

Fixing options
Through holes, flowdrill internal threads, welded brackets with or without angle, frame holders for round profiles and frame clamps for square profiles.

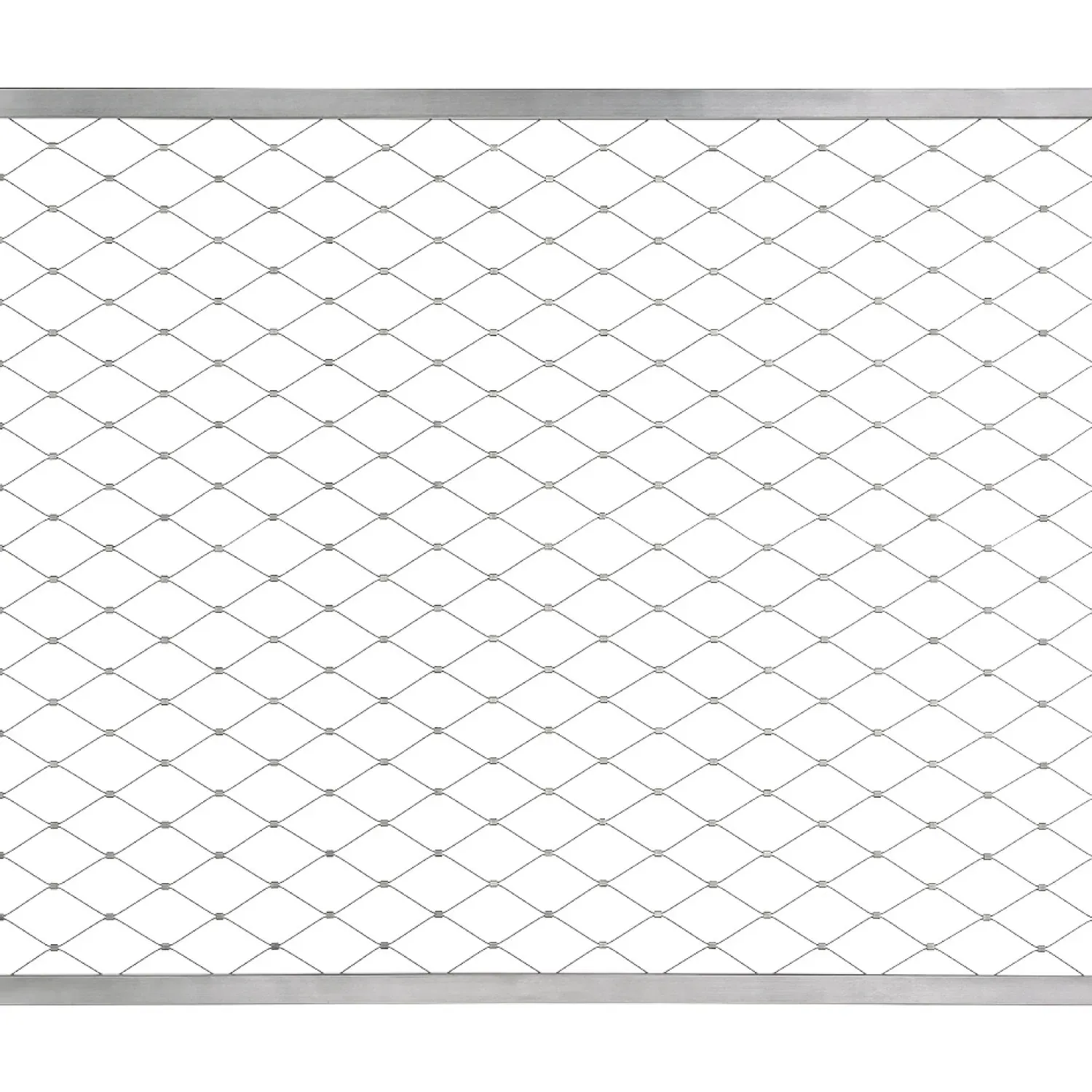

ModularRailing
Length-adjustable stainless steel railing system built with Webnet Frames.
Tensioned Frames Products.
Webnet Frames Classic, Inviss-R and Inviss-C.
Profiles and accessories for frames.
Holders for round profiles and clamps for square profiles.
Fittings to attach frames to posts.
Length-adjustable stainless railing with Webnet Frames.
Where It Works.
Standards & Compliance
- DIBt approval Z-14.7-557: horizontal and vertical fall prevention
- Load-bearing capacity data for Frames Classic, Inviss-C and Inviss-R
Shop the System.
From Survey to Sign-Off.
Survey
We visit the site, assess the hazards and confirm what the structure can carry.
Design
Layouts, calculations and product selection matched to your site.
Supply
Certified equipment from Groxx Gears, KStrong, Tractel, Jakob Rope Systems, FBA Gomyl and our own fabrication.
Install & Test
Installation by 828 technicians, with load and pull-out testing.
Certify & Inspect
Handover documents, training and scheduled inspections.
Common Questions.
How are Webnet Frames installed?
Frames are delivered drilled and with the frame holders or clamps you choose, then screwed onto posts, walls or steelwork. A panel takes minutes to fix.
Can frames be made to measure?
Yes. Standard sizes are cost-effective, and made-to-measure frames are produced to your drawings, including non-rectangular shapes.
Which frame type should I choose?
Classic is the most economical and flexible. Inviss-R (round) and Inviss-C (square) hide the lacing rope for a cleaner architectural edge.
Every Structure Is Different.
Tell us about your site. Our engineers will specify the right system, confirm product compatibility across brands and send a quotation with full certification documentation.
