Architectural Ropes.
Stainless steel wire rope and rod systems for balustrades, stays, canopies, bridges and rope structures, engineered and installed by 828 with Jakob Rope Systems components.
Stainless cable and rod systems for balustrades, bracing and tension structures.
Wire rope carries tension efficiently, weighs very little and almost disappears visually. That makes it the natural choice for stays and trusses, balustrade infills, suspended canopies, rope sculptures and green facades.
828 supplies the complete Jakob Rope Systems architectural range: marine-grade stainless ropes from 0.62 mm to 26 mm, rods from 5.3 mm to 21.9 mm, and hundreds of end terminations, turnbuckles, clevises, anchors and clamps. Almost any connection detail can be solved with standard, certified parts.
Stainless rope needs very little maintenance and keeps its finish for decades. We support the whole project, from engineering and load calculations to product selection, factory or on-site swaging, installation and inspection.
- Marine-grade stainless steel ropes and fittings
- Ropes from 0.62 mm to 26 mm, rods from 5.3 mm to 21.9 mm
- Swaged at the factory or assembled on site
- Forte heavy-load clevises and turnbuckles
- Engineering, installation and inspection by 828
- Almost maintenance-free, indoors and outdoors
📍 Site surveys, installation and inspection nationwide — Metro Manila, Luzon, Visayas and Mindanao.
Rope EngineeringOptions for Every Structure.

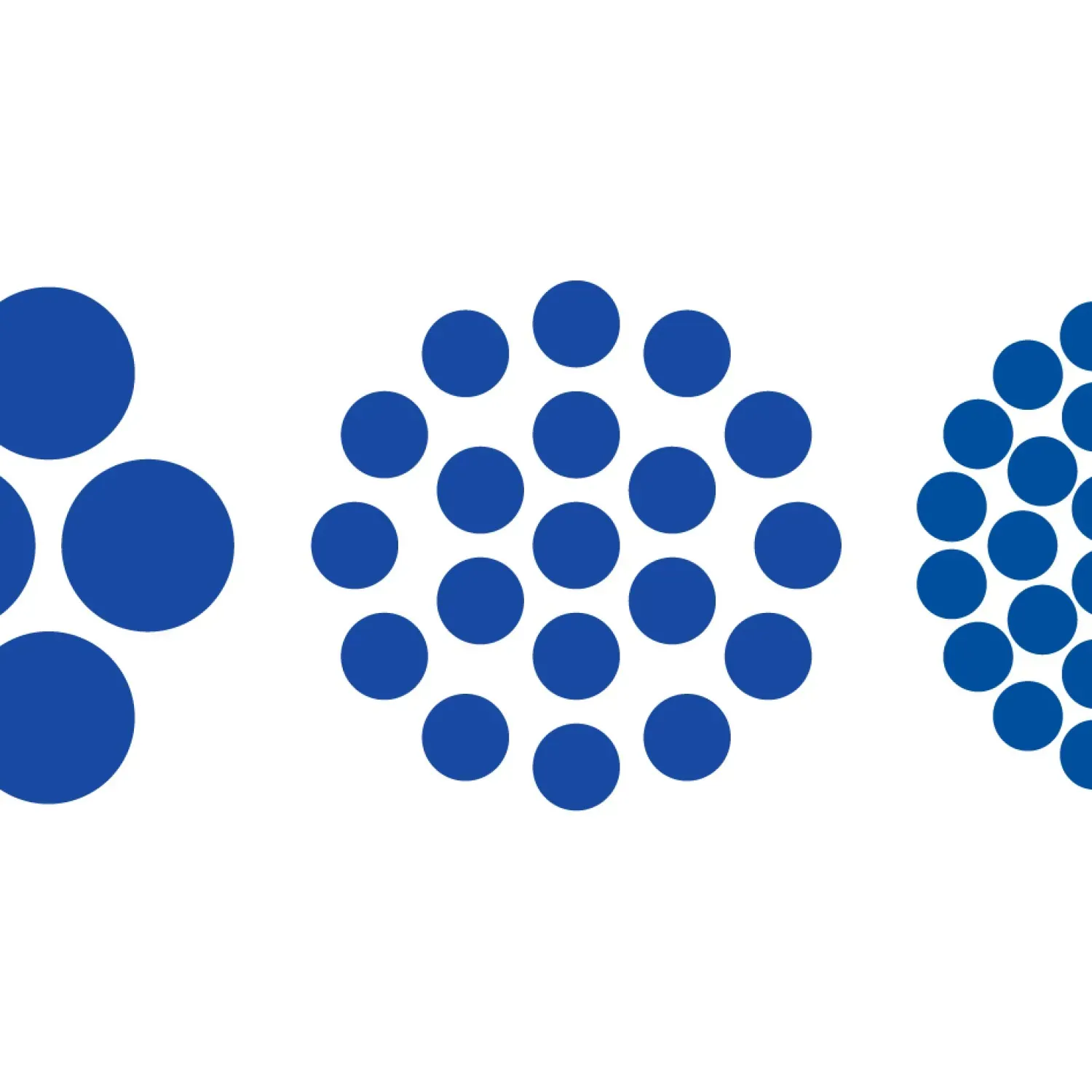

Ropes and rods
Single-strand ropes (1 × 7, 1 × 19, 1 × 37), wire ropes with steel core (6 × 7, 6 × 19, 6 × 36 + WC) or fibre core (6 × 36, 8 × 7 + FC), and stainless rods with optional threads and wrench flats.

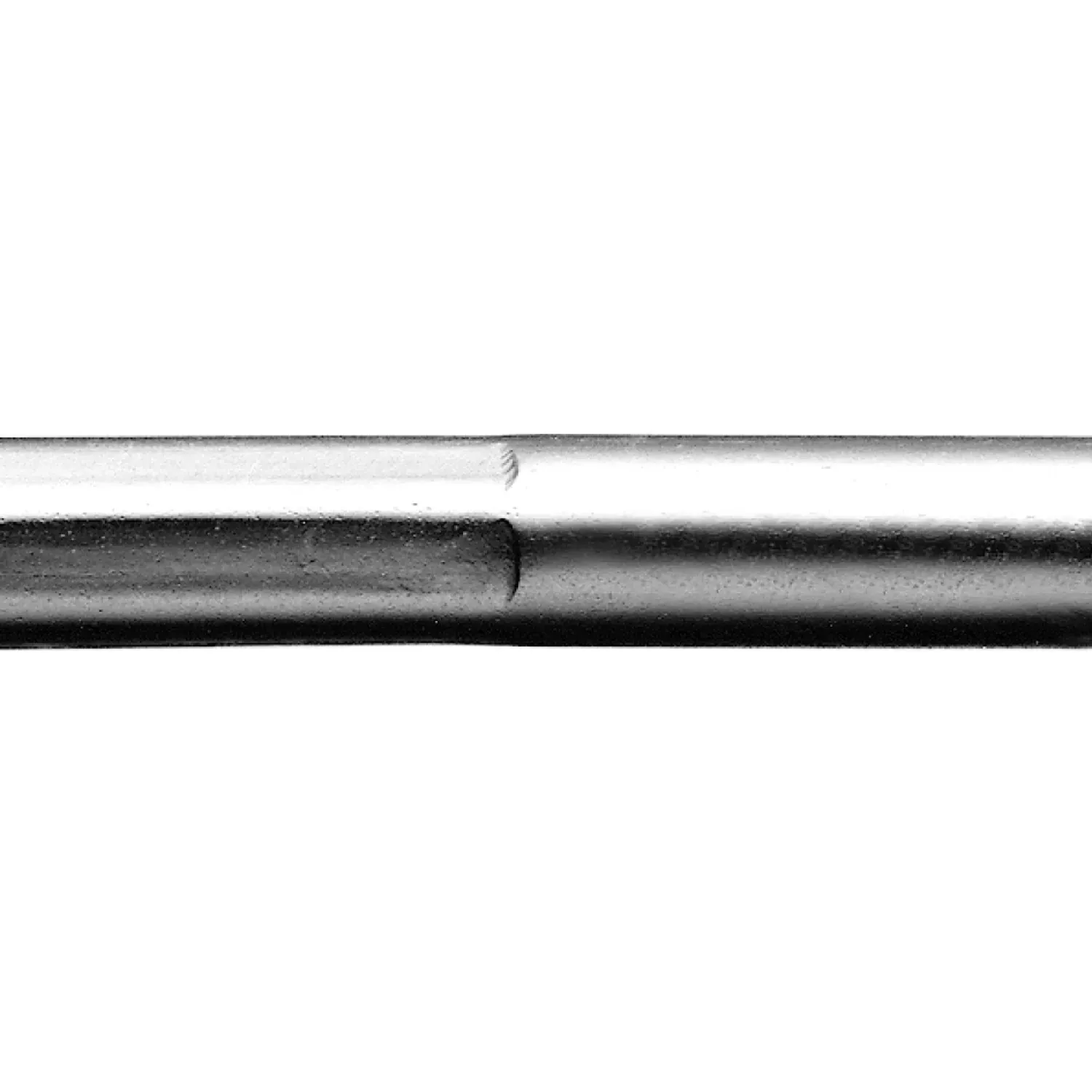

Threaded ends
Standard external and internal thread ends, swaged Vissline ends and Univiss Plus ends for neat, adjustable connections.

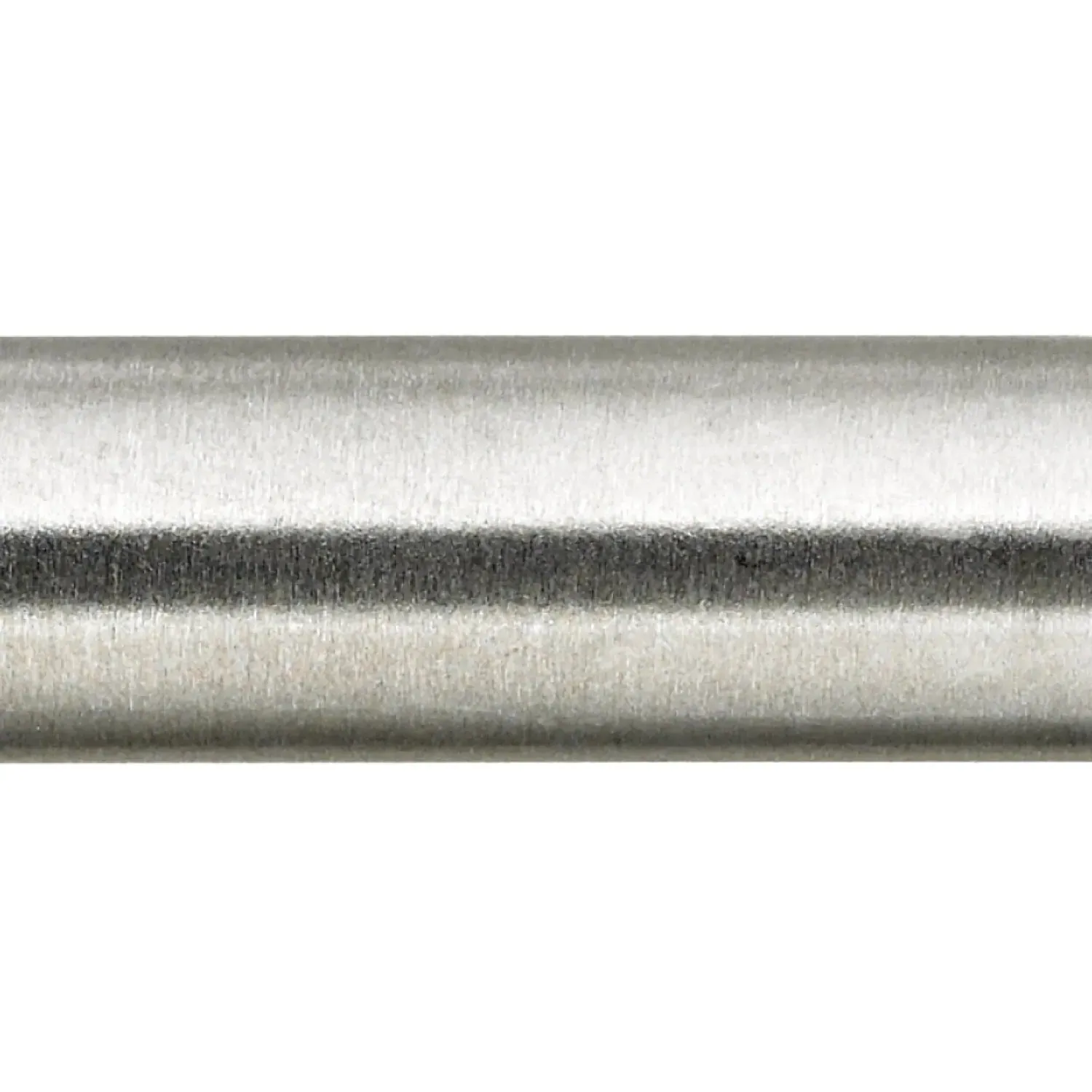

End stops and fittings
Radiused head ends, clamp rings, post fittings, eye ends and the Variball system to fix rope to almost any post or structure.

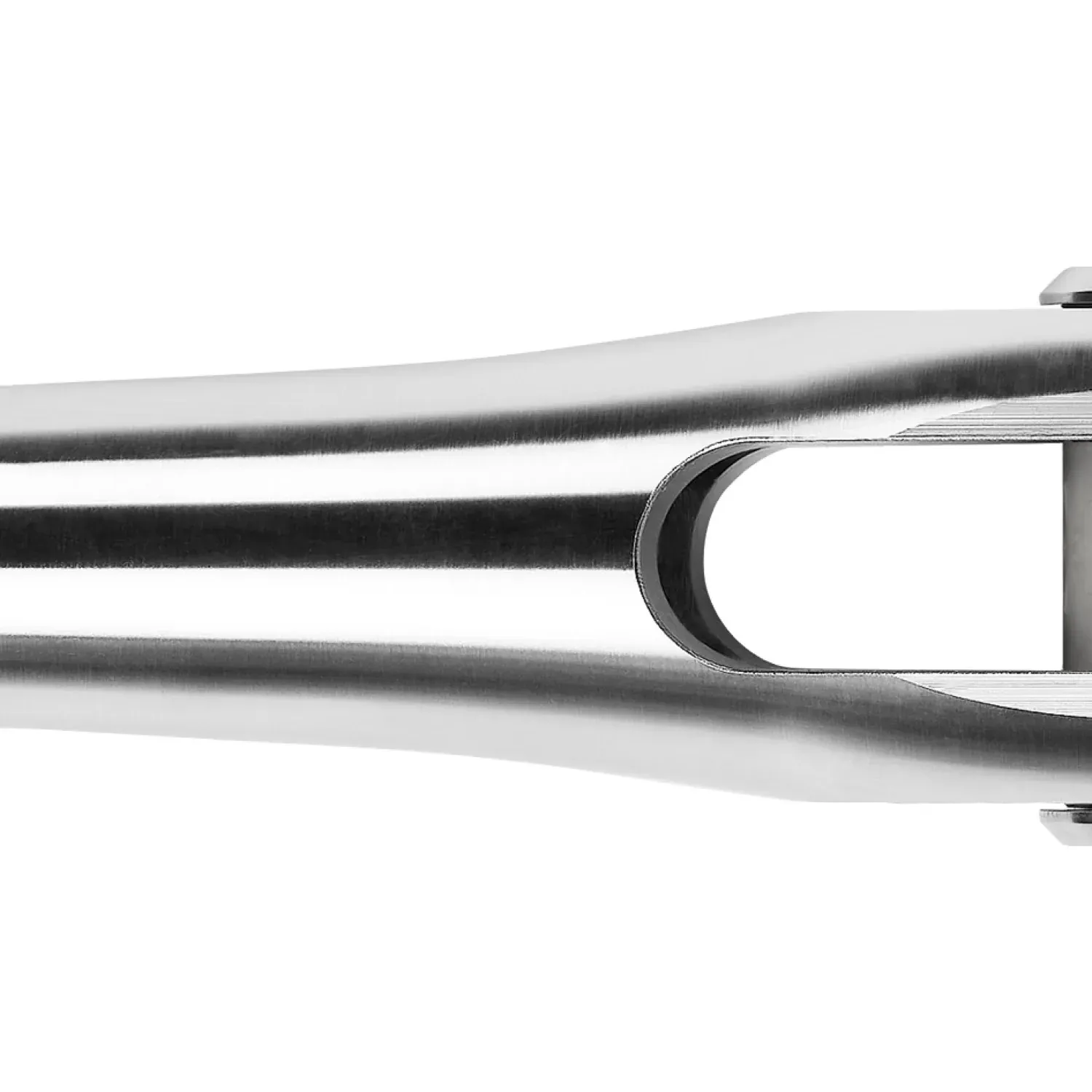

Turnbuckles, clevises and eye ends
Every assembly needs a way to tension it. Turnbuckles, clevises and eye ends connect to brackets and lugs; the Forte programme covers heavy loads.

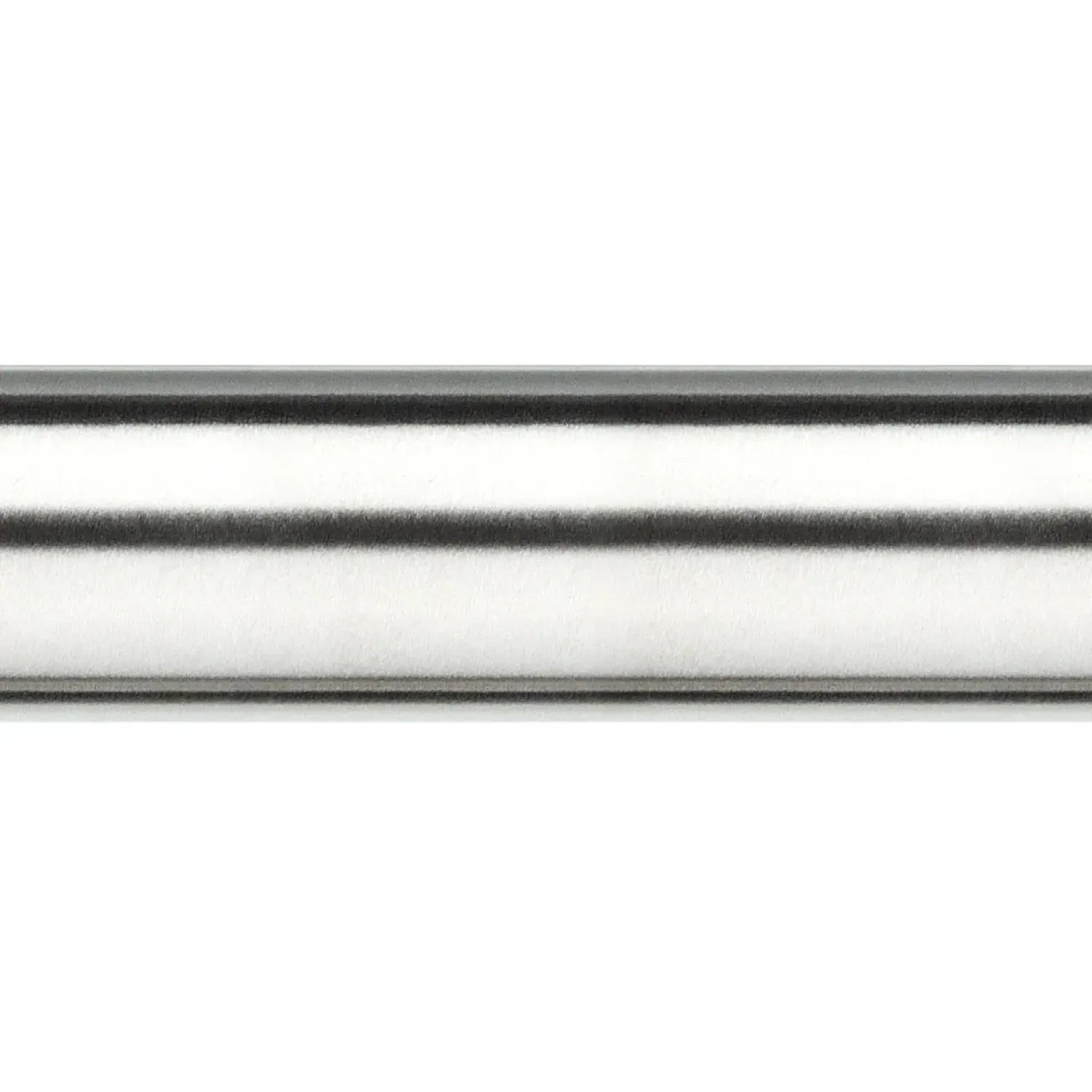

Anchoring systems
Anchor plates, spacers, tube brackets, welding lugs and angle sections to fix rope assemblies to concrete, timber or steel.

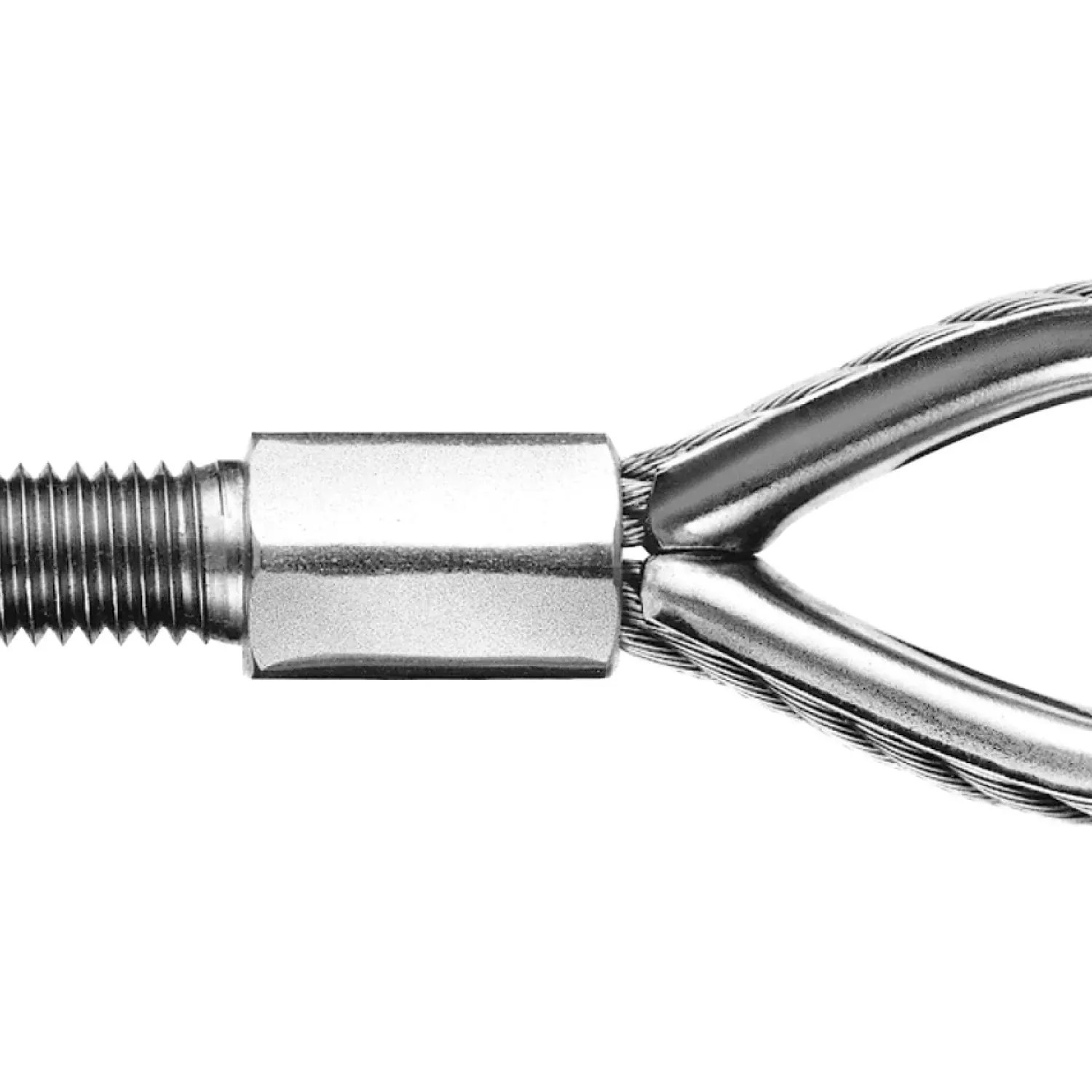

Assemblies and loops

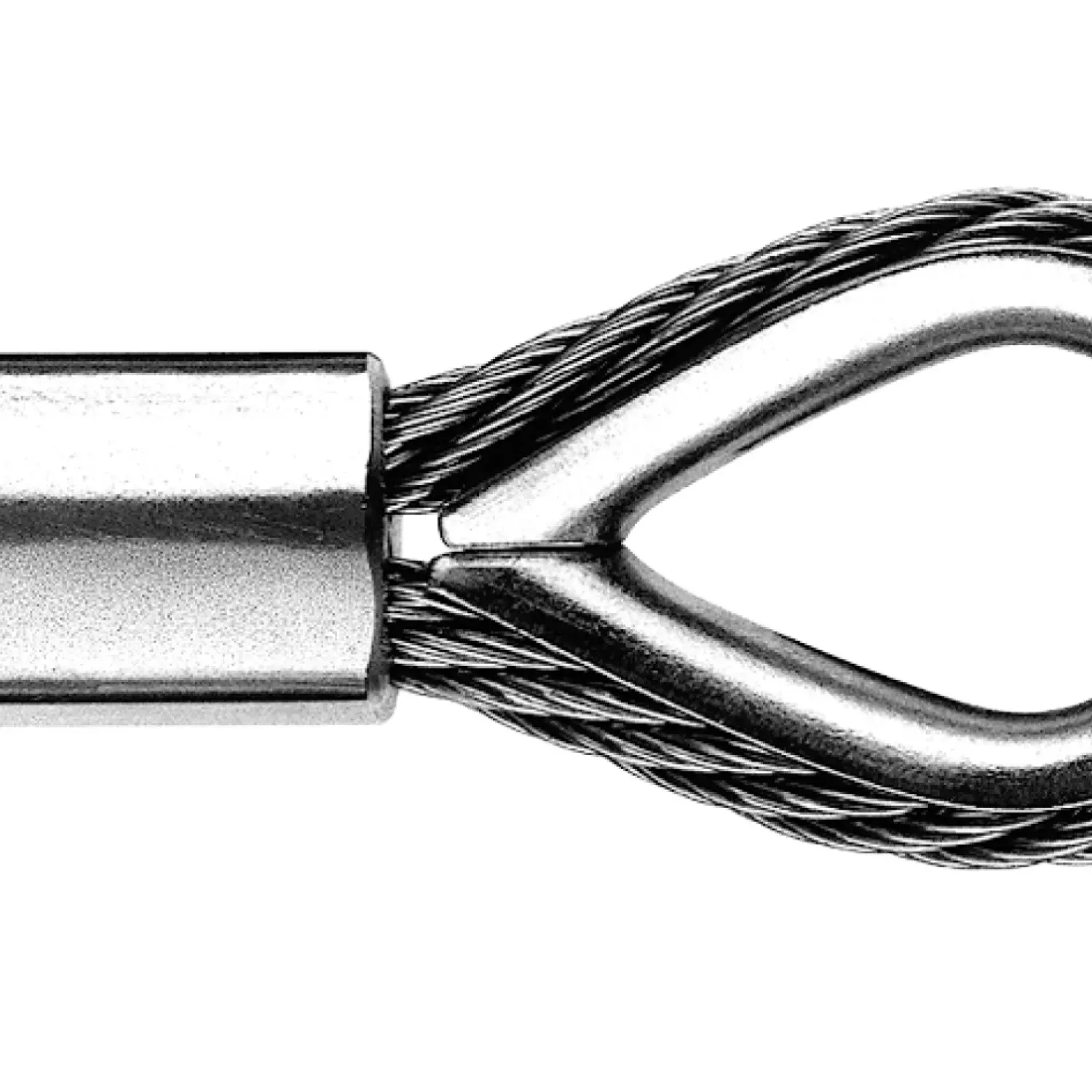

Ropes cut and assembled to length with internal or external threads, swaged loops with thimbles, and loop clamps, or supplied in bulk.

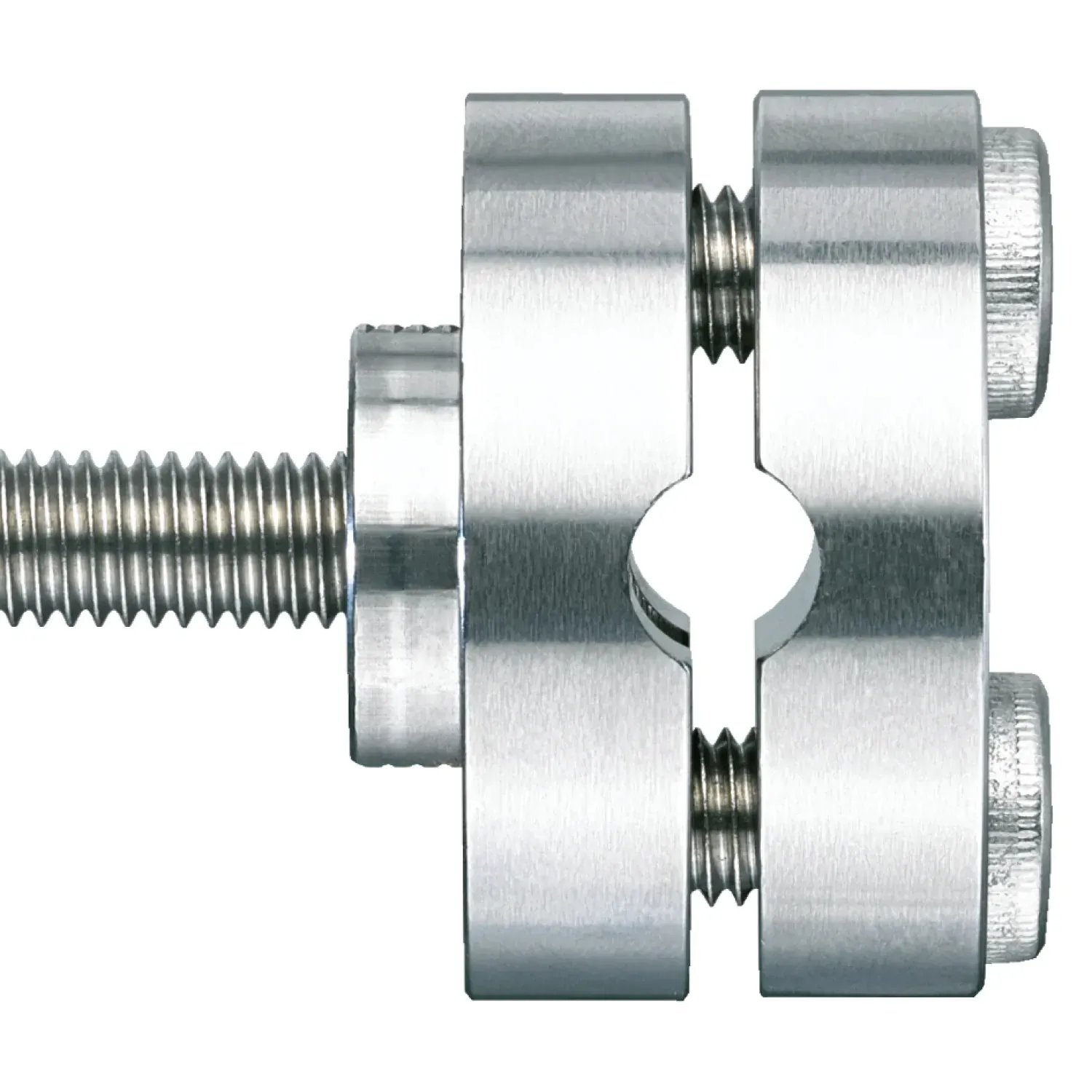

Rope clamps
Cross clamps and suspension-rope clamps join intersecting ropes (up to three) and fix suspension ropes to posts, making rope figures more stable.
Architectural Ropes Products.
Stainless steel strand ropes, wire ropes and rods, with accessories.
External and internal thread ends for ropes and rods.
End stops, radius heads and Variball end fittings.
Tensioning and connecting components, swaged or for self-assembly.
Anchor plates, spacers, brackets, clamp rings and holders.
Loops with threads, assembled loops and self-assembly loops.
Cross clamps, rope clamps and suspension-rope clamps.
Screws, shackles, hooks and rings, hand tools and battery-powered swaging tools.
Complete balustrade and rope sets for smaller projects.
Where It Works.
Standards & Compliance
- European Technical Assessment (ETA) for stainless steel tension components
- Production certified to EN 1090
- EU Declaration of Conformity
Shop the System.
Related Articles.

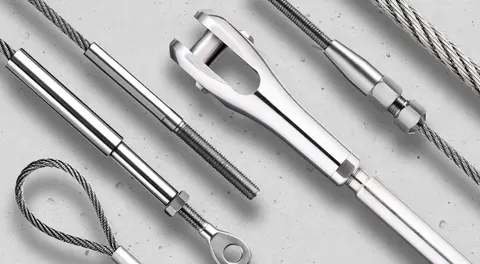

Architectural Rope Solutions in the Philippines: Elevating Design and Functionality
Architectural rope solutions are transforming modern design by blending technical functionality with aesthetic elegance. In the Philippines, these solutions are gaining popularity for their versatility and ability to enhance both…

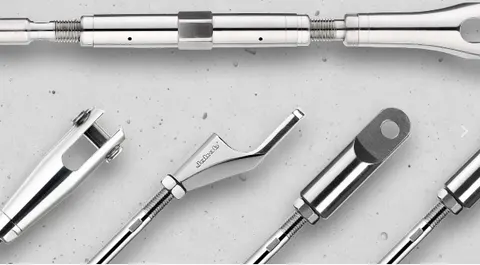

Jakob Rope Systems: Architectural Rope Solutions Revolutionizing Philippine Architecture
In the realm of modern architecture, the integration of innovative materials plays a pivotal role in pushing boundaries and achieving remarkable structural feats. Among these materials, stainless steel cables from…

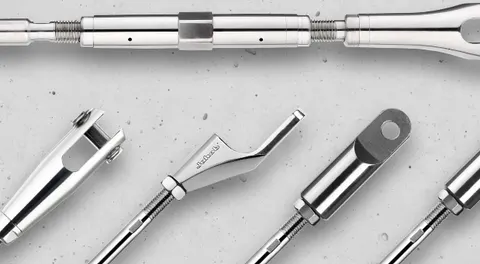

The Versatility and Excellence of Jakob Rope Systems
Wire ropes are an integral component in modern architecture, providing both functionality and aesthetic appeal. Jakob Rope Systems stands out as a leader in this field, offering high-quality wire ropes…

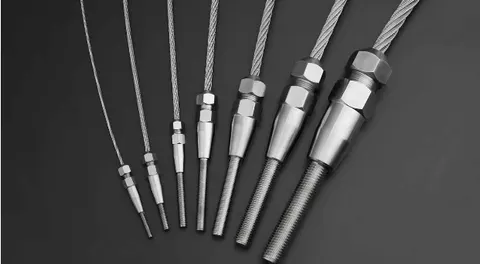

Architectural Wonders: Exploring Jakob Rope Systems’ Solutions in the Philippines
Architectural marvels are often crafted from the fusion of innovative design and reliable materials. Among these materials, architectural rope solutions play a pivotal role, offering both functional support and aesthetic…
Unveiling Architectural Wonders: Jakob Rope Systems in the Philippines
In the realm of modern architecture, the marriage of functionality and aesthetics often relies on innovative solutions. Among these, wire ropes stand out as versatile elements that enable the creation…

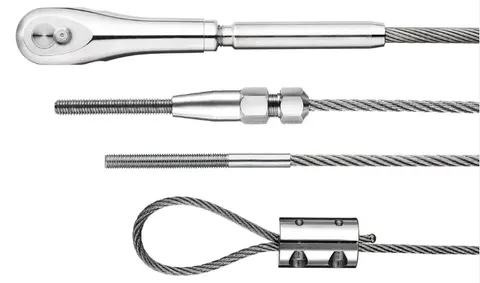

Maximizing Architectural Potential: A Guide to Jakob Rope Systems in the Philippines
In the realm of modern architectural design, the utilization of innovative materials and solutions is paramount to achieving stunning and functional structures. Among these materials, wire ropes have emerged as…
From Survey to Sign-Off.
Survey
We visit the site, assess the hazards and confirm what the structure can carry.
Design
Layouts, calculations and product selection matched to your site.
Supply
Certified equipment from Groxx Gears, KStrong, Tractel, Jakob Rope Systems, FBA Gomyl and our own fabrication.
Install & Test
Installation by 828 technicians, with load and pull-out testing.
Certify & Inspect
Handover documents, training and scheduled inspections.
Common Questions.
What diameters are available?
Stainless ropes from 0.62 mm up to 26 mm, and stainless rods from 5.3 mm to 21.9 mm. We help you choose the construction and diameter for your loads and the look you want.
Can ropes be supplied cut to length?
Yes. Assemblies can be swaged at the factory to exact lengths with threaded ends, loops or eye ends, or assembled on site with self-assembly fittings and battery-powered swaging tools.
Do stainless cables need maintenance?
Very little. Marine-grade stainless steel keeps its finish for a long time; we recommend periodic inspection of tension and fittings, which 828 can carry out.
Can you engineer the structure?
Yes. 828 works out the loads, rope sizes, anchor details and pretension, supplies the components and installs the system.
Every Structure Is Different.
Tell us about your site. Our engineers will specify the right system, confirm product compatibility across brands and send a quotation with full certification documentation.
