Jakob Rope Systems

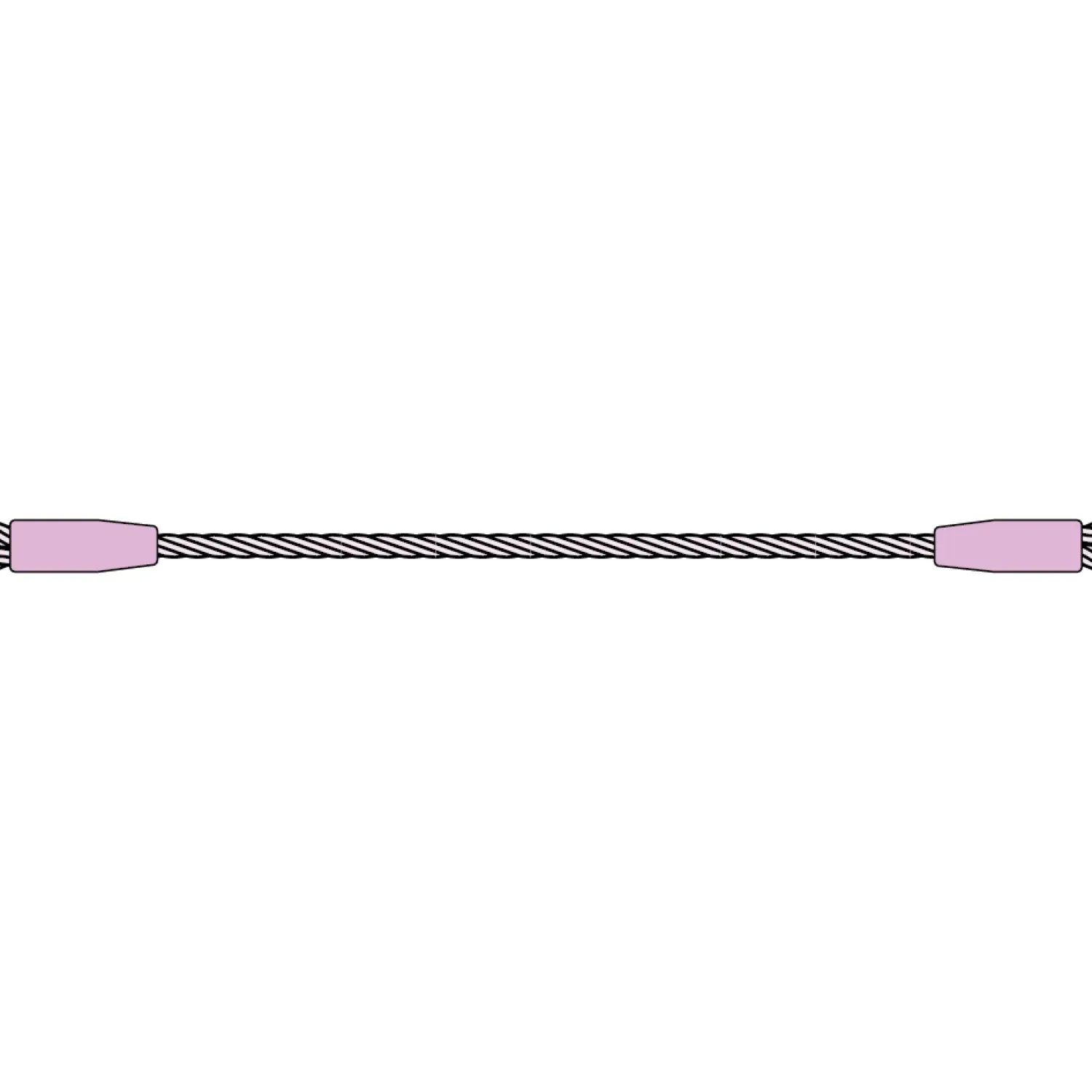

Wire rope sling loop without thimble on both ends compressed
Wire rope slings by Jakob Rope Systems, steel. 181 sizes, article no. 20101-0600-010 to 20101-3800-060.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20101 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Wire rope slings |
| Material | Steel |
| Surface | galvanized |
| Nominal strength | 1960 N/mm2 |
| Sizes available | 181 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20101
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | L | WLL kN | kg | Standard and Classification |
|---|---|---|---|---|---|
| 20101-0600-010 | 6 | 1 | 3.92 | 0.1740 | EN 13414-1 |
| 20101-0600-015 | 6 | 1.5 | 3.92 | 0.2390 | EN 13414-1 |
| 20101-0600-020 | 6 | 2 | 3.92 | 0.3040 | EN 13414-1 |
| 20101-0600-025 | 6 | 2.5 | 3.92 | 0.3690 | EN 13414-1 |
| 20101-0600-030 | 6 | 3 | 3.92 | 0.4340 | EN 13414-1 |
| 20101-0600-035 | 6 | 3.5 | 3.92 | 0.4990 | EN 13414-1 |
| 20101-0600-040 | 6 | 6 | 3.92 | 0.5640 | EN 13414-1 |
| 20101-0600-050 | 6 | 5 | 3.92 | 0.6940 | EN 13414-1 |
| 20101-0600-060 | 6 | 6 | 3.92 | 0.8240 | EN 13414-1 |
| 20101-0700-010 | 7 | 1 | 4.9 | 0.2230 | EN 13414-1 |
| 20101-0700-015 | 7 | 1.5 | 4.9 | 0.3030 | EN 13414-1 |
| 20101-0700-020 | 7 | 2 | 4.9 | 0.3830 | EN 13414-1 |
| 20101-0700-025 | 7 | 2.5 | 4.9 | 0.4630 | EN 13414-1 |
| 20101-0700-030 | 7 | 3 | 4.9 | 0.5430 | EN 13414-1 |
| 20101-0700-035 | 7 | 3.5 | 4.9 | 0.6230 | EN 13414-1 |
| 20101-0700-040 | 7 | 4 | 4.9 | 0.7030 | EN 13414-1 |
| 20101-0700-050 | 7 | 5 | 4.9 | 0.8630 | EN 13414-1 |
| 20101-0700-060 | 7 | 6 | 4.9 | 1.0230 | EN 13414-1 |
| 20101-0800-010 | 8 | 1 | 6.86 | 0.3210 | EN 13414-1 |
| 20101-0800-015 | 8 | 1.5 | 6.86 | 0.4310 | EN 13414-1 |
| 20101-0800-020 | 8 | 2 | 6.86 | 0.5410 | EN 13414-1 |
| 20101-0800-025 | 8 | 2.5 | 6.86 | 0.6510 | EN 13414-1 |
| 20101-0800-030 | 8 | 3 | 6.86 | 0.7610 | EN 13414-1 |
| 20101-0800-035 | 8 | 3.5 | 6.86 | 0.8710 | EN 13414-1 |
| 20101-0800-040 | 8 | 4 | 6.86 | 0.9810 | EN 13414-1 |
| 20101-0800-050 | 8 | 5 | 6.86 | 1.2010 | EN 13414-1 |
| 20101-0800-060 | 8 | 6 | 6.86 | 1.4210 | EN 13414-1 |
| 20101-0900-010 | 9 | 1 | 8.33 | 0.4100 | EN 13414-1 |
| 20101-0900-015 | 9 | 1.5 | 8.33 | 0.5450 | EN 13414-1 |
| 20101-0900-020 | 9 | 2 | 8.33 | 0.6800 | EN 13414-1 |
| 20101-0900-025 | 9 | 2.5 | 8.33 | 0.8150 | EN 13414-1 |
| 20101-0900-030 | 9 | 3 | 8.33 | 0.9500 | EN 13414-1 |
| 20101-0900-035 | 9 | 3.5 | 8.33 | 1.0850 | EN 13414-1 |
| 20101-0900-040 | 9 | 4 | 8.33 | 1.2200 | EN 13414-1 |
| 20101-0900-050 | 9 | 5 | 8.33 | 1.4900 | EN 13414-1 |
| 20101-0900-060 | 9 | 6 | 8.33 | 1.7600 | EN 13414-1 |
| 20101-1000-010 | 10 | 10 | 8.33 | 0.4980 | EN 13414-1 |
| 20101-1000-015 | 10 | 1.5 | 10.29 | 0.6580 | EN 13414-1 |
| 20101-1000-020 | 10 | 2 | 10.29 | 0.8180 | EN 13414-1 |
| 20101-1000-025 | 10 | 2.5 | 10.29 | 0.9780 | EN 13414-1 |
| 20101-1000-030 | 10 | 3 | 10.29 | 1.1380 | EN 13414-1 |
| 20101-1000-035 | 10 | 3.5 | 10.29 | 1.2980 | EN 13414-1 |
| 20101-1000-040 | 10 | 4 | 10.29 | 1.4580 | EN 13414-1 |
| 20101-1000-050 | 10 | 5 | 10.29 | 1.7780 | EN 13414-1 |
| 20101-1000-060 | 10 | 6 | 10.29 | 2.0980 | EN 13414-1 |
| 20101-1100-010 | 11 | 1 | 12.75 | 0.7230 | EN 13414-1 |
| 20101-1100-015 | 11 | 1.5 | 12.75 | 0.9430 | EN 13414-1 |
| 20101-1100-020 | 11 | 2 | 12.75 | 1.1630 | EN 13414-1 |
| 20101-1100-025 | 11 | 2.5 | 12.75 | 1.3830 | EN 13414-1 |
| 20101-1100-030 | 11 | 3 | 12.75 | 1.6030 | EN 13414-1 |
| 20101-1100-035 | 11 | 3.5 | 12.75 | 1.8230 | EN 13414-1 |
| 20101-1100-040 | 11 | 4 | 12.75 | 2.0430 | EN 13414-1 |
| 20101-1100-050 | 11 | 5 | 12.75 | 2.4830 | EN 13414-1 |
| 20101-1100-060 | 11 | 6 | 12.75 | 2.9230 | EN 13414-1 |
| 20101-1200-010 | 12 | 1 | 15.2 | 0.9140 | EN 13414-1 |
| 20101-1200-015 | 12 | 1.5 | 15.2 | 1.1840 | EN 13414-1 |
| 20101-1200-020 | 12 | 2 | 15.2 | 1.4540 | EN 13414-1 |
| 20101-1200-025 | 12 | 2.5 | 15.2 | 1.7240 | EN 13414-1 |
| 20101-1200-030 | 12 | 3 | 15.2 | 1.9940 | EN 13414-1 |
| 20101-1200-035 | 12 | 3.5 | 15.2 | 2.2640 | EN 13414-1 |
| 20101-1200-040 | 12 | 4 | 15.2 | 2.5340 | EN 13414-1 |
| 20101-1200-050 | 12 | 5 | 15.2 | 3.0740 | EN 13414-1 |
| 20101-1200-060 | 12 | 6 | 15.2 | 3.6140 | EN 13414-1 |
| 20101-1300-010 | 13 | 1 | 17.65 | 1.1140 | EN 13414-1 |
| 20101-1300-015 | 13 | 1.5 | 17.65 | 1.4340 | EN 13414-1 |
| 20101-1300-020 | 13 | 2 | 17.65 | 1.7540 | EN 13414-1 |
| 20101-1300-025 | 13 | 2.5 | 17.65 | 2.0740 | EN 13414-1 |
| 20101-1300-030 | 13 | 3 | 17.65 | 2.3940 | EN 13414-1 |
| 20101-1300-035 | 13 | 3.5 | 17.65 | 2.7140 | EN 13414-1 |
| 20101-1300-040 | 13 | 4 | 17.65 | 3.0340 | EN 13414-1 |
| 20101-1300-050 | 13 | 5 | 17.65 | 3.6740 | EN 13414-1 |
| 20101-1300-060 | 13 | 6 | 17.65 | 4.3140 | EN 13414-1 |
| 20101-1400-010 | 14 | 1 | 20.78 | 1.3260 | EN 13414-1 |
| 20101-1400-015 | 14 | 1.5 | 20.78 | 1.6960 | EN 13414-1 |
| 20101-1400-020 | 14 | 2 | 20.78 | 2.0660 | EN 13414-1 |
| 20101-1400-025 | 14 | 2.5 | 20.78 | 2.4360 | EN 13414-1 |
| 20101-1400-030 | 14 | 3 | 20.78 | 2.8060 | EN 13414-1 |
| 20101-1400-035 | 14 | 3.5 | 20.78 | 3.1760 | EN 13414-1 |
| 20101-1400-040 | 14 | 4 | 20.78 | 3.5460 | EN 13414-1 |
| 20101-1400-050 | 14 | 5 | 20.78 | 4.2860 | EN 13414-1 |
| 20101-1400-060 | 14 | 6 | 20.78 | 5.0260 | EN 13414-1 |
| 20101-1600-010 | 16 | 1 | 26.47 | 1.8620 | EN 13414-1 |
| 20101-1600-015 | 16 | 1.5 | 26.47 | 2.3470 | EN 13414-1 |
| 20101-1600-020 | 16 | 2 | 26.47 | 2.8320 | EN 13414-1 |
| 20101-1600-025 | 16 | 2.5 | 26.47 | 3.3170 | EN 13414-1 |
| 20101-1600-030 | 16 | 3 | 26.47 | 3.8020 | EN 13414-1 |
| 20101-1600-035 | 16 | 3.5 | 26.47 | 4.2870 | EN 13414-1 |
| 20101-1600-040 | 16 | 4 | 26.47 | 4.7720 | EN 13414-1 |
| 20101-1600-050 | 16 | 5 | 26.47 | 5.7420 | EN 13414-1 |
| 20101-1600-060 | 16 | 6 | 26.47 | 6.7120 | EN 13414-1 |
| 20101-1800-010 | 18 | 1 | 33.33 | 2.4900 | EN 13414-1 |
| 20101-1800-015 | 18 | 1.5 | 33.33 | 3.1050 | EN 13414-1 |
| 20101-1800-020 | 18 | 2 | 33.33 | 3.7200 | EN 13414-1 |
| 20101-1800-025 | 18 | 2.5 | 33.33 | 4.3350 | EN 13414-1 |
| 20101-1800-030 | 18 | 3 | 33.33 | 4.9500 | EN 13414-1 |
| 20101-1800-035 | 18 | 3.5 | 33.33 | 5.5650 | EN 13414-1 |
| 20101-1800-040 | 18 | 4 | 33.33 | 6.1800 | EN 13414-1 |
| 20101-1800-050 | 18 | 5 | 33.33 | 7.4100 | EN 13414-1 |
| 20101-1800-060 | 18 | 6 | 33.33 | 8.6400 | EN 13414-1 |
| 20101-2000-010 | 20 | 1 | 42.65 | 3.2410 | EN 13414-1 |
| 20101-2000-015 | 20 | 1.5 | 42.65 | 4.0010 | EN 13414-1 |
| 20101-2000-020 | 20 | 2 | 42.65 | 4.7610 | EN 13414-1 |
| 20101-2000-025 | 20 | 2.5 | 42.65 | 5.5210 | EN 13414-1 |
| 20101-2000-030 | 20 | 3 | 42.65 | 6.2810 | EN 13414-1 |
| 20101-2000-035 | 20 | 3.5 | 42.65 | 7.0410 | EN 13414-1 |
| 20101-2000-040 | 20 | 4 | 42.65 | 7.8010 | EN 13414-1 |
| 20101-2000-050 | 20 | 5 | 42.65 | 9.3210 | EN 13414-1 |
| 20101-2000-060 | 20 | 6 | 42.65 | 10.8410 | EN 13414-1 |
| 20101-2200-010 | 22 | 1 | 50.98 | 4.1510 | EN 13414-1 |
| 20101-2200-015 | 22 | 1.5 | 50.98 | 5.0710 | EN 13414-1 |
| 20101-2200-020 | 22 | 2 | 50.98 | 5.9910 | EN 13414-1 |
| 20101-2200-025 | 22 | 2.5 | 50.98 | 6.9110 | EN 13414-1 |
| 20101-2200-030 | 22 | 3 | 50.98 | 7.8310 | EN 13414-1 |
| 20101-2200-035 | 22 | 3.5 | 50.98 | 8.7510 | EN 13414-1 |
| 20101-2200-040 | 22 | 4 | 50.98 | 9.6710 | EN 13414-1 |
| 20101-2200-050 | 22 | 5 | 50.98 | 11.5110 | EN 13414-1 |
| 20101-2200-060 | 22 | 6 | 50.98 | 13.3510 | EN 13414-1 |
| 20101-2400-010 | 24 | 1 | 61.77 | 5.2210 | EN 13414-1 |
| 20101-2400-015 | 24 | 1.5 | 61.77 | 6.3160 | EN 13414-1 |
| 20101-2400-020 | 24 | 2 | 61.77 | 7.4110 | EN 13414-1 |
| 20101-2400-025 | 24 | 2.5 | 61.77 | 8.5060 | EN 13414-1 |
| 20101-2400-030 | 24 | 3 | 61.77 | 9.6010 | EN 13414-1 |
| 20101-2400-035 | 24 | 3.5 | 61.77 | 10.6960 | EN 13414-1 |
| 20101-2400-040 | 24 | 4 | 61.77 | 11.7910 | EN 13414-1 |
| 20101-2400-050 | 24 | 5 | 61.77 | 13.9810 | EN 13414-1 |
| 20101-2400-060 | 24 | 6 | 61.77 | 16.1710 | EN 13414-1 |
| 20101-2600-015 | 26 | 1.5 | 70.59 | 7.5300 | EN 13414-1 |
| 20101-2600-020 | 26 | 2 | 70.59 | 8.8150 | EN 13414-1 |
| 20101-2600-025 | 26 | 2.5 | 70.59 | 10.1000 | EN 13414-1 |
| 20101-2600-030 | 26 | 3 | 70.59 | 11.3850 | EN 13414-1 |
| 20101-2600-035 | 26 | 3.5 | 70.59 | 12.6700 | EN 13414-1 |
| 20101-2600-040 | 26 | 4 | 70.59 | 13.9550 | EN 13414-1 |
| 20101-2600-050 | 26 | 5 | 70.59 | 16.5250 | EN 13414-1 |
| 20101-2600-060 | 26 | 6 | 70.59 | 19.0950 | EN 13414-1 |
| 20101-2800-015 | 28 | 1.5 | 82.35 | 8.6210 | EN 13414-1 |
| 20101-2800-020 | 28 | 2 | 82.35 | 10.0160 | EN 13414-1 |
| 20101-2800-025 | 28 | 2.5 | 82.35 | 11.4110 | EN 13414-1 |
| 20101-2800-030 | 28 | 3 | 82.35 | 12.8060 | EN 13414-1 |
| 20101-2800-035 | 28 | 3.5 | 82.35 | 14.2010 | EN 13414-1 |
| 20101-2800-040 | 28 | 4 | 82.35 | 15.5960 | EN 13414-1 |
| 20101-2800-050 | 28 | 5 | 82.35 | 18.3860 | EN 13414-1 |
| 20101-2800-060 | 28 | 6 | 82.35 | 21.1760 | EN 13414-1 |
| 20101-3000-015 | 30 | 1.5 | 82.35 | 10.3350 | EN 13414-1 |
| 20101-3000-020 | 30 | 2 | 82.35 | 11.9600 | EN 13414-1 |
| 20101-3000-025 | 30 | 2,5 | 82.35 | 13.5850 | EN 13414-1 |
| 20101-3000-030 | 30 | 3 | 82.35 | 15.2100 | EN 13414-1 |
| 20101-3000-035 | 30 | 3,5 | 82.35 | 16.8350 | EN 13414-1 |
| 20101-3000-040 | 30 | 4 | 82.35 | 18.4600 | EN 13414-1 |
| 20101-3000-050 | 30 | 5 | 82.35 | 21.7100 | EN 13414-1 |
| 20101-3000-060 | 30 | 6 | 82.35 | 24.9600 | EN 13414-1 |
| 20101-3200-015 | 32 | 1.5 | 108 | 12.0090 | EN 13414-1 |
| 20101-3200-020 | 32 | 2 | 108 | 13.8340 | EN 13414-1 |
| 20101-3200-025 | 32 | 2.5 | 108 | 15.6590 | EN 13414-1 |
| 20101-3200-030 | 32 | 3 | 108 | 17.4840 | EN 13414-1 |
| 20101-3200-035 | 32 | 3.5 | 108 | 19.3090 | EN 13414-1 |
| 20101-3200-040 | 32 | 4 | 108 | 21.1340 | EN 13414-1 |
| 20101-3200-050 | 32 | 5 | 108 | 24.7840 | EN 13414-1 |
| 20101-3200-060 | 32 | 6 | 108 | 28.4340 | EN 13414-1 |
| 20101-3400-015 | 34 | 1.5 | 138 | 13.8360 | in compliance with EN 13414-1 |
| 20101-3400-020 | 34 | 2 | 138 | 15.9010 | in compliance with EN 13414-1 |
| 20101-3400-025 | 34 | 2.5 | 138 | 17.9660 | in compliance with EN 13414-1 |
| 20101-3400-030 | 34 | 3 | 138 | 20.0310 | in compliance with EN 13414-1 |
| 20101-3400-035 | 34 | 3.5 | 138 | 22.0960 | in compliance with EN 13414-1 |
| 20101-3400-040 | 34 | 4 | 138 | 24.1610 | in compliance with EN 13414-1 |
| 20101-3400-050 | 34 | 5 | 138 | 28.2910 | in compliance with EN 13414-1 |
| 20101-3400-060 | 34 | 6 | 138 | 32.4210 | in compliance with EN 13414-1 |
| 20101-3600-015 | 36 | 1.5 | 137 | 15.6640 | EN 13414-1 |
| 20101-3600-020 | 36 | 2 | 137 | 17.9540 | EN 13414-1 |
| 20101-3600-025 | 36 | 2.5 | 137 | 20.2440 | EN 13414-1 |
| 20101-3600-030 | 36 | 3 | 137 | 22.5340 | EN 13414-1 |
| 20101-3600-035 | 32 | 3.5 | 137 | 24.8240 | EN 13414-1 |
| 20101-3600-040 | 36 | 4 | 137 | 27.1140 | EN 13414-1 |
| 20101-3600-050 | 36 | 5 | 137 | 31.6940 | EN 13414-1 |
| 20101-3600-060 | 36 | 6 | 137 | 36.2740 | EN 13414-1 |
| 20101-3800-020 | 38 | 2 | 148 | 20.5940 | EN 13414-1 |
| 20101-3800-025 | 38 | 2.5 | 148 | 23.1240 | EN 13414-1 |
| 20101-3800-030 | 38 | 3 | 148 | 25.6540 | EN 13414-1 |
| 20101-3800-035 | 38 | 3.5 | 148 | 28.1840 | EN 13414-1 |
| 20101-3800-040 | 38 | 4 | 148 | 30.7140 | EN 13414-1 |
| 20101-3800-050 | 38 | 5 | 148 | 35.7740 | EN 13414-1 |
| 20101-3800-060 | 38 | 6 | 148 | 40.8340 | EN 13414-1 |
- According EN 13414-1
- Made of galvanized, single-layer circular wire strand rope with fiber core
- Safety factor 5
- Other lengths on request
- Working load limit see also table comply with EN 13414-11
Customer Reviews
Be the First to Review.
Used this product on a project? Tell other buyers how it performed.
Need It Installed?
Overhead, Gantry & Jib Cranes.
Overhead, gantry and jib cranes specified for your loads and duty cycle — supplied, installed, load tested and maintained by 828.
Related Products.
All Wire Rope, Chain & Rigging →Get a Quote.
Add this product to your quote list or talk to an engineer about the complete system.
