Jakob Rope Systems

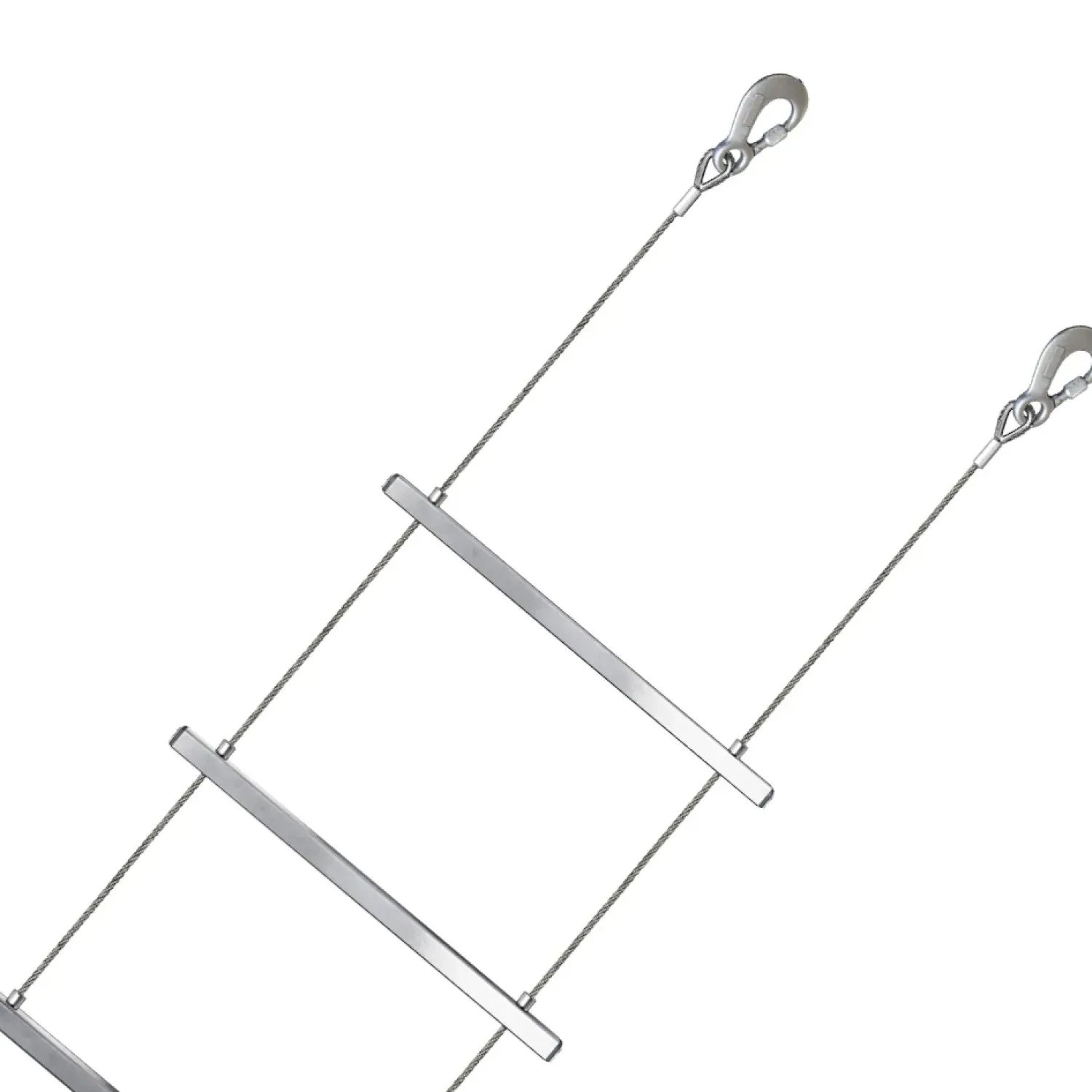

wire rope ladder
Accessories by Jakob Rope Systems, steel. 2 sizes, article no. 60840-50 to 60840-50-00.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 60840-50 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Accessories |
| Material | Steel |
| Surface | galvanized |
| Sizes available | 2 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 60840-50
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | WLL kN | kg | Standard and Classification |
|---|---|---|---|---|
| 60840-50 | 5 | 2.3 | 1.5000 | DIN 5290 |
| 60840-50-00 | 5 | 2.3 | 1.4000 | EN 361/EN 355 |
- The wire rope ladder consists of head section 60840-50 and number of meters 60840-50-00
- Max. Length 18 m, with DIN 5290 safety hook at the top,
- closed at the bottom, aluminum rungs with corrugated profile,
- width 45 cm, spacing 28 cm
