Wire rope clip Stainless steel

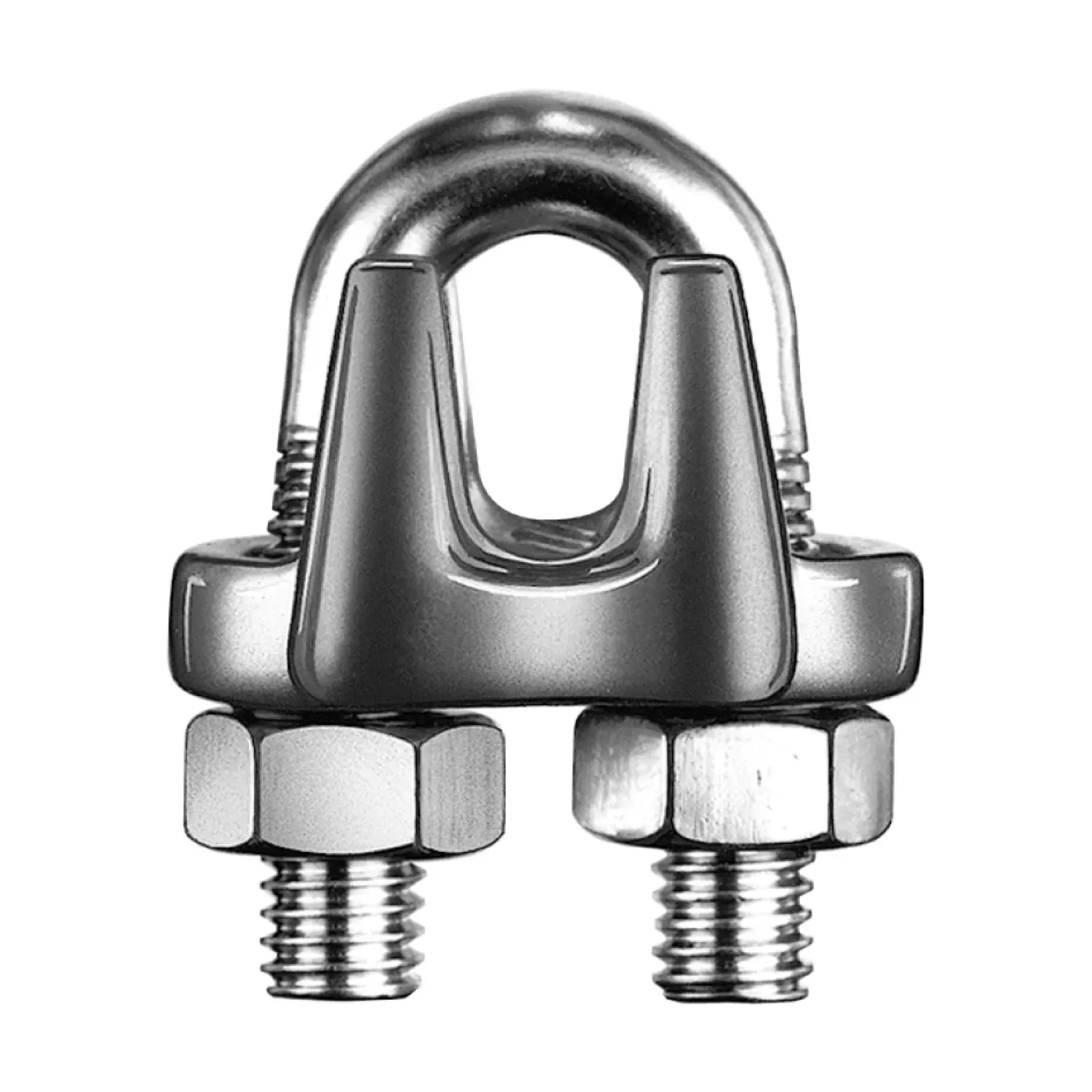

Rope clamps by Jakob Rope Systems, stainless steel AISI 316 (1.4401). 9 sizes, article no. 30800-0200 to 30800-1600.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30800 |
| Category | Architectural Cables & Fittings |
| Product family | Rope clamps |
| Material | Stainless steel 316 |
| Surface | polished |
| Nominal strength | A4 |
| Sizes available | 9 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30800
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | a | b1 | b2 | b3 | b4 | k | kg |
|---|---|---|---|---|---|---|---|---|
| 30800-0200 | 2 | M3 | 17 | 10 | 15 | 4 | 15 | 0.0100 |
| 30800-0300 | 3 | M3 | 21 | 12 | 16 | 5 | 15 | 0.0100 |
| 30800-0400 | 4 | M4 | 24 | 13 | 19 | 6 | 18 | 0.0200 |
| 30800-0500 | 5 | M5 | 27 | 16 | 22 | 7 | 21 | 0.0300 |
| 30800-0600 | 6 | M6 | 33 | 17 | 28 | 8 | 23 | 0.0400 |
| 30800-0800 | 8 | M8 | 41 | 20 | 35 | 10 | 28 | 0.0800 |
| 30800-1000 | 10 | M10 | 51 | 23 | 45 | 12 | 36 | 0.1500 |
| 30800-1200 | 12 | M12 | 63 | 28 | 50 | 14 | 38 | 0.2300 |
| 30800-1600 | 16 | M14 | 79 | 35 | 60 | 18 | 47 | 0.4100 |
- The number of required clamps depends on the rope diameter.
- The distance X between the clips should be at least 1.5 times but no greater than 3 times dimension k.
- The user is responsible for checking the correct installation and the proper rope diameter. Please refer to the instructions in the installation manual.
- Clips should be retightened after load has been applied to the rope as this will slightly decrease the rope diameter.
- Loop connections with clips usually attain about 80 % of the minimal rope breaking strength.
