Jakob Rope Systems

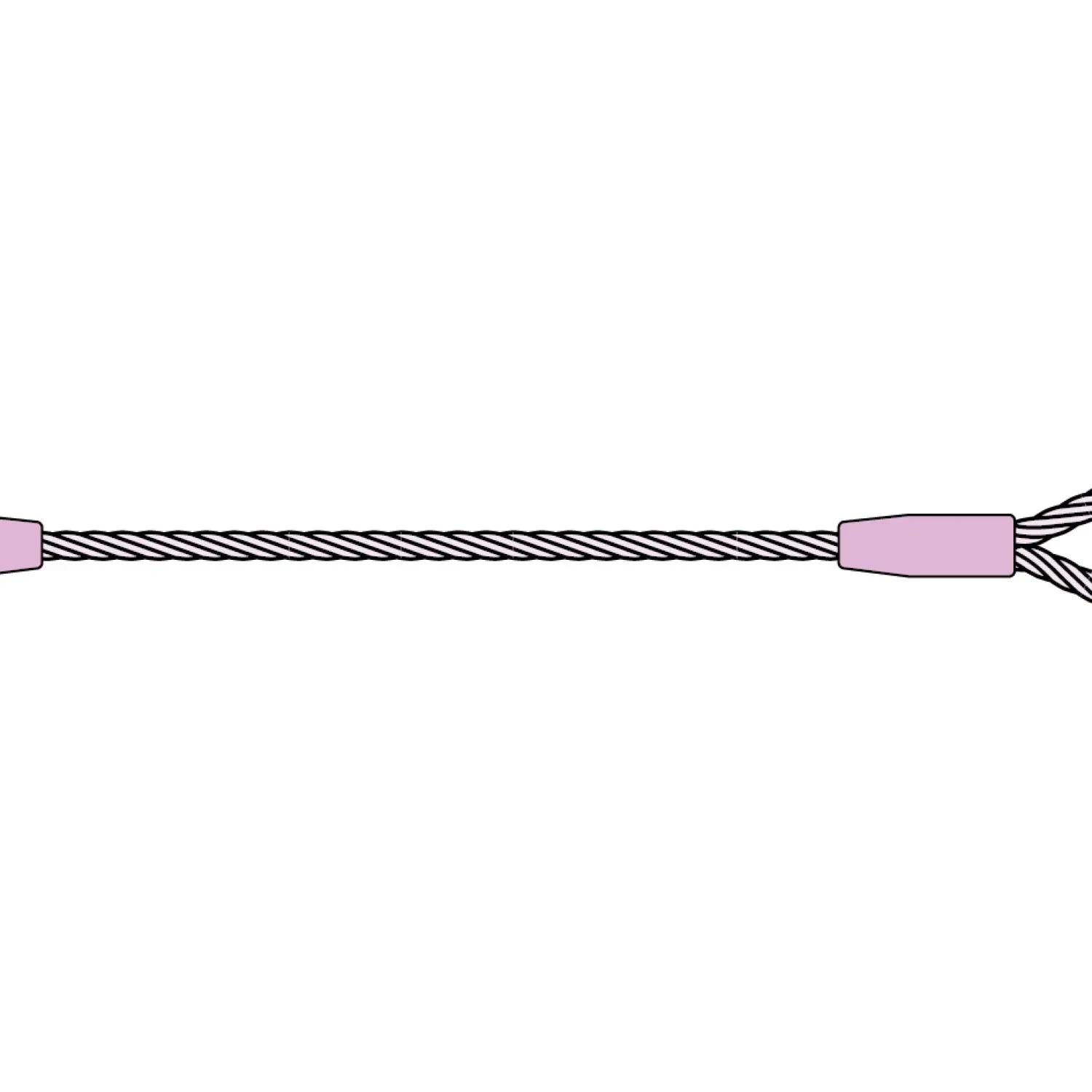

Welaki sling with locking device swaged
Wire rope slings by Jakob Rope Systems, steel. 16 sizes, article no. 20120-1400-010 to 20120-1800-025.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20120 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Wire rope slings |
| Material | Steel |
| Surface | galvanized |
| Standard | EN13414-1 |
| Nominal strength | 1960 N/mm2 |
| Sizes available | 16 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20120
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | L | WLL kN | kg |
|---|---|---|---|---|
| 20120-1400-010 | 14 | 1 | 20.78 | - |
| 20120-1400-015 | 14 | 1.5 | 20.78 | - |
| 20120-1400-020 | 14 | 2 | 20.78 | - |
| 20120-1400-025 | 14 | 2.5 | 20.78 | - |
| 20120-1500-010 | 15 | 1 | 23.53 | - |
| 20120-1500-015 | 15 | 1.5 | 23.53 | - |
| 20120-1500-020 | 15 | 2 | 23.53 | - |
| 20120-1500-025 | 15 | 2.5 | 23.53 | - |
| 20120-1600-010 | 16 | 1 | 26.47 | - |
| 20120-1600-015 | 16 | 1.5 | 26.47 | - |
| 20120-1600-020 | 16 | 2 | 26.47 | - |
| 20120-1600-025 | 16 | 2.5 | 26.47 | - |
| 20120-1800-010 | 18 | 1 | 33.33 | - |
| 20120-1800-015 | 18 | 1.5 | 33.33 | - |
| 20120-1800-020 | 18 | 2 | 33.33 | - |
| 20120-1800-025 | 18 | 2.5 | 33.33 | - |
- Loop with Welaki thimble at one end, loop without thimble for bolt of 40 mm Ø at the other end, with locking device
- Safety factor 5
- Other lengths on request
