Jakob Rope Systems

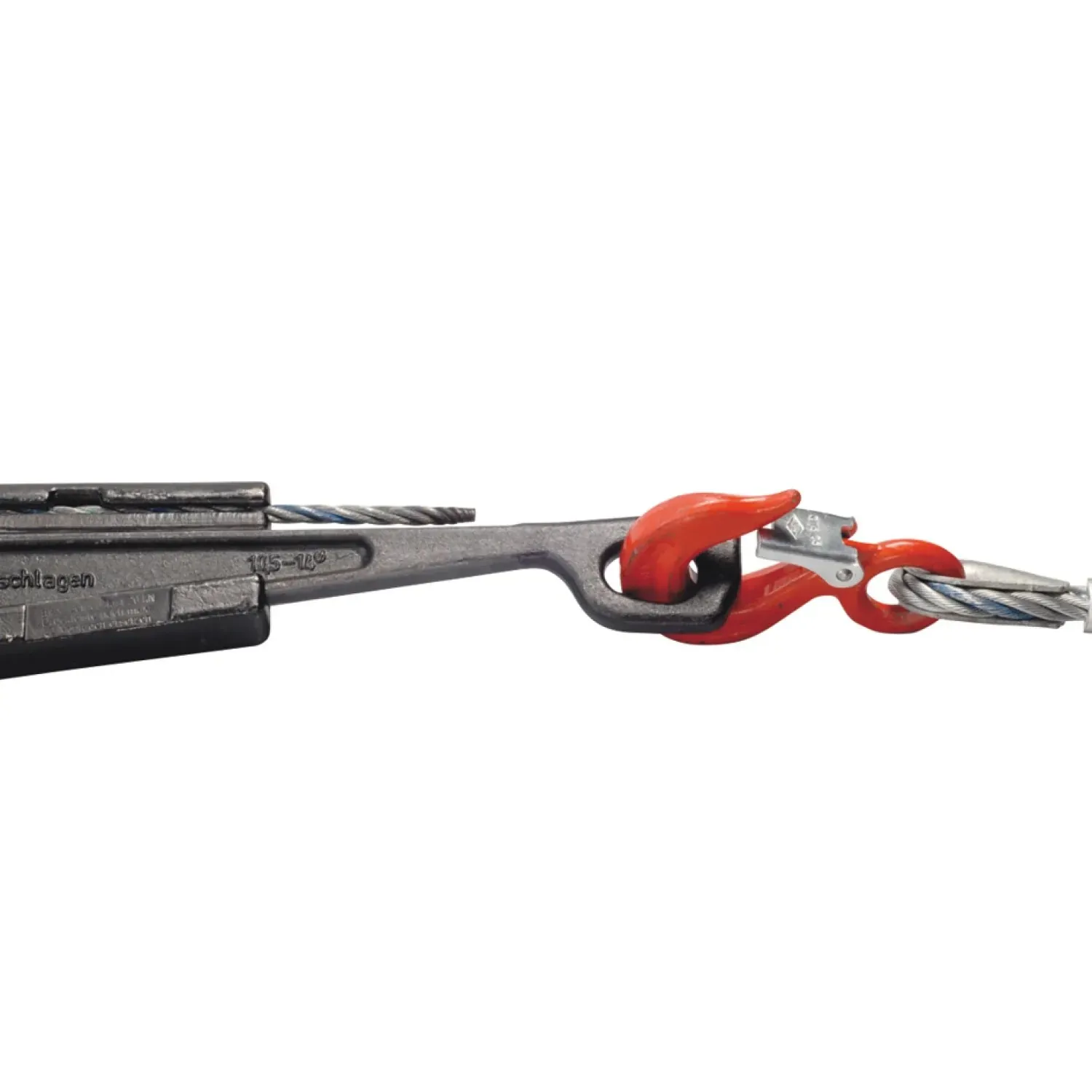

Wedge-type clamping tool type Coni-Klam
Tools by Jakob Rope Systems. 3 sizes, article no. 060.478.002 to 060.478.004.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 060.478.002 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Tools |
| Sizes available | 3 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 060.478.002
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Typ | ø d | WLL kN | kg |
|---|---|---|---|---|
| 060.478.002 | EC 10 | 5-10 | 10 | 1.2000 |
| 060.478.003 | EC 14 | 10-14 | 20 | 2.6000 |
| 060.478.004 | EC 21 | 14-21 | 32 | 5.4000 |
- The Coni-Klam wedge clamping tools are simple and practical devices for tensioning and catching the ropes when pulling. The rope is held by parallel sliding clamping jaws held in place. Coni-Klam tensioning tools are self-tensioning, the holding force always adjusts itself according to the tensile force force. The mechanism is released by knocking back the wedge.
- Safety factor 3
