Jakob Rope Systems

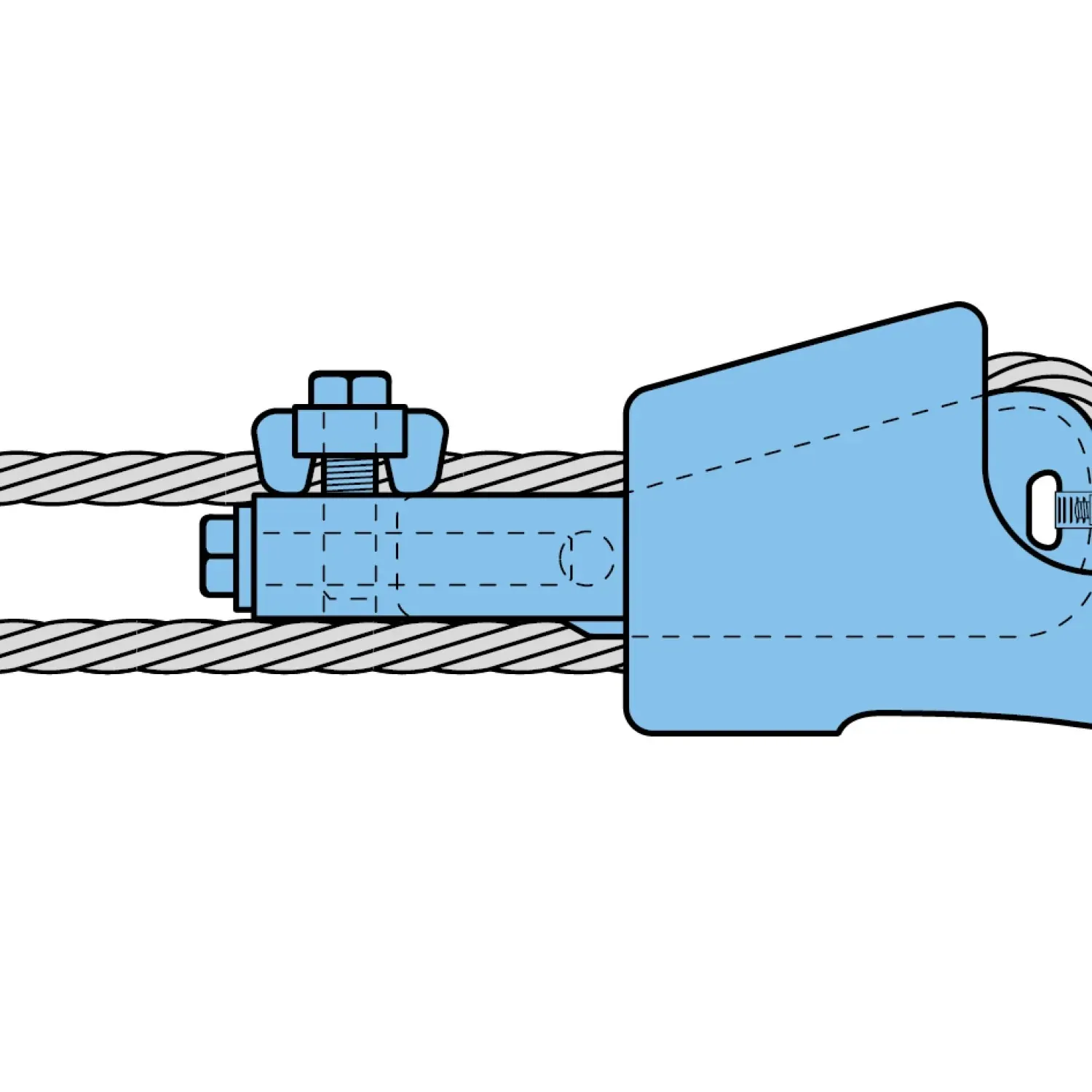

Wedge socket S-423T
End connections detachable by Jakob Rope Systems, steel. 1 size, article no. 30303-2022.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30303-2022 |
| Category | Wire Rope, Chain & Rigging |
| Product family | End connections detachable |
| Material | Steel |
| Surface | painted |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30303-2022
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Status | ø | b1 | b2 | e | g | Inches | k | ø d1 | ø d2 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30303-2022 | Phased out | 20-22 | 286 | 68 | 42 | 45 | 5/8" | 19 | 80 | 41 | 13.1000 |
- Made of cast steel, highly wear-resistant, for high-strength and nonrotating hoist ropes
- Breaking strength: 80 % of minimum rope breaking strength
