Jakob Rope Systems
Webnet

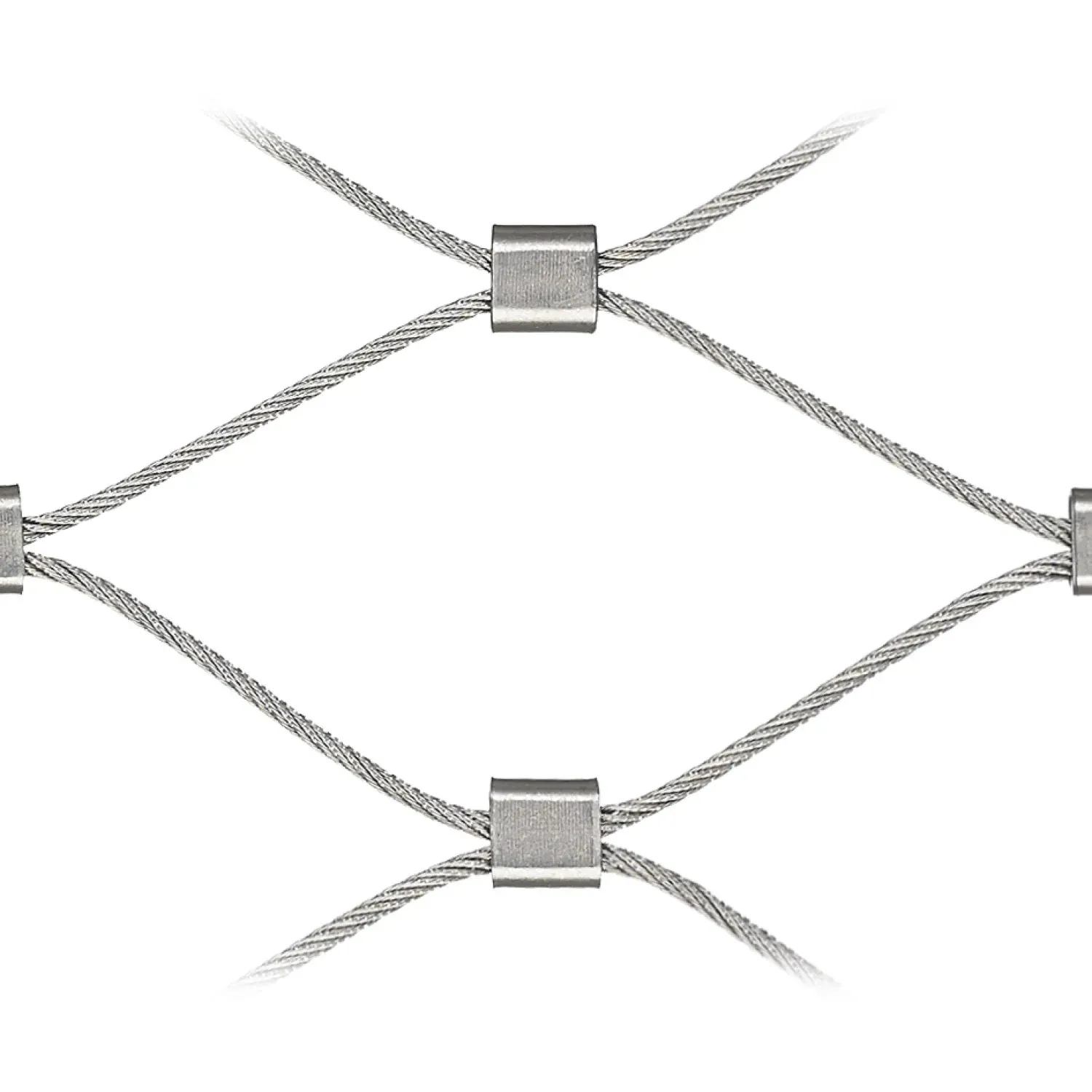

Webnet with sleeves by Jakob Rope Systems, stainless steel AISI 316 (1.4401). 14 sizes, article no. 20256-0300-040 to 20256-0300-400.
Price on request
- Transparent, durable stainless steel mesh and frame systems
- For balustrades, enclosures, aviaries and green walls
- Layout and edge-detail design by 828
- Supply and tensioned installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20256-0300 |
| Category | Webnet, Frames & Green Facades |
| Product family | Webnet with sleeves |
| Material | Stainless steel 316 |
| Sizes available | 14 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Webnet |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20256-0300
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | MW | ML | kg |
|---|---|---|---|---|
| 20256-0300-040 | 3 | 40 | 74.8 | 3.4000 |
| 20256-0300-050 | 3 | 50 | 90.5 | 2.5600 |
| 20256-0300-060 | 3 | 60 | 106 | 2.0300 |
| 20256-0300-070 | 3 | 70 | 124 | 1.6400 |
| 20256-0300-080 | 3 | 80 | 141 | 1.3900 |
| 20256-0300-100 | 3 | 100 | 175 | 1.0500 |
| 20256-0300-120 | 3 | 120 | 209 | 0.8500 |
| 20256-0300-140 | 3 | 140 | 244 | 0.7760 |
| 20256-0300-160 | 3 | 160 | 279 | 0.6710 |
| 20256-0300-180 | 3 | 180 | 313 | 0.5770 |
| 20256-0300-200 | 3 | 200 | 346.18 | 0.4680 |
| 20256-0300-250 | 3 | 250 | 432.95 | 0.3670 |
| 20256-0300-300 | 3 | 300 | 519.38 | 0.3020 |
| 20256-0300-400 | 3 | 400 | 691.89 | 0.3020 |
- We manufacture the nets to fit your specific measurements and shapes.
- Cutting for non-rectangular geometries with appropriate cutting allowance.
- Webnet edge finishing offers various options, with Type H24 and Type V24 being the standard versions. Selection depends on the primary structure's construction and assembly requirements.
- Please refer to further instructions in the Webnet catalog and assembly manual.
