Jakob Rope Systems

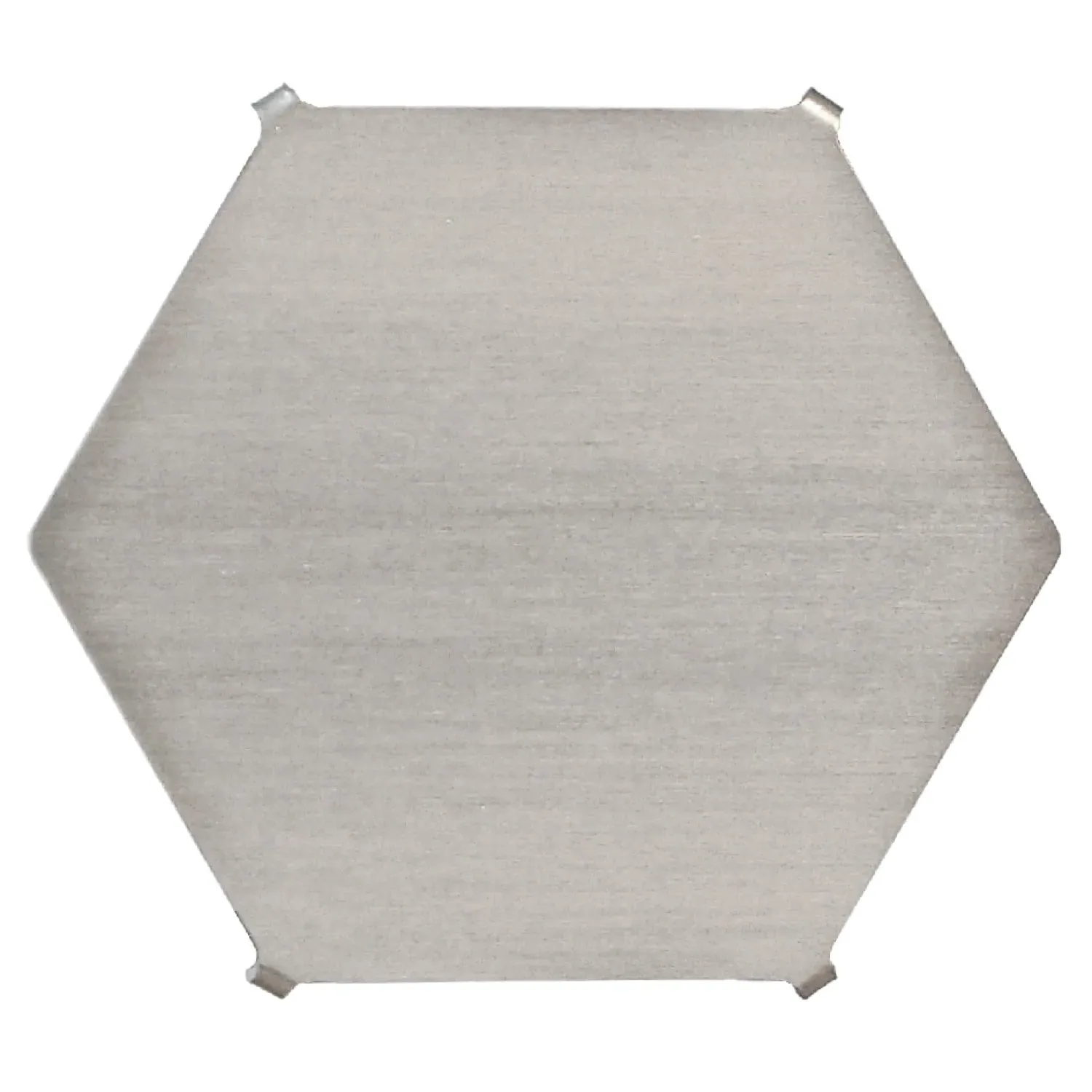

Webnet ID type B-hexagon ground finish
WebnetID by Jakob Rope Systems, stainless steel AISI 304 (1.4301). 5 sizes, article no. 20265-1520-042 to 20265-1520-102.
Price on request
- Transparent, durable stainless steel mesh and frame systems
- For balustrades, enclosures, aviaries and green walls
- Layout and edge-detail design by 828
- Supply and tensioned installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20265-1520 |
| Category | Webnet, Frames & Green Facades |
| Product family | WebnetID |
| Material | Stainless steel 304 |
| Surface | ground surface, grain 320 |
| Sizes available | 5 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Webnet |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20265-1520
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | MW | k | kg |
|---|---|---|---|
| 20265-1520-042 | 40 | 0.3 | 0.0020 |
| 20265-1520-052 | 50 | 0.3 | 0.0040 |
| 20265-1520-062 | 60 | 0.3 | 0.0050 |
| 20265-1520-082 | 80 | 0.3 | 0.0080 |
| 20265-1520-102 | 100 | 0.3 | 0.0130 |
- Suitable for Webnet with rope Ø 1,5 and 2 mm.
- Supplied as a loose component. Prepared for an easy assembly on Webnet.
- Upon request, we equip the Webnet frames with Webnet ID according to individual specifications.
Customer Reviews
Be the First to Review.
Used this product on a project? Tell other buyers how it performed.
Need It Installed?
Webnet.
Flexible stainless steel rope mesh for balustrades, fall-protection netting, bridges, zoo enclosures and green facades, made to measure in any shape and colour.
