Jakob Rope Systems

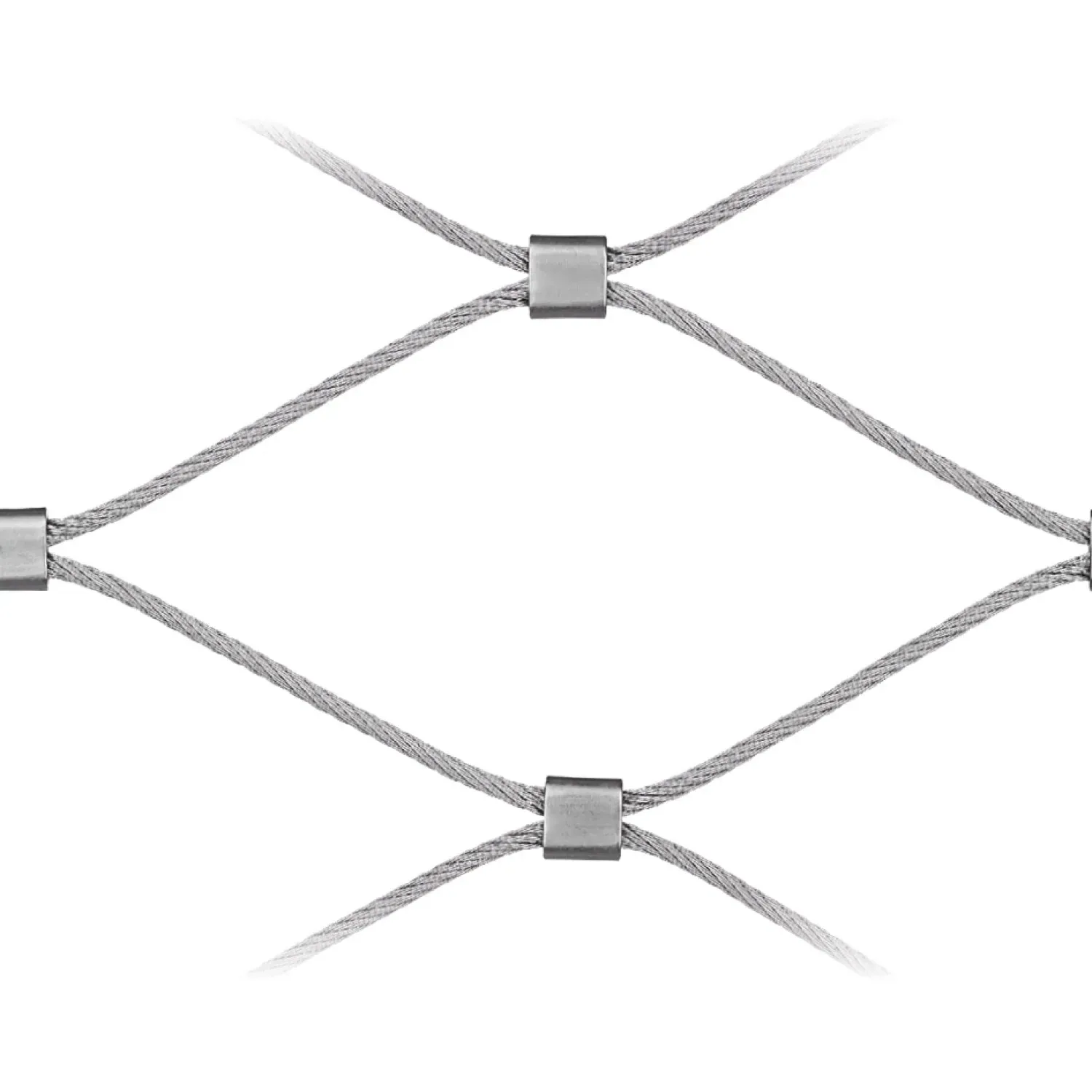

Webnet Duplex
Webnet with sleeves by Jakob Rope Systems, stainless steel AISI 318LN (1.4462). 41 sizes, article no. 20268-0150-025 to 20268-0300-400.
Price on request
- Transparent, durable stainless steel mesh and frame systems
- For balustrades, enclosures, aviaries and green walls
- Layout and edge-detail design by 828
- Supply and tensioned installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20268 |
| Category | Webnet, Frames & Green Facades |
| Product family | Webnet with sleeves |
| Material | Duplex stainless steel |
| Sizes available | 41 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Webnet |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20268
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | MW | ML | kg |
|---|---|---|---|---|
| 20268-0150-025 | 1.5 | 25 | 45.46 | 1.8200 |
| 20268-0150-030 | 1.5 | 30 | 60.73 | 1.2600 |
| 20268-0150-035 | 1.5 | 35 | 67.98 | 1.1800 |
| 20268-0150-040 | 1.5 | 40 | 75.18 | 0.8300 |
| 20268-0150-050 | 1.5 | 50 | 91.39 | 0.6200 |
| 20268-0150-060 | 1.5 | 60 | 107.78 | 0.4800 |
| 20268-0150-070 | 1.5 | 70 | 124.78 | 0.4500 |
| 20268-0150-080 | 1.5 | 80 | 141.45 | 0.3200 |
| 20268-0150-100 | 1.5 | 100 | 175.34 | 0.2800 |
| 20268-0150-120 | 1.5 | 120 | 210.36 | 0.2200 |
| 20268-0150-140 | 1.5 | 140 | 244.98 | 0.1800 |
| 20268-0150-160 | 1.5 | 160 | 280.1 | 0.1500 |
| 20268-0150-180 | 1.5 | 180 | 314.33 | 0.1100 |
| 20268-0150-200 | 1.5 | 200 | 348.51 | 0.1100 |
| 20268-0150-250 | 1.5 | 250 | 435.6 | 0.1100 |
| 20268-0200-040 | 2 | 40 | 74.93 | 1.5200 |
| 20268-0200-050 | 2 | 50 | 91.11 | 1.1400 |
| 20268-0200-060 | 2 | 60 | 107.54 | 0.9000 |
| 20268-0200-070 | 2 | 70 | 124.1 | 0.7200 |
| 20268-0200-080 | 2 | 80 | 141.03 | 0.6300 |
| 20268-0200-100 | 2 | 100 | 175.16 | 0.4600 |
| 20268-0200-120 | 2 | 120 | 209.78 | 0.3500 |
| 20268-0200-140 | 2 | 140 | 244.11 | 0.3000 |
| 20268-0200-160 | 2 | 160 | 278.29 | 0.2500 |
| 20268-0200-180 | 2 | 180 | 313.2 | 0.2400 |
| 20268-0200-200 | 2 | 200 | 348.4 | 0.1900 |
| 20268-0200-250 | 2 | 250 | 435.2 | 0.1500 |
| 20268-0300-040 | 3 | 40 | 74.8 | 3.3800 |
| 20268-0300-050 | 3 | 50 | 90.5 | 2.5400 |
| 20268-0300-060 | 3 | 60 | 106.6 | 2.0100 |
| 20268-0300-070 | 3 | 70 | 124 | 1.6200 |
| 20268-0300-080 | 3 | 80 | 141 | 1.3700 |
| 20268-0300-100 | 3 | 100 | 175 | 1.0300 |
| 20268-0300-120 | 3 | 120 | 209 | 0.8300 |
| 20268-0300-140 | 3 | 140 | 244 | 0.7500 |
| 20268-0300-160 | 3 | 160 | 279 | 0.6500 |
| 20268-0300-180 | 3 | 180 | 313 | 0.5500 |
| 20268-0300-200 | 3 | 200 | 346.18 | 0.4400 |
| 20268-0300-250 | 3 | 250 | 432.95 | 0.3400 |
| 20268-0300-300 | 3 | 300 | 519.38 | 0.2800 |
| 20268-0300-400 | 3 | 400 | 691.89 | 0.2800 |
- Duplex stainless steel, highly corrosion-resistant.
- We manufacture the nets to fit your specific measurements and shapes. Cutting for non-rectangular geometries with the appropriate cutting allowance.
- Webnet edge finishing offers various options, with Type H24 and Type V24 being the standard options. The selection depends on the construction and assembly requirements of the primary structure.
- Please refer to further instructions in the Webnet catalog and assembly manual.
