Jakob Rope Systems

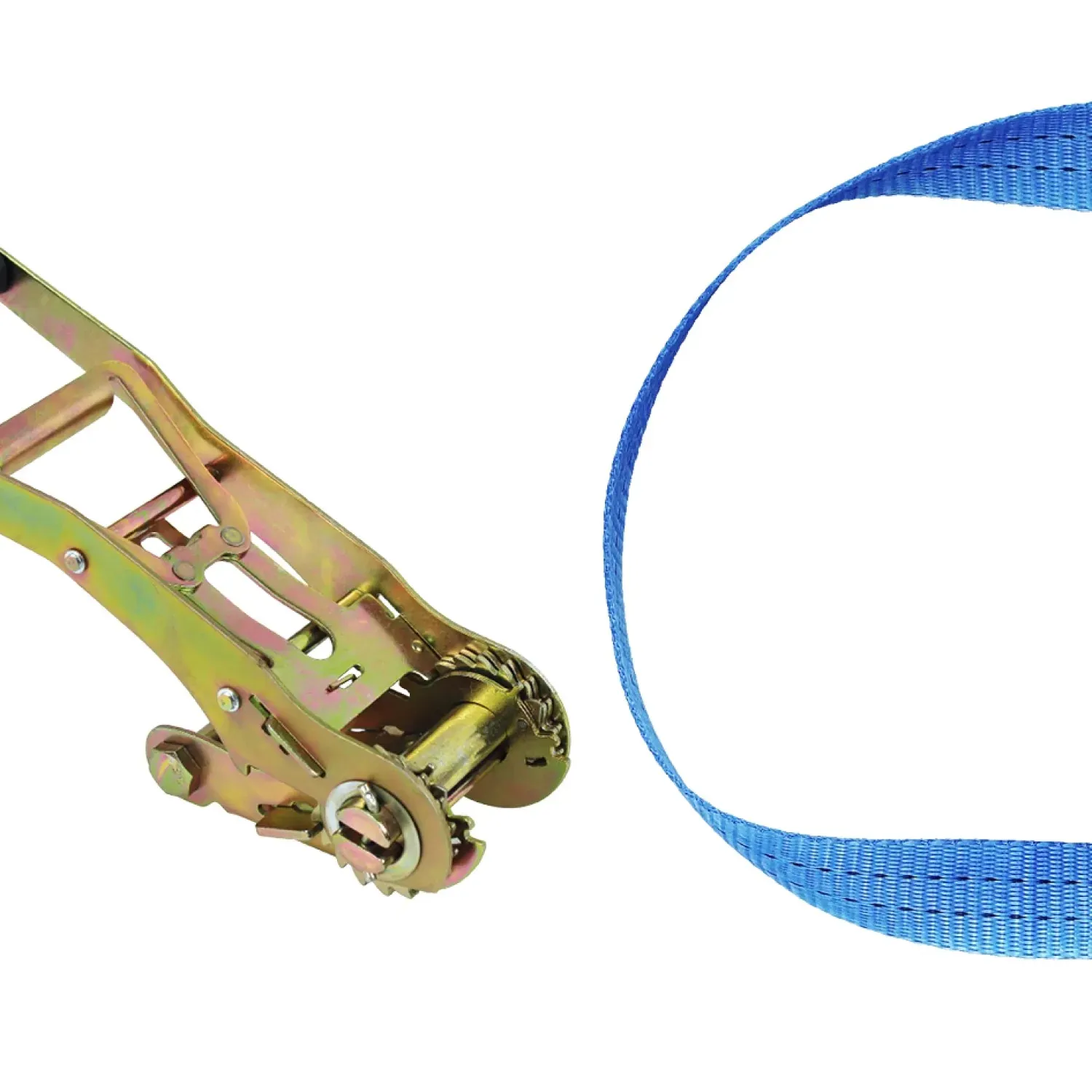

Two-piece ABS long-sleeve pressure ratchet strap assemblies R-359
Ratchet strap assemblies by Jakob Rope Systems, PES. 4 sizes, article no. 70200-0359-040 to 70200-0359-100.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 70200-0359 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Ratchet strap assemblies |
| Material | Polyester (PES) |
| Surface | with wear-resistant polyurethane coating |
| Standard | EN 1492 |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 70200-0359
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b6 | Typ | L | WLL kN | kg |
|---|---|---|---|---|---|
| 70200-0359-040 | 50 | SR-359 | 4 | 50 | - |
| 70200-0359-060 | 50 | SR-359 | 6 | 50 | - |
| 70200-0359-080 | 50 | SR-359 | 8 | 50 | - |
| 70200-0359-100 | 50 | SR-359 | 10 | 50 | - |
- Short strap 0.5 m with ratchet (other lengths available)
- Other end fittings on request
