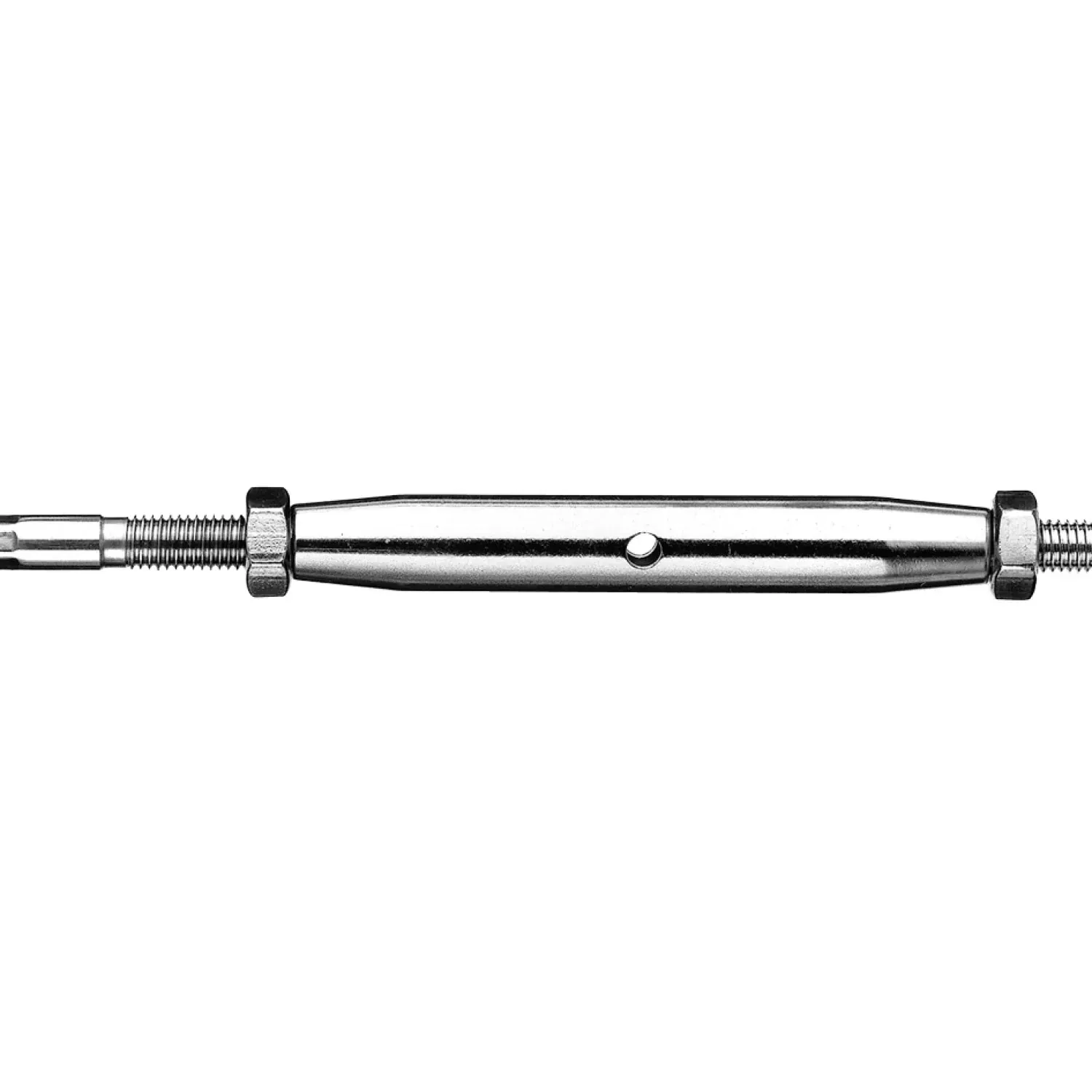

Turnbuckle with eye-end swaged
Eye-end with turnbuckle swaged and self-assembly by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 9 sizes, article no. 30889-0200 to 30889-1200.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30889 |
| Category | Architectural Cables & Fittings |
| Product family | Eye-end with turnbuckle swaged and self-assembly |
| Material | Stainless steel 316L |
| Sizes available | 9 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30889
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | a | b1 | b2 | b3 | e | h | k | ø d | F_Rd kN ETA | - | + | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30889-0200 | 2 | M5 | 174 | 80 | 15 | 6 | 12 | 3 | 5.5 | 1.2 | 34 | 26 | 0.0350 |
| 30889-0300 | 3 | M6 | 201 | 92 | 16 | 7 | 14 | 4 | 6.5 | 2.7 | 44 | 22 | 0.0630 |
| 30889-0400 | 4 | M6 | 205 | 92 | 16 | 7 | 14 | 4 | 6.5 | 2.7 | 44 | 22 | 0.0650 |
| 30889-0400-01 | 4 | M8 | 232 | 112 | 21 | 8.5 | 17 | 5 | 8.5 | 4.8 | 52 | 26 | 0.1300 |
| 30889-0500 | 5 | M8 | 238 | 112 | 21 | 8.5 | 17 | 5 | 8.5 | 4.8 | 52 | 26 | 0.1290 |
| 30889-0600 | 6 | M10 | 270 | 120 | 29 | 12 | 22 | 6 | 10.5 | 7.5 | 54 | 20 | 0.2210 |
| 30889-0800 | 8 | M12 | 346 | 150 | 31 | 14 | 25 | 8 | 13 | 10.9 | 70 | 34 | 0.4100 |
| 30889-1000 | 10 | M16 | 444 | 190 | 37 | 15 | 31 | 10 | 14.5 | 19.3 | 84 | 42 | 0.8420 |
| 30889-1200 | 12 | M20 | 529 | 220 | 49 | 21 | 40 | 15 | 19.5 | 30.2 | 98 | 50 | 1.5100 |
- The screw-in depth of the threads must be at least 1,5 times the thread diameter.
- (+) = extend (loosen)
- (-) = shorten (tighten)
- The marking on the shaft is to identify the left-hand thread.
- The design resistance FRd (kN) according to ETA refers to use with circular wire strand ropes of construction 6×19+WC (product group 10830). When using the 6×7+WC rope construction (product group 10820), the resistance value increases.
