Jakob Rope Systems

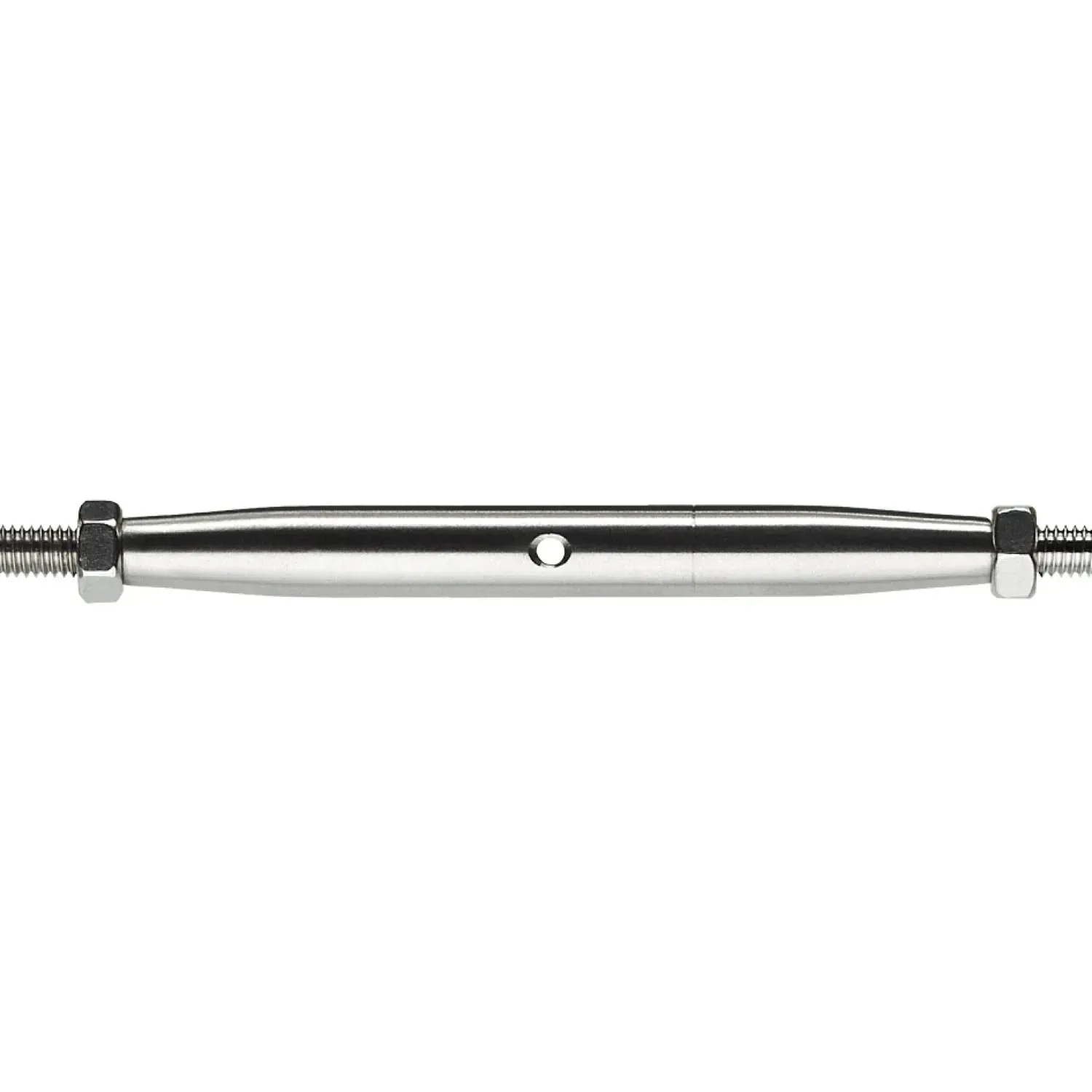

Turnbuckle with clevis Univiss round swaged
Clevis with turnbuckle swaged and self-assembly by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 6 sizes, article no. 30870-0500-10 to 30870-0800-11.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30870 |
| Category | Architectural Cables & Fittings |
| Product family | Clevis with turnbuckle swaged and self-assembly |
| Material | Stainless steel 316L |
| Sizes available | 6 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30870
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Status | ø | a | b1 | b2 | e | f | g | h | ø d | WLL kN | - | + | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30870-0500-10 | Phased out | 5 | M5 | 151 | 80 | 6 | 12 | 7.5 | 12.5 | 5 | 3.8 | 22 | 16 | 0.0450 |
| 30870-0500-11 | Phased out | 5 | M5 | 182 | 80 | 6 | 12 | 7.5 | 12.5 | 5 | 3.8 | 34 | 26 | 0.0500 |
| 30870-0600-10 | Phased out | 6 | M6 | 170 | 92 | 6 | 12 | 7.5 | 12.5 | 5 | 5.3 | 20 | 12 | 0.0670 |
| 30870-0600-11 | Phased out | 6 | M6 | 207 | 92 | 6 | 12 | 7.5 | 12.5 | 5 | 5.3 | 44 | 22 | 0.0780 |
| 30870-0800-10 | Phased out | 8 | M8 | 207 | 112 | 7 | 13 | 10 | 14.5 | 6 | 9.8 | 17 | 6 | 0.1400 |
| 30870-0800-11 | Phased out | 8 | M8 | 239 | 112 | 7 | 13 | 10 | 14.5 | 6 | 9.8 | 51 | 26 | 0.1610 |
- Univiss thread-end with round shaft.
- Only in use with circular wire strand ropes of the 10820 series.
- The minimum free rope length between the fittings is 95 mm.
- The screw-in depth of the threads must be at least 1.5 times the thread diameter.
- (+) = extend (loosen)
- (-) = shorten (tighten)
- The marking on the shaft is to identify the left-hand thread.
