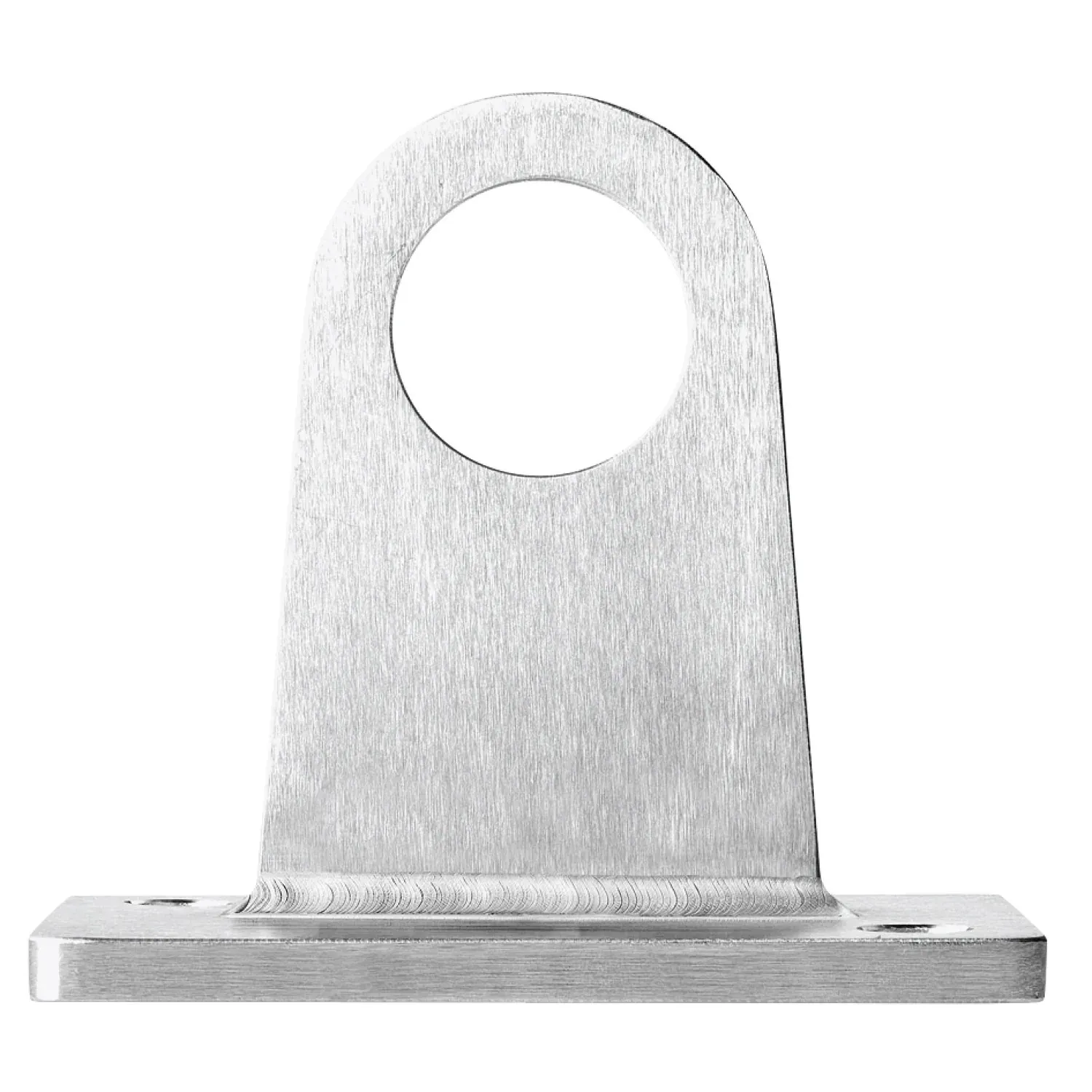

Tube bracket type 2 small
Tube bracket and Lug for welding by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30924-0033-080.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30924-0033-080 |
| Category | Architectural Cables & Fittings |
| Product family | Tube bracket and Lug for welding |
| Material | Stainless steel 316L |
| Surface | ground, grain 320 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30924-0033-080
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b1 | b2 | b3 | b4 | b5 | b6 | b7 | c | c1 | c2 | k | ø d1 | ø d2 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30924-0033-080 | 120 | 80 | 15 | 15 | 70 | 25 | 36 | 109 | 72 | 29 | 8 | 36 | 13 | 0.8800 |
- For ceiling and wall mounting of tube Ø 33.7 mm.
- Anchoring with bonded anchor rod M10 in concrete:
- Concrete quality C25/30 (cracked), anchor rod A4-70, bonded high-performance epoxy resin injection anchor or vinyl ester urethane mortar anchor.
