Jakob Rope Systems

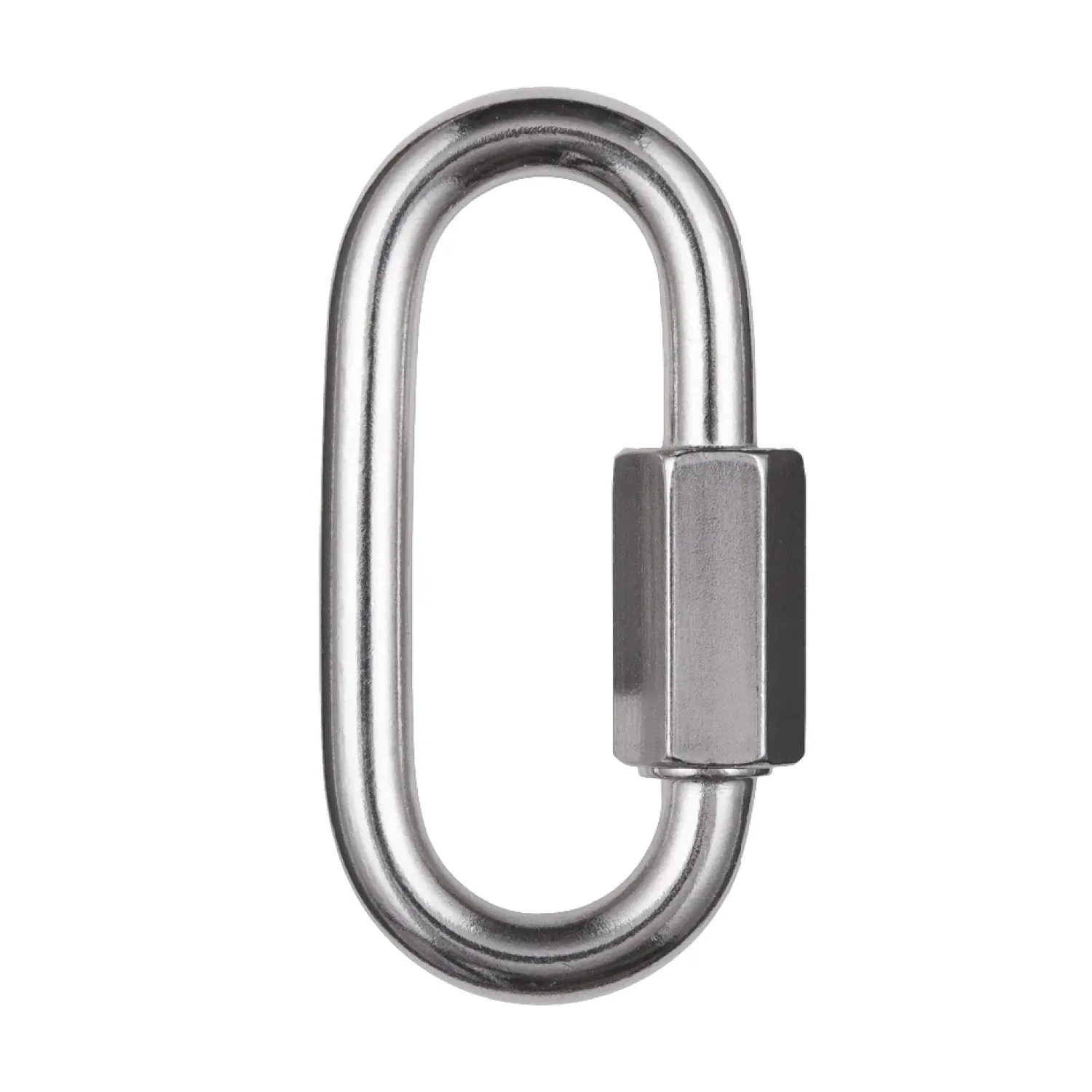

Threaded chain connection Stainless steel
Shakles, hooks, rings by Jakob Rope Systems, stainless steel AISI 316 (1.4401). 6 sizes, article no. 30895-0400 to 30895-1000.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30895 |
| Category | Architectural Cables & Fittings |
| Product family | Shakles, hooks, rings |
| Material | Stainless steel 316 |
| Surface | polished |
| Nominal strength | A4 |
| Sizes available | 6 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30895
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | b1 | b2 | g | ø d | WLL kN | kg |
|---|---|---|---|---|---|---|---|
| 30895-0400 | 4 | 32 | 11 | 5 | 4 | 4.6 | 0.0120 |
| 30895-0500 | 5 | 40 | 14 | 6 | 5 | 7.5 | 0.0210 |
| 30895-0600 | 6 | 48 | 15 | 7 | 6 | 10.6 | 0.0350 |
| 30895-0700 | 7 | 56 | 16 | 8 | 7 | 13.3 | 0.0570 |
| 30895-0800 | 8 | 59 | 17 | 9 | 8 | 17 | 0.0800 |
| 30895-1000 | 10 | 70 | 21 | 11 | 10 | 28.3 | 0.1330 |
- Aus rost- und säurebeständigem Material
- Sicherheit 5-fach
