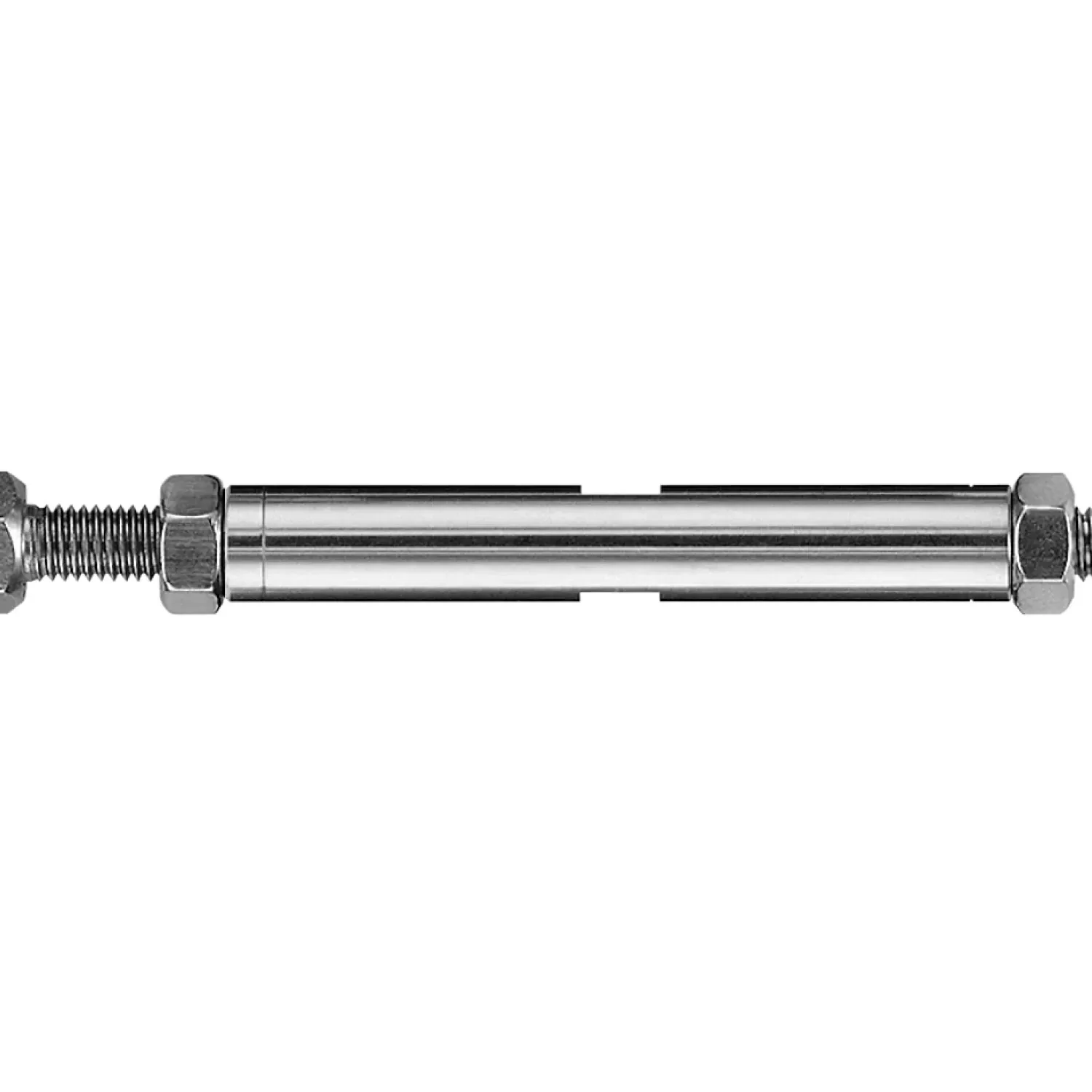

Tensioning sleeve with external thread LT2 self-assembly
Turnbuckles assembled by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30911-0400-02.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30911-0400-02 |
| Category | Architectural Cables & Fittings |
| Product family | Turnbuckles assembled |
| Material | Stainless steel 316L |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30911-0400-02
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | a | b1 | b2 | c | ø d1 | sw | F_Rd kN | F_rk kN | - | + | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30911-0400-02 | 4 | M8 | 202 | 80 | 60 | 12 | 10 | 2.2 | 3.3 | 20 | 4 | 0.1150 |
- For greening systems.
- The screw-in depth of the threads must be at least 1.5 times the thread diameter.
- (+) = extend (loosen)
- (-) = shorten (tighten)
- The marking on the turnbuckle is to identify the left-hand thread.
- The functionality is ensured only by using circular wire strand ropes 10820-0400.
- The user is responsible for independently verifying the correct installation and ensuring the appropriate rope diameter. Please refer to the instructions in the installation manual.
