Jakob Rope Systems

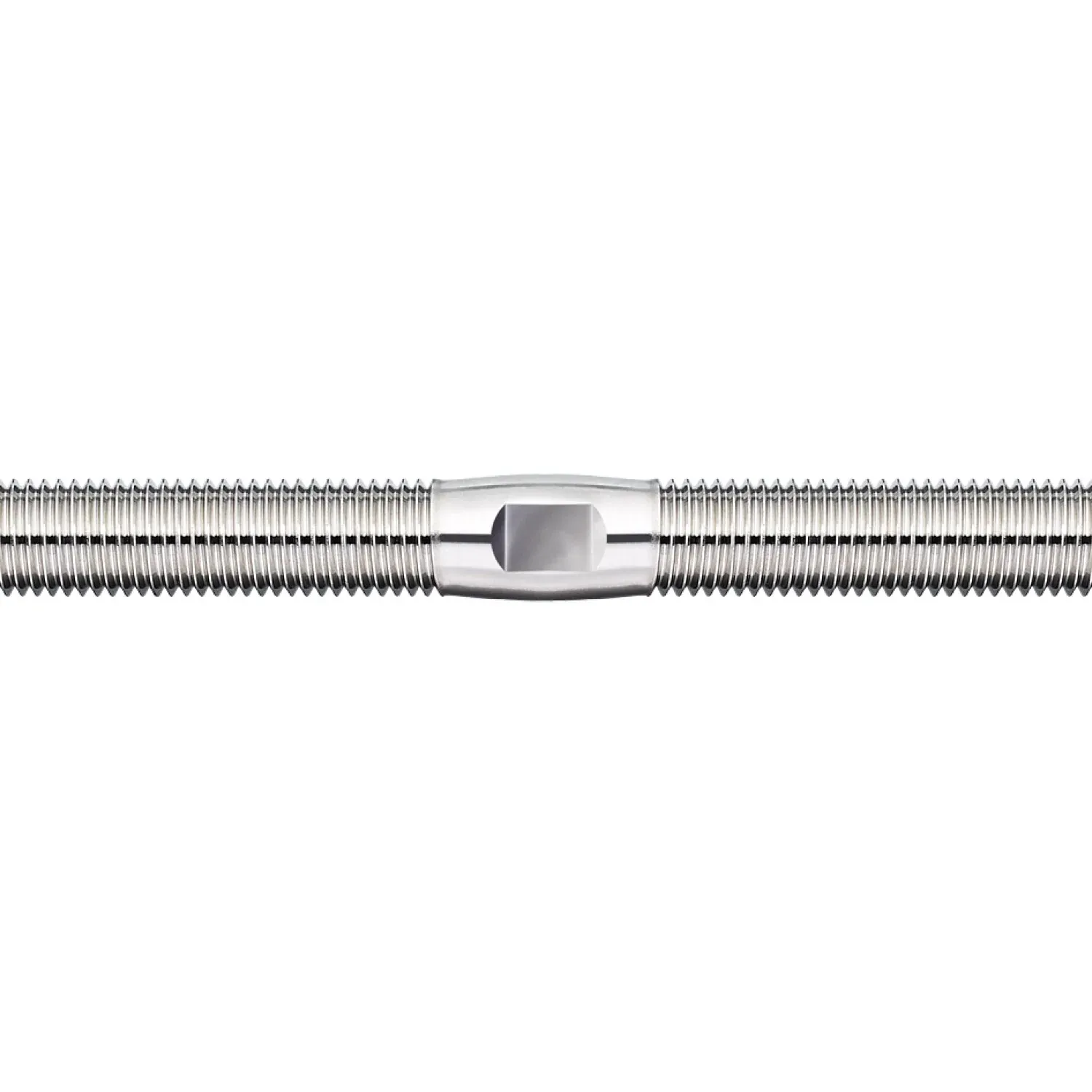

Tensioning screw thread right and left-handed M12 - M20
Screws and standard parts by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 3 sizes, article no. 30884-1200-192 to 30884-2000-292.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30884 |
| Category | Architectural Cables & Fittings |
| Product family | Screws and standard parts |
| Material | Stainless steel 316L |
| Sizes available | 3 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30884
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Status | a | b | c | ø d | sw | kg |
|---|---|---|---|---|---|---|---|
| 30884-1200-192 | Phased out | M12 | 192 | 86 | 12 | 9 | 0.1330 |
| 30884-1600-246 | Phased out | M16 | 246 | 110 | 16 | 12 | 0.3520 |
| 30884-2000-292 | Phased out | M20 | 292 | 133 | 20 | 15 | 0.6250 |
