Jakob Rope Systems

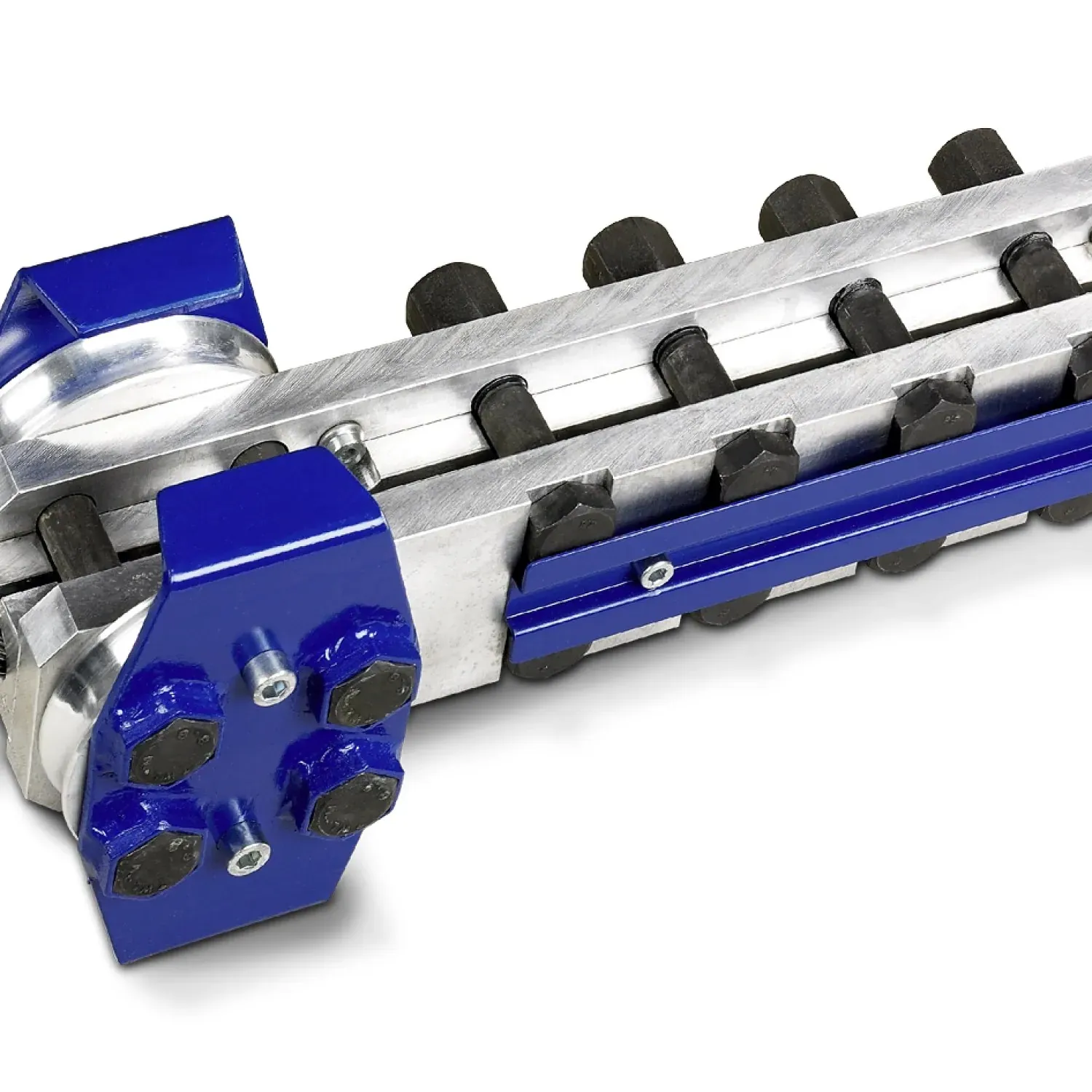

Tensioner clamp with 1 pair of rope bed rails
Anchor clamps by Jakob Rope Systems, AL. 4 sizes, article no. 30351-0500 to 30351-1095.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30351 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Anchor clamps |
| Material | Aluminium |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30351
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | lg | ø d | WLL kN | kg |
|---|---|---|---|---|
| 30351-0500 | 500 | 20-32 | 82-150 | 16.0000 |
| 30351-0600 | 600 | 30-42 | 163-261 | 26.0000 |
| 30351-0760 | 760 | 40-55 | 320-372 | 47.0000 |
| 30351-1095 | 1095 | 52-70 | -600 | 84.0000 |
- Incl. 1 pair of rope bed rails, assembly instruction and torque table for tensioner clamp.
- Rope integrity protected by low unit compression. The recommended tightening torques apply to tensioner clamps whose contact surfaces and nut threads have been lubricated.
- Please follow our assembly instructions.
