Jakob Rope Systems

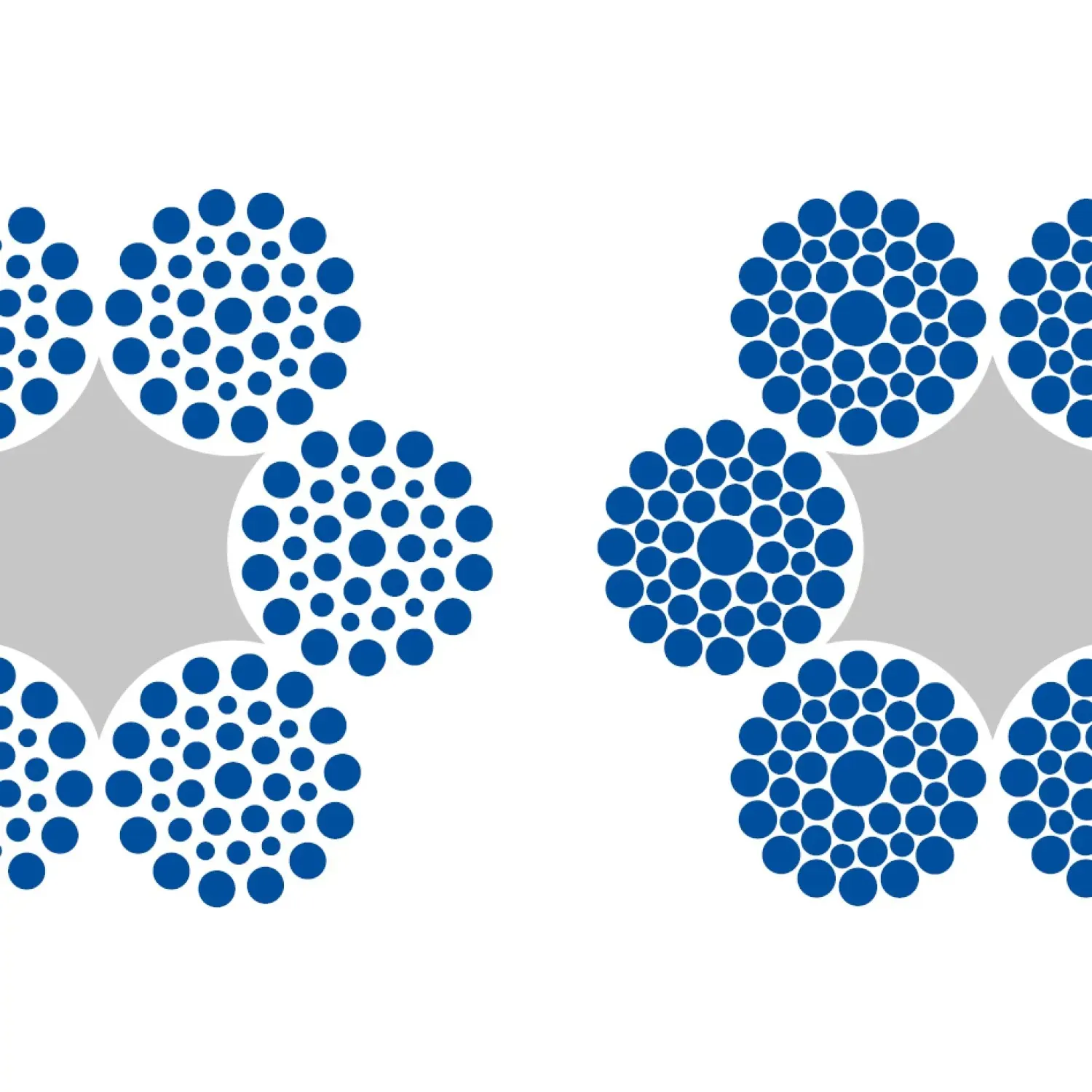

Tension rope 6 x 36 WS + FC
Cableway ropes by Jakob Rope Systems, steel wire. 9 sizes, article no. 10251-1200-99 to 10252-2400-99.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 10251-1200-99 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Cableway ropes |
| Material | Steel |
| Surface | galvanized |
| Nominal strength | 1960 N/mm2 |
| Sizes available | 9 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 10251-1200-99
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | Constr | MBL kN | kg | Standard and Classification |
|---|---|---|---|---|---|
| 10251-1200-99 | 12 | 6 x 36 WS + FC | 91 | 0.5280 | EN 12385 |
| 10251-1300-99 | 13 | 6 x 36 WS + FC | 109.3 | 0.6300 | EN12385 |
| 10251-1400-99 | 14 | 6 x 36 WS + FC | 122 | 0.7400 | EN 12385 |
| 10251-1500-99 | 15 | 6 x 36 WS + FC | 145 | 0.8500 | EN 12385 |
| 10252-1600-99 | 16 | 6 x 41 + WS + FC | 171 | 0.9700 | EN 12385 |
| 10252-1800-99 | 18 | 6 x 41 + WS + FC | 218 | 1.2300 | EN 12385 |
| 10252-2000-99 | 20 | 6 x 41 + WS + FC | 274 | 1.5200 | EN 12385 |
| 10252-2200-99 | 22 | 6 x 41 + WS + FC | 335 | 1.8400 | EN 12385 |
| 10252-2400-99 | 24 | 6 x 41 + WS + FC | 390 | 2.1900 | EN 12385 |
- Strands and insert greased with Elaskon 20 BB, made of galvanized steel wire
