Jakob Rope Systems

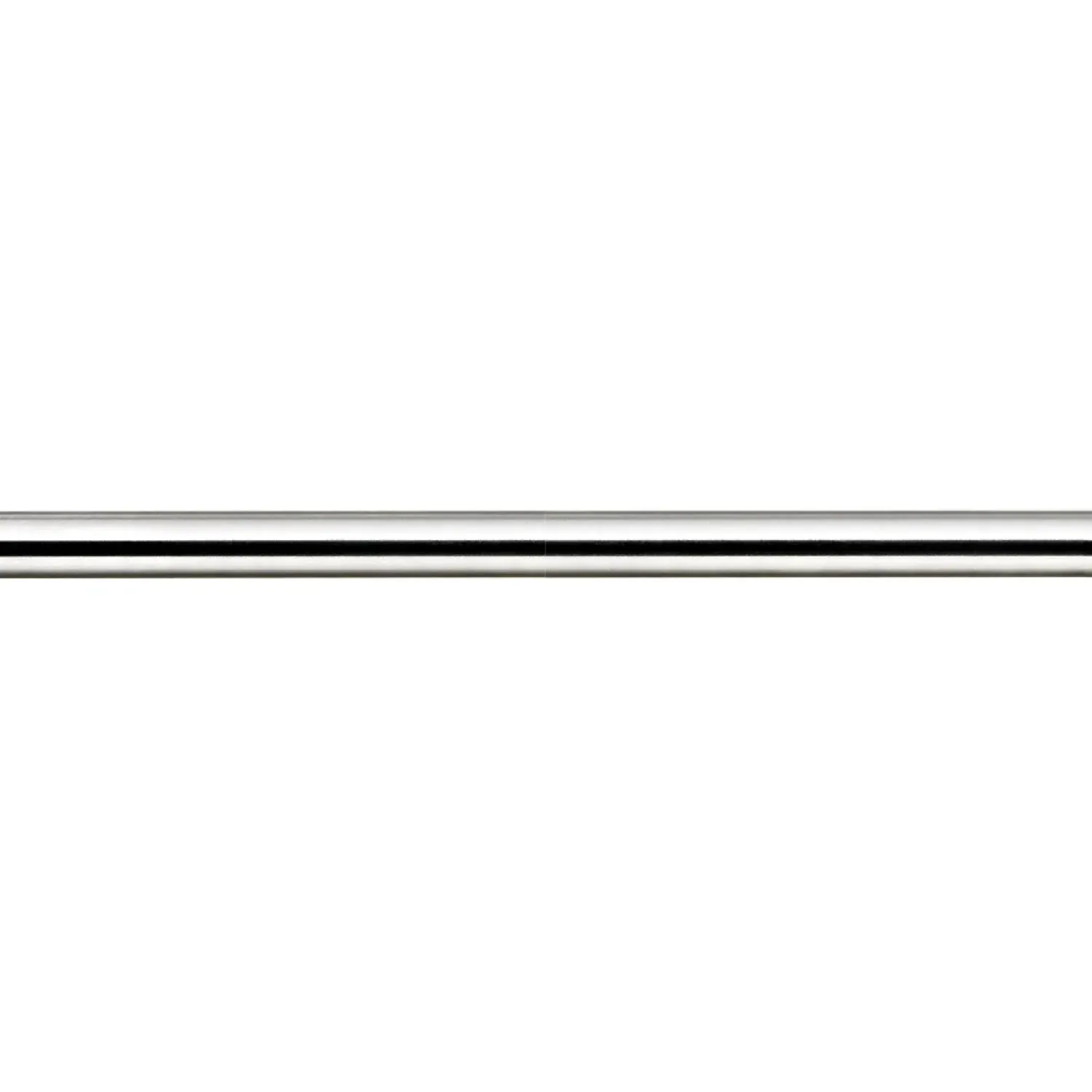

Tension rod
Rods nominal size by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 7 sizes, article no. 32884-0527 to 32884-2192.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 32884 |
| Category | Architectural Cables & Fittings |
| Product family | Rods nominal size |
| Material | Stainless steel 316L |
| Surface | ground surface |
| Sizes available | 7 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 32884
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b | NG | ø d | kg |
|---|---|---|---|---|
| 32884-0527 | variabel / variable | 6 | 5.27 | 0.1755 |
| 32884-0712 | variabel / variable | 8 | 7.12 | 0.3204 |
| 32884-0895 | variabel / variable | 10 | 8.95 | 0.5097 |
| 32884-1075 | variabel / variable | 12 | 10.75 | 0.7304 |
| 32884-1465 | variabel / variable | 16 | 14.65 | 1.3565 |
| 32884-1825 | variabel / variable | 20 | 18.25 | 2.1050 |
| 32884-2192 | variabel / variable | 24 | 21.92 | 3.0368 |
- Base material for the fabrication of the tie rod systems.
- Length variable, maximum 3000 mm
