Jakob Rope Systems
Suspension rope for single suspension polyamide twistet
Assembled fibre ropes by Jakob Rope Systems, PA. 1 size, article no. 60800-2011.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 60800-2011 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Assembled fibre ropes |
| Material | Polyamide (nylon) |
| Standard | DIN EN 1263-1 |
| Color | white |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 60800-2011
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Color | ø | L | kg |
|---|---|---|---|---|
| 60800-2011 | 12 | 2.5 | 0.1900 |

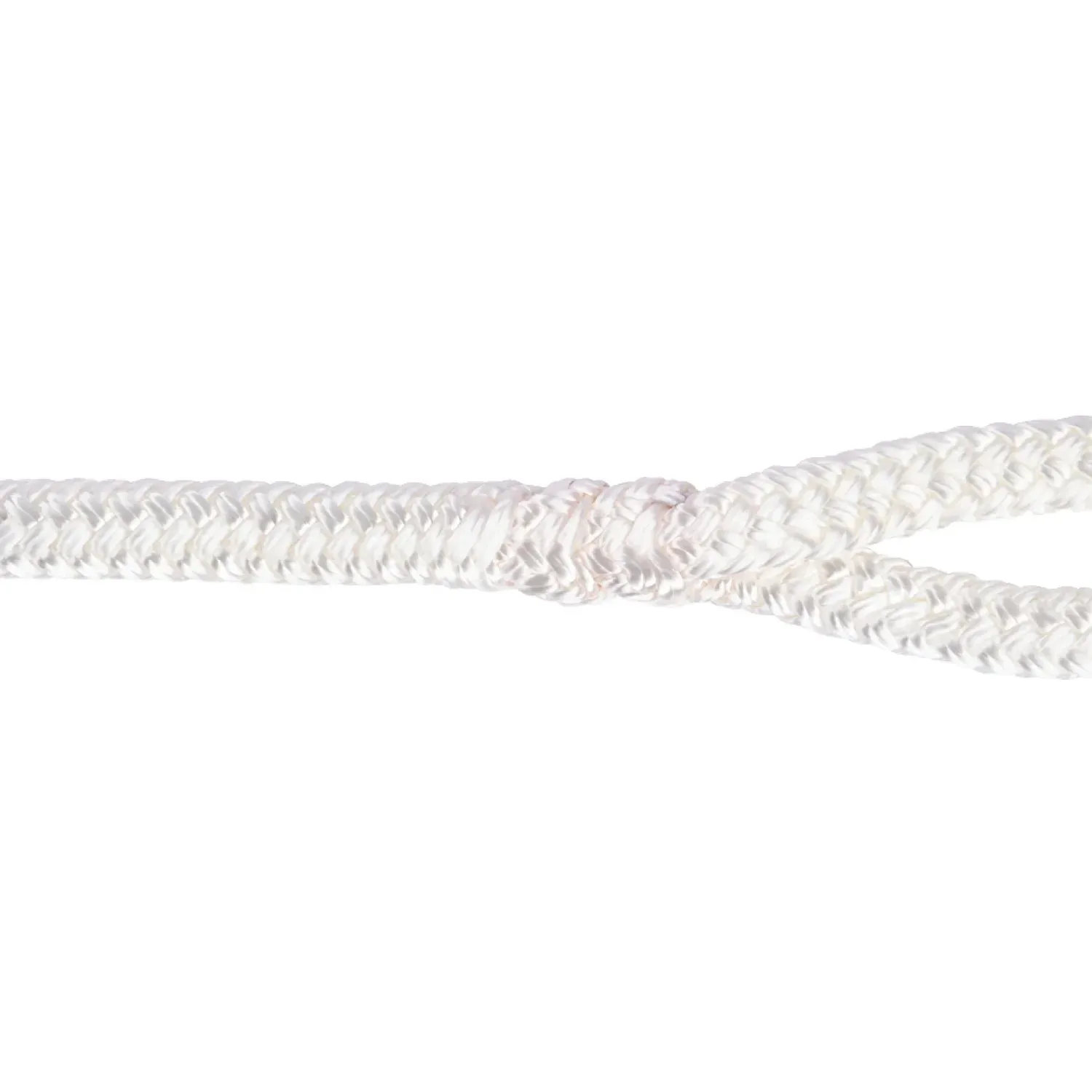

- With spliced loop eye at one end, other end sealed
- Minimum breaking strength 30 kN, for single-rope suspension, type L
- The rope is wrapped around or tied to the load-bearing element
- In many cases, nets are suspended with ropes. Other options for variable safety net installations include trigger snaps and our steel thimbles.
