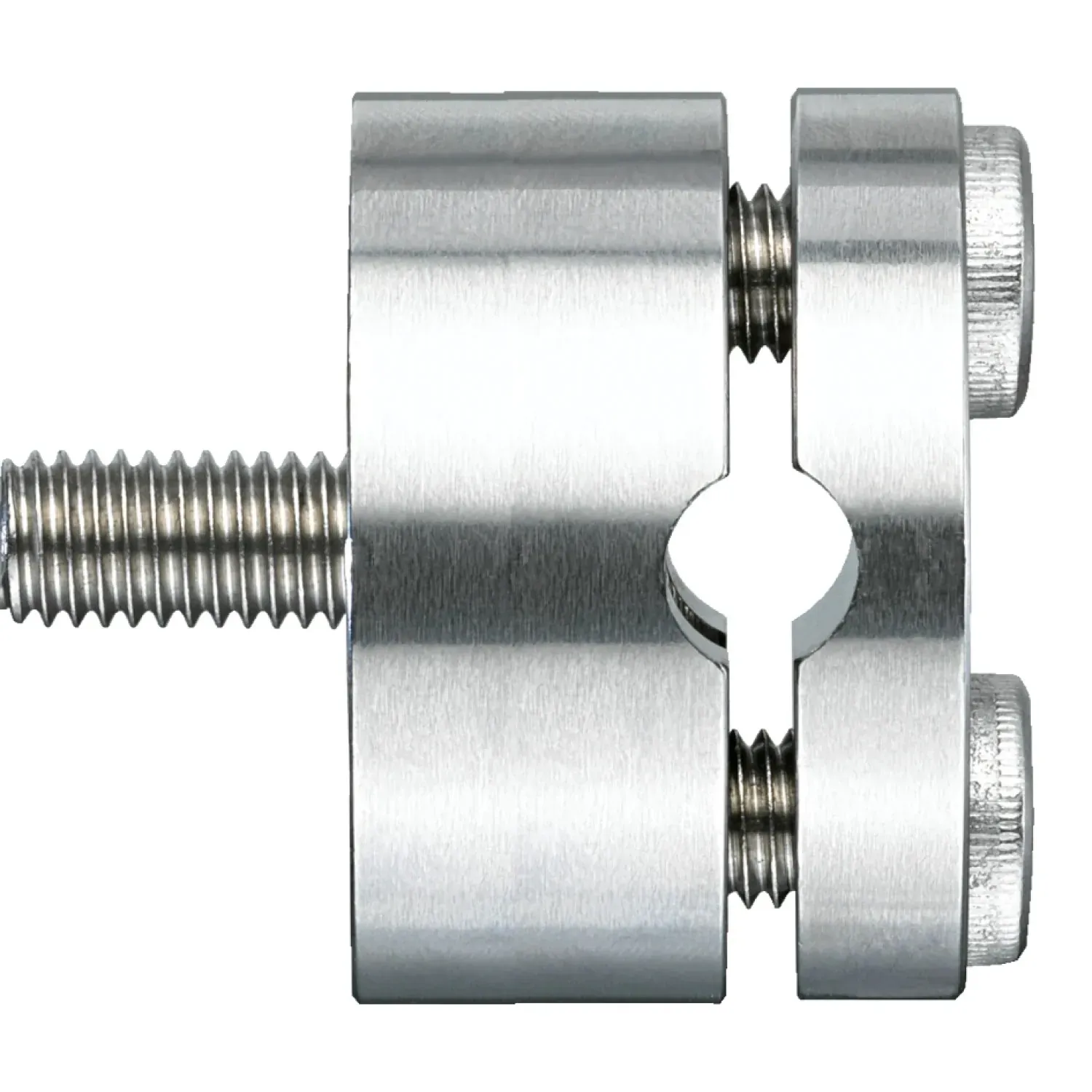

Suspension-rope clamp for rope Ø 10 mm
Jakob Rope Systems

Suspension-rope clamp for rope Ø 10 mm

30858-1012-10Architectural Cables & Fittings

Suspension-rope clamps by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30858-1012-10.

Price on request

  • Marine-grade stainless steel for long service life
  • Complete system: rope or rod, terminals and fixings from one range
  • Load and tension design by 828 rope engineers
  • Supply, swaging and installation by 828
Ask an Engineer
BrandJakob Rope Systems
Product no.30858-1012-10
CategoryArchitectural Cables & Fittings
Product familySuspension-rope clamps
MaterialStainless steel 316L
Sizes available1 article number
Manufacturer originSwitzerland · production in Vietnam
CertificationSupplied with manufacturer certification — see spec sheet for the applicable standard
Supplied in PH by828 Cable System Inc.
InstallationAvailable — see Architectural Ropes
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30858-1012-10

Article Numbers.

Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.

No.øab1b2cø d1kg
30858-1012-1010-12M12342320500.4460
  • The rope is not force-fit clamped.
  • The functionality is ensured only by using circular wire strand rope 10830-1000.
  • The user is responsible for independently verifying the correct installation and ensuring the appropriate rope diameter.
Catalog Basic 6 (PDF) ↗Data sheet (PDF) ↗
