Jakob Rope Systems

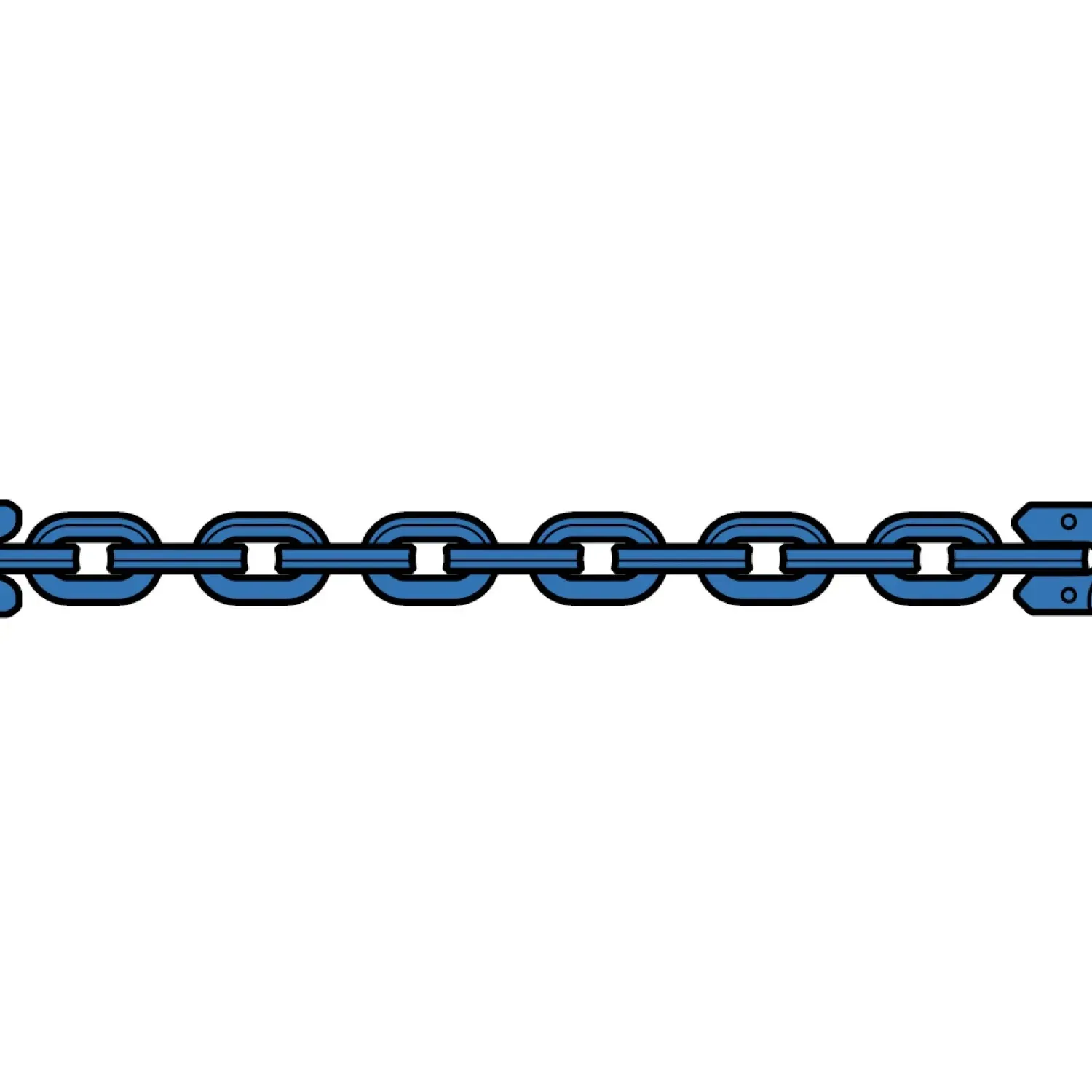

Square-link pulling chain with sling hook and clevis hook
Chains class 10 and accessories by Jakob Rope Systems, steel. 10 sizes, article no. 80263-0820-10 to 80263-1050-10.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 80263 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Chains class 10 and accessories |
| Material | Steel |
| Nominal strength | class 10 |
| Sizes available | 10 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 80263
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | L | WLL kN | kg | Surface |
|---|---|---|---|---|---|
| 80263-0820-10 | 8 | 2 | 50 | 5.2000 | painted blue |
| 80263-0825-10 | 8 | 2.5 | 50 | 6.2000 | painted blue |
| 80263-0830-10 | 8 | 3 | 50 | 7.2000 | painted blue |
| 80263-0840-10 | 8 | 4 | 50 | 9.2000 | painted blue |
| 80263-0850-10 | 8 | 5 | 50 | 11.2000 | painted blue |
| 80263-1020-10 | 10 | 2 | 80 | 5.2000 | painted blue |
| 80263-1025-10 | 10 | 2.5 | 80 | 5.2000 | painted blue |
| 80263-1030-10 | 10 | 3 | 80 | 5.2000 | painted |
| 80263-1040-10 | 10 | 4 | 80 | 5.2000 | painted |
| 80263-1050-10 | 10 | 5 | 80 | 5.2000 | painted |
- Square back chain with clevis and loop hooks
- safety factor 2
