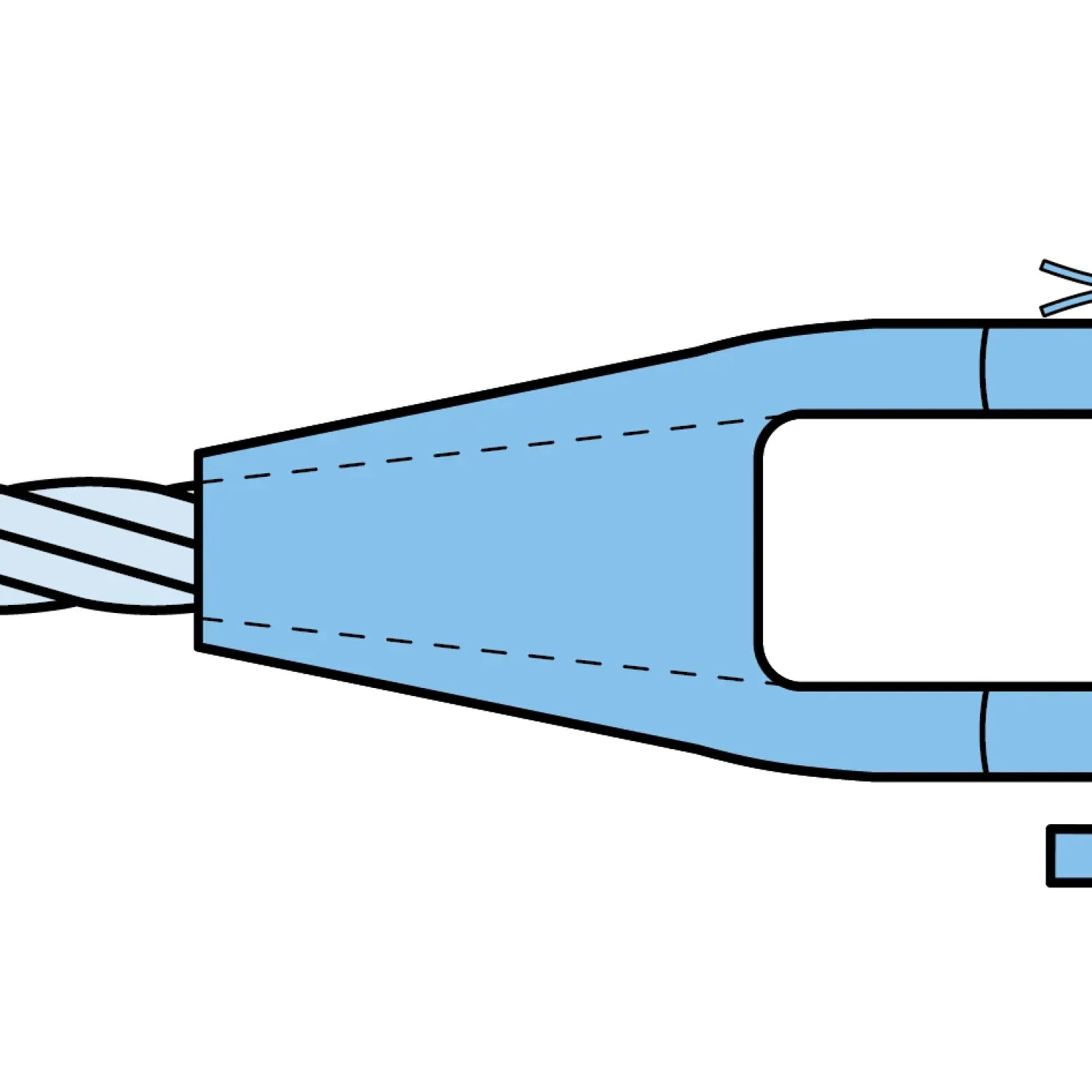

Spelter socket with clevis and pin poured with metal
Casted socket by Jakob Rope Systems, steel. 11 sizes, article no. 30530-0607-01 to 30530-4042-01.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30530 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Casted socket |
| Material | Steel |
| Surface | galvanized |
| Standard | EN 13411-4 |
| Sizes available | 11 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30530
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | b1 | e | f | g | ø d | kg |
|---|---|---|---|---|---|---|---|
| 30530-0607-01 | 6-7 | 116 | 20 | 40 | 17 | 18 | 0.6000 |
| 30530-0810-01 | 8-10 | 124 | 20 | 45 | 20 | 21 | 0.7400 |
| 30530-1113-01 | 11-13 | 142 | 27 | 51 | 25 | 25 | 1.2200 |
| 30530-1416-01 | 14-16 | 171 | 32 | 63 | 32 | 31 | 2.2100 |
| 30530-1800-01 | 18 | 205 | 40 | 76 | 38 | 35 | 3.2400 |
| 30530-2022-01 | 20-22 | 235 | 45 | 89 | 44 | 41 | 5.3700 |
| 30530-2426-01 | 24-26 | 275 | 60 | 101 | 51 | 52 | 8.4300 |
| 30530-2830-01 | 28-30 | 298 | 63 | 114 | 57 | 57 | 11.6500 |
| 30530-3235-01 | 32-35 | 333 | 70 | 127 | 64 | 64 | 16.7000 |
| 30530-3800-01 | 38 | 384 | 75 | 152 | 76 | 70 | 25.0000 |
| 30530-4042-01 | 40-42 | 413 | 80 | 165 | 76 | 76 | 28.6000 |
- Drop-forge
- Breaking strength: 100 % of minimum rope breaking strength
- For open spiral ropes and circular wire strand ropes
