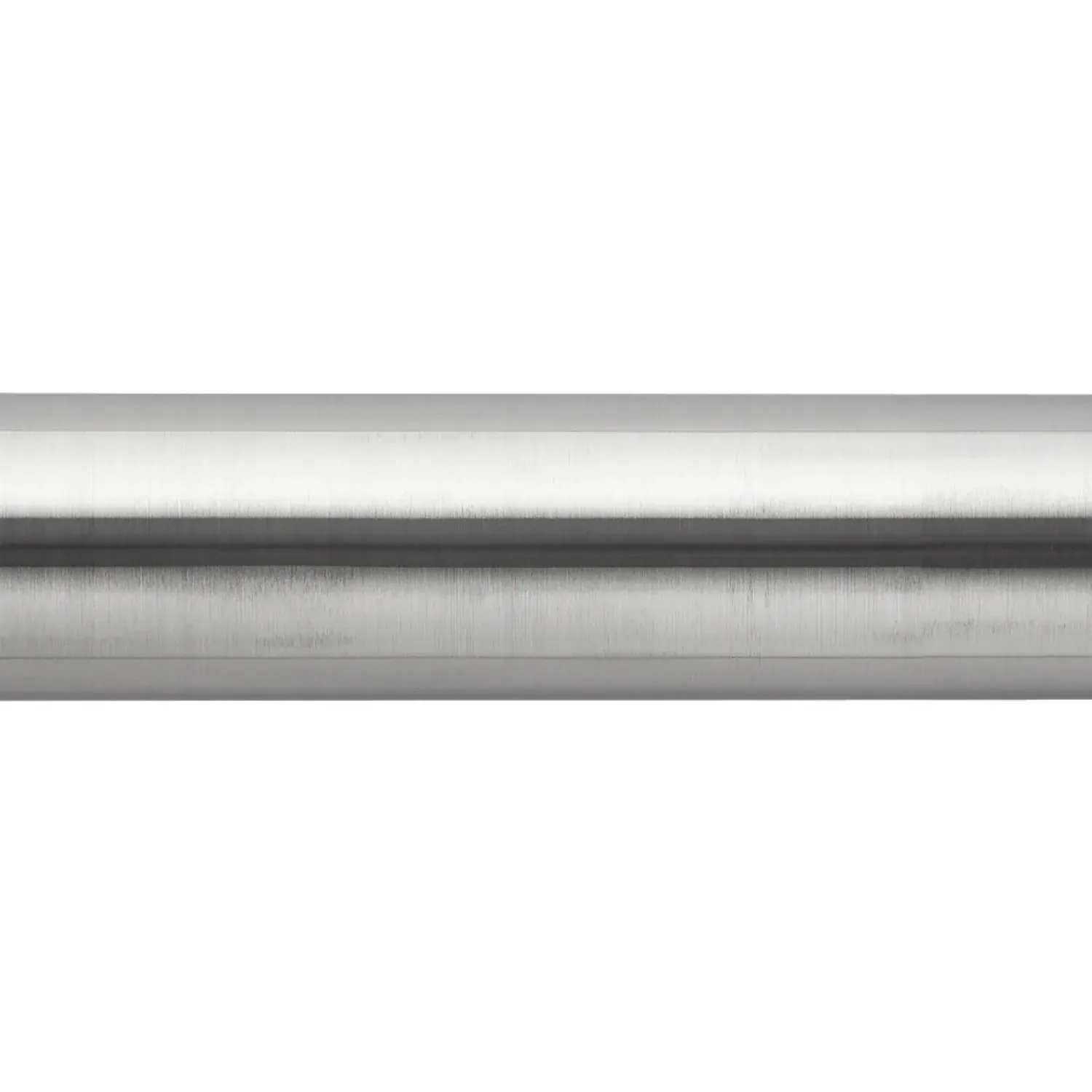

Spacer by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 3 sizes, article no. 30897-0100-10 to 30897-0200-10.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30897 |
| Category | Architectural Cables & Fittings |
| Product family | Spacer |
| Material | Stainless steel 316L |
| Surface | ground, grain 320 |
| Sizes available | 3 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30897
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a1 | a2 | b6 | c | k | ø d1 | ø d2 | sw | F_Rd kN | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 30897-0100-10 | M8 | M10 | 100 | 12 | 10 | 90 | 26.9 | 24 | 4.8 | 0.6540 |
| 30897-0150-10 | M8 | M10 | 150 | 12 | 10 | 90 | 26.9 | 24 | 4.8 | 0.8560 |
| 30897-0200-10 | M8 | M12 | 200 | 12 | 10 | 90 | 26.9 | 24 | 4.8 | 1.0920 |
- For use with the GreenTrellis solution.
- Intended for fastening in concrete with a quality rating of C25/30 using anchor rods of grade A4-70.
- Attachment with bonded anchor made of epoxy resin high-performance injection mortar or vinylester-urethane mortar.
- The correct installation is the user's own responsibility to verify.
- Please refer to the instructions in the GreenSolutions G2technical catalog as well as in the installation manual.
