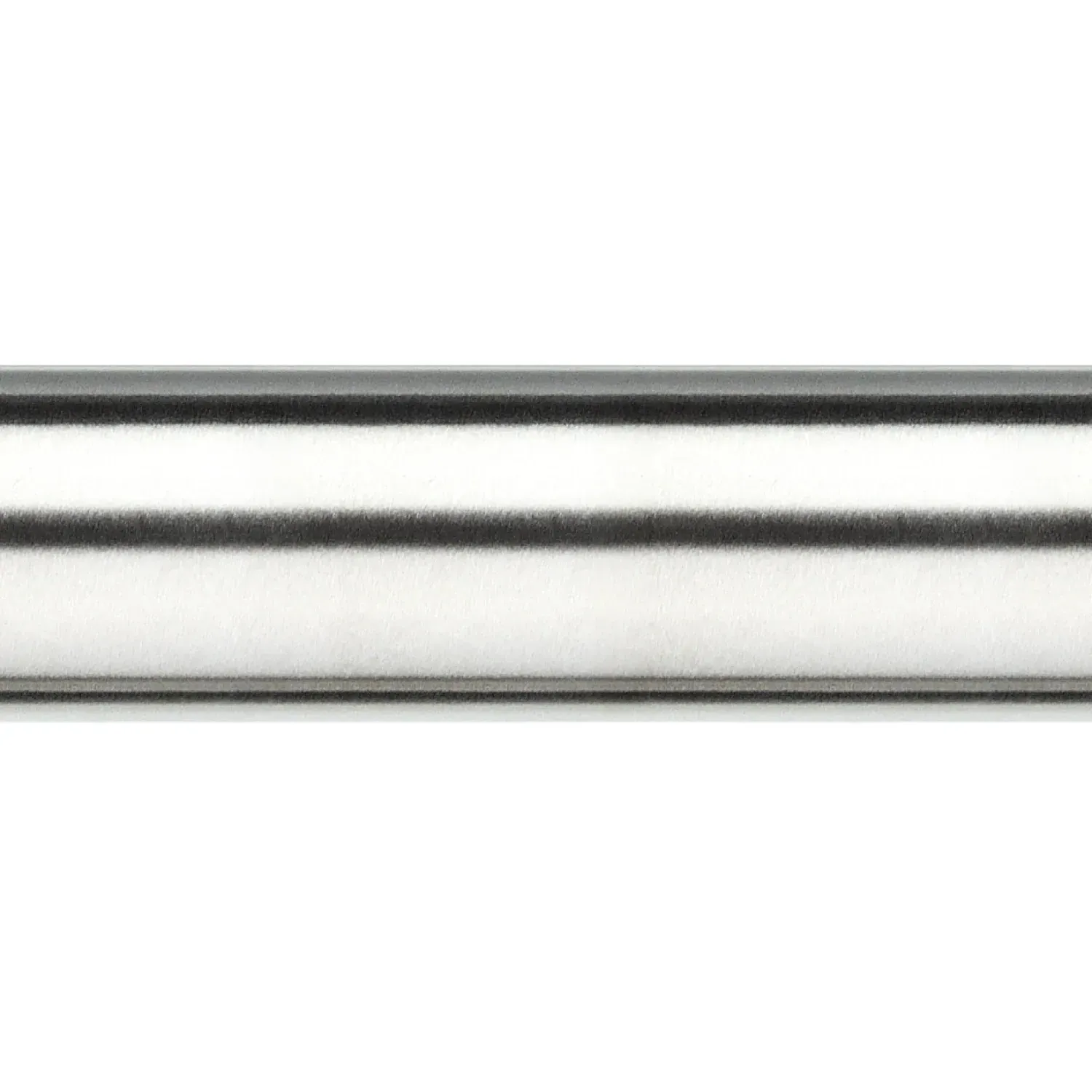

Spacer GreenGuide with internal thread
Spacer by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30919-0100-00.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30919-0100-00 |
| Category | Architectural Cables & Fittings |
| Product family | Spacer |
| Material | Stainless steel 316L |
| Surface | ground, grain 320 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30919-0100-00
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | b6 | c1 | c2 | k | ø d1 | ø d2 | sw | kg |
|---|---|---|---|---|---|---|---|---|---|
| 30919-0100-00 | M8 | 100 | 24 | 29 | 6 | 50 | 20 | 18 | 0.2890 |
- For use with the GreenGuide solution.
- Intended for fastening in concrete with a quality rating of C25/30 using anchor rods of grade A4-70.
- Attachment with bonded anchor made of epoxy resin high-performance injection mortar or vinylester-urethane mortar.
- The correct installation is the user's own responsibility to verify.
- Please refer to the instructions in the GreenSolutions G2technical catalog as well as in the installation manual.
