Jakob Rope Systems

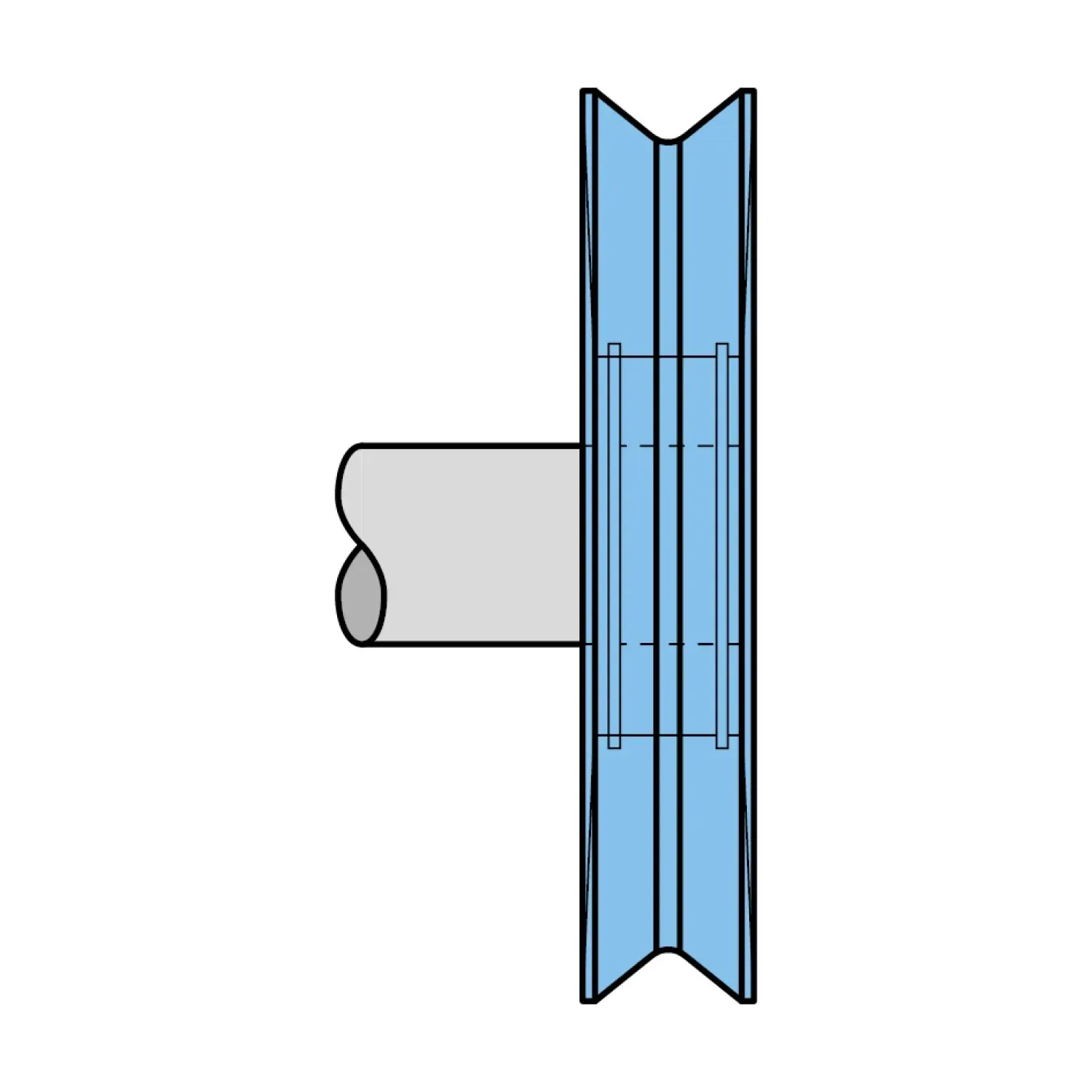

Sheave for rope up to ø 16 mm
Rope deflection by Jakob Rope Systems, plastic. 1 size, article no. 30330-0198.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30330-0198 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Rope deflection |
| Material | Plastic / rubber |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30330-0198
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | k | Typ | ø d1 | ø d2 | WLL kN | kg |
|---|---|---|---|---|---|---|---|
| 30330-0198 | 16 | 42 | D | 198 | 45 | 60 | 1.6000 |
- Typ D
- Plastic sheave
- With cylindrical roller bearing
- Safety factor 5
