Jakob Rope Systems

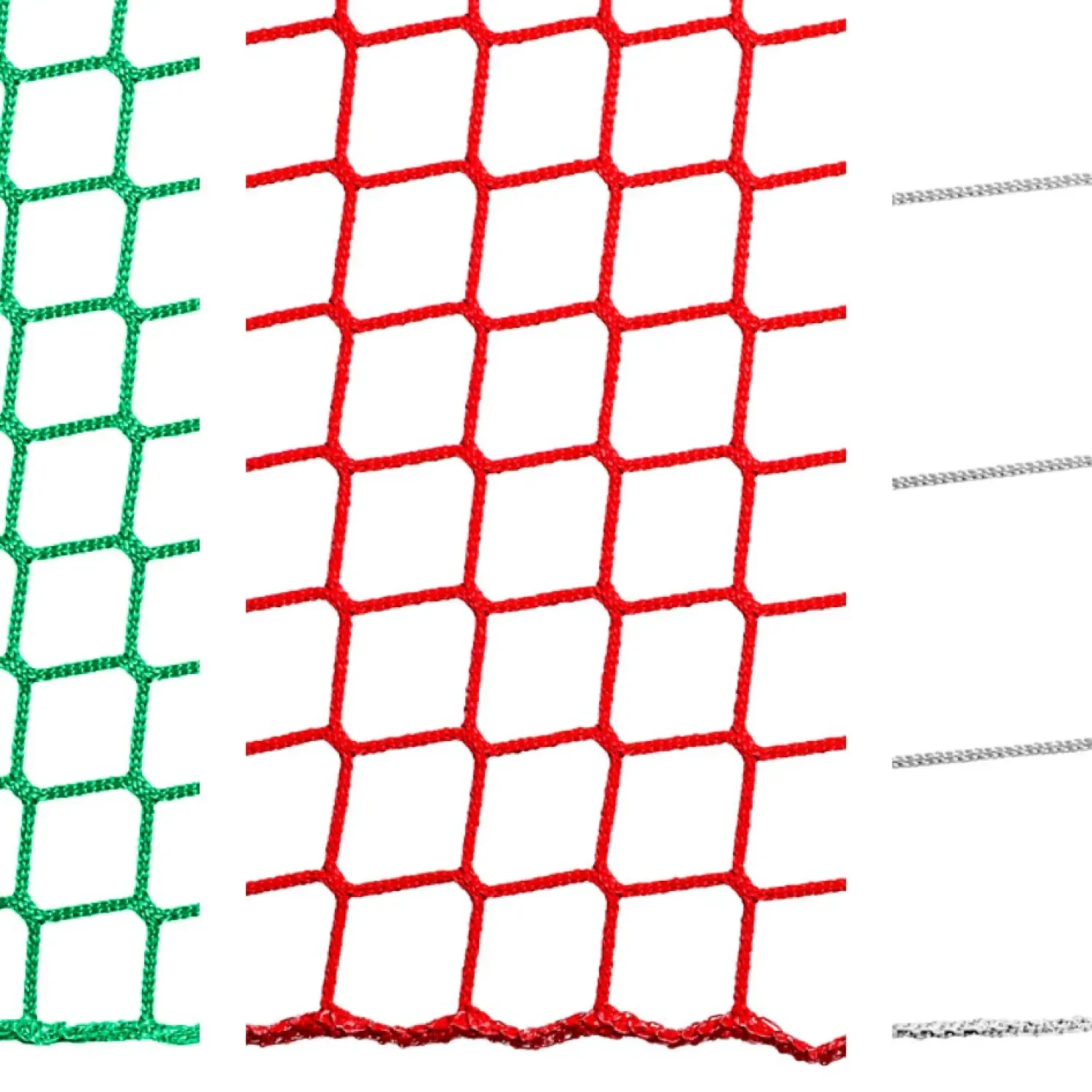

Safety and fall stop net with a reinforced selvedge Ø 5 mm, made of polypropylene
Safety and stop nets by Jakob Rope Systems, PP. 20 sizes, article no. 60800-212-045-01 to 60800-212-120-07.
Price on request
- Completes a safe, compliant work area
- Selected to match your site and system
- Supply and installation by 828
- Supplied with manufacturer certification
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 60800-212 |
| Category | Guardrail, Fencing & Hardware |
| Product family | Safety and stop nets |
| Material | Polypropylene (PP) |
| Sizes available | 20 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Guardrail Systems |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 60800-212
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Color | ø | MW | WLL kN | kg | Color |
|---|---|---|---|---|---|---|
| 60800-212-045-01 | 5 | 45 | 3.2 | 0.4000 | green | |
| 60800-212-045-02 | 5 | 45 | 3.2 | 0.4000 | white | |
| 60800-212-045-04 | 5 | 45 | 3.2 | 0.4000 | blue | |
| 60800-212-045-06 | 5 | 45 | 3.2 | 0.4000 | black | |
| 60800-212-045-07 | 5 | 45 | 3.2 | 0.4000 | red | |
| 60800-212-045-08 | 5 | 45 | 3.2 | 0.4000 | beige | |
| 60800-212-060-01 | 5 | 60 | 3.2 | 0.3000 | green | |
| 60800-212-060-04 | 5 | 60 | 3.2 | 0.3000 | blue | |
| 60800-212-060-06 | 5 | 60 | 3.2 | 0.3000 | black | |
| 60800-212-070-03 | 5 | 70 | 3.2 | 0.2750 | orange | |
| 60800-212-100-01 | 5 | 100 | 3.2 | 0.2000 | green | |
| 60800-212-100-02 | 5 | 100 | 3.2 | 0.2000 | white | |
| 60800-212-100-03 | 5 | 100 | 3.2 | 0.2000 | orange | |
| 60800-212-100-04 | 5 | 100 | 3.2 | 0.2000 | blue | |
| 60800-212-100-05 | 5 | 100 | 3.2 | 0.2000 | yellow | |
| 60800-212-100-06 | 5 | 100 | 3.2 | 0.2000 | black | |
| 60800-212-100-07 | 5 | 100 | 3.2 | 0.2000 | red | |
| 60800-212-120-01 | 5 | 120 | 3.2 | 0.1700 | green | |
| 60800-212-120-02 | 5 | 120 | 3.2 | 0.1700 | white | |
| 60800-212-120-07 | 5 | 120 | 3.2 | 0.1700 | red |
- All nets feature a reinforced selvedge that is included in the m2 price.
- High tenacity, knotless
- For technical reasons, it is not possible to supply all net sizes without seams. All nets are produced in the largest possible width with a diamond mesh and then converted to square mesh. The resulting seams are unavoidable and do not reduce the quality of the net.
