Jakob Rope Systems

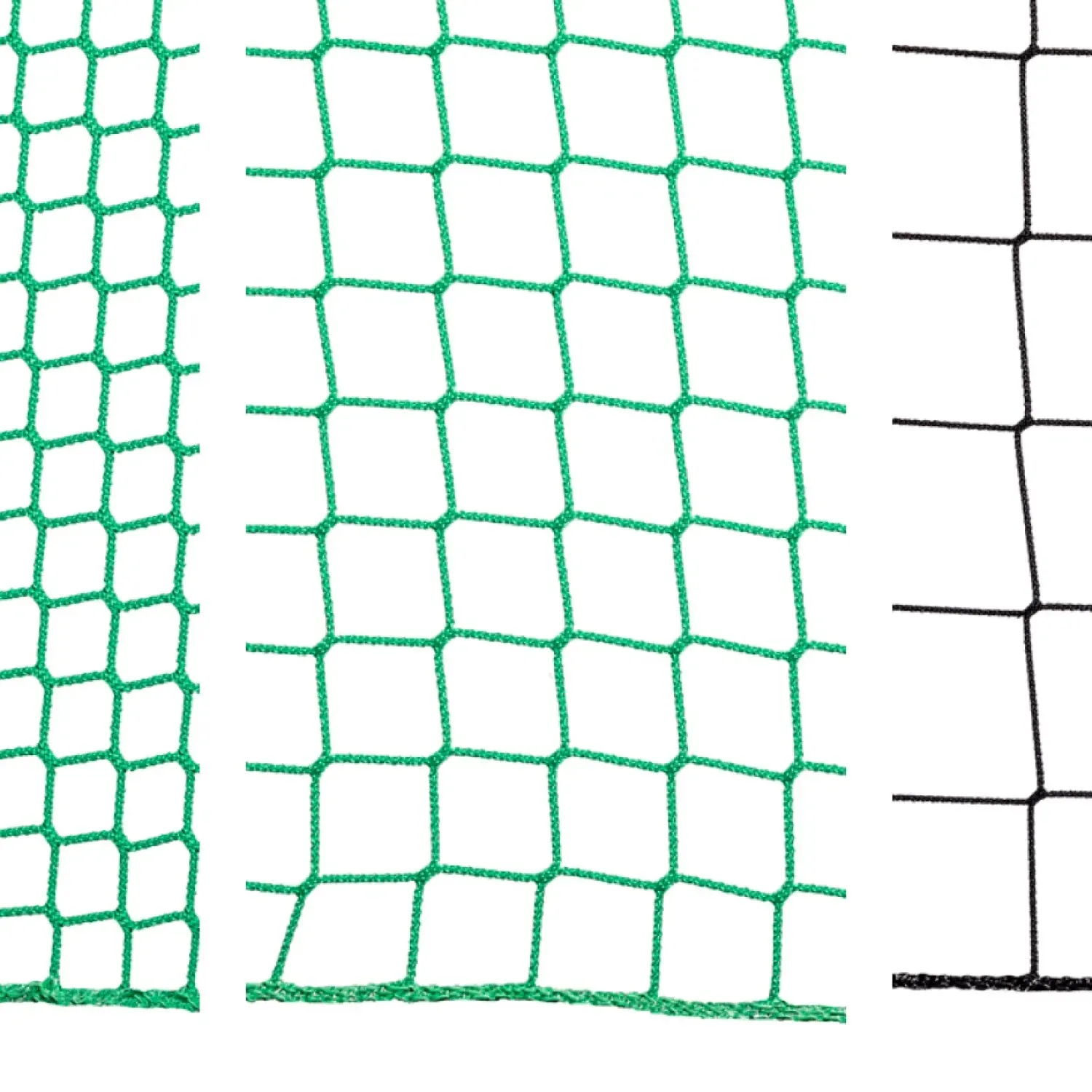

Safety and fall stop net with a reinforced selvedge Ø 4 mm, made of polypropylene
Safety and stop nets by Jakob Rope Systems, PP. 14 sizes, article no. 60800-215-030-01 to 60800-215-100-07.
Price on request
- Completes a safe, compliant work area
- Selected to match your site and system
- Supply and installation by 828
- Supplied with manufacturer certification
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 60800-215 |
| Category | Guardrail, Fencing & Hardware |
| Product family | Safety and stop nets |
| Material | Polypropylene (PP) |
| Sizes available | 14 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Guardrail Systems |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 60800-215
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Color | ø | MW | WLL kN | kg | Color |
|---|---|---|---|---|---|---|
| 60800-215-030-01 | 4 | 30 | 1.6 | 0.3300 | green | |
| 60800-215-030-06 | 4 | 30 | 1.6 | 0.3300 | black | |
| 60800-215-045-01 | 4 | 45 | 1.6 | 0.2100 | green | |
| 60800-215-045-02 | 4 | 45 | 1.6 | 0.2100 | white | |
| 60800-215-045-04 | 4 | 45 | 1.6 | 0.2100 | blue | |
| 60800-215-045-05 | 4 | 45 | 1.6 | 0.2100 | yellow | |
| 60800-215-045-06 | 4 | 45 | 1.6 | 0.2100 | black | |
| 60800-215-045-07 | 4 | 45 | 1.6 | 0.2100 | red | |
| 60800-215-100-01 | 4 | 100 | 1.6 | 0.1100 | green | |
| 60800-215-100-02 | 4 | 100 | 1.6 | 0.1100 | white | |
| 60800-215-100-04 | 4 | 100 | 1.6 | 0.1100 | blue | |
| 60800-215-100-05 | 4 | 100 | 1.6 | 0.1100 | yellow | |
| 60800-215-100-06 | 4 | 100 | 1.6 | 0.1100 | black | |
| 60800-215-100-07 | 4 | 100 | 1.6 | 0.1100 | red |
- All nets feature a reinforced selvedge that is included in the m2 price.
- High tenacity, knotless
- For technical reasons, it is not possible to supply all net sizes without seams. All nets are produced in the largest possible width with a diamond mesh and then converted to square mesh. The resulting seams are unavoidable and do not reduce the quality of the net.
