Jakob Rope Systems

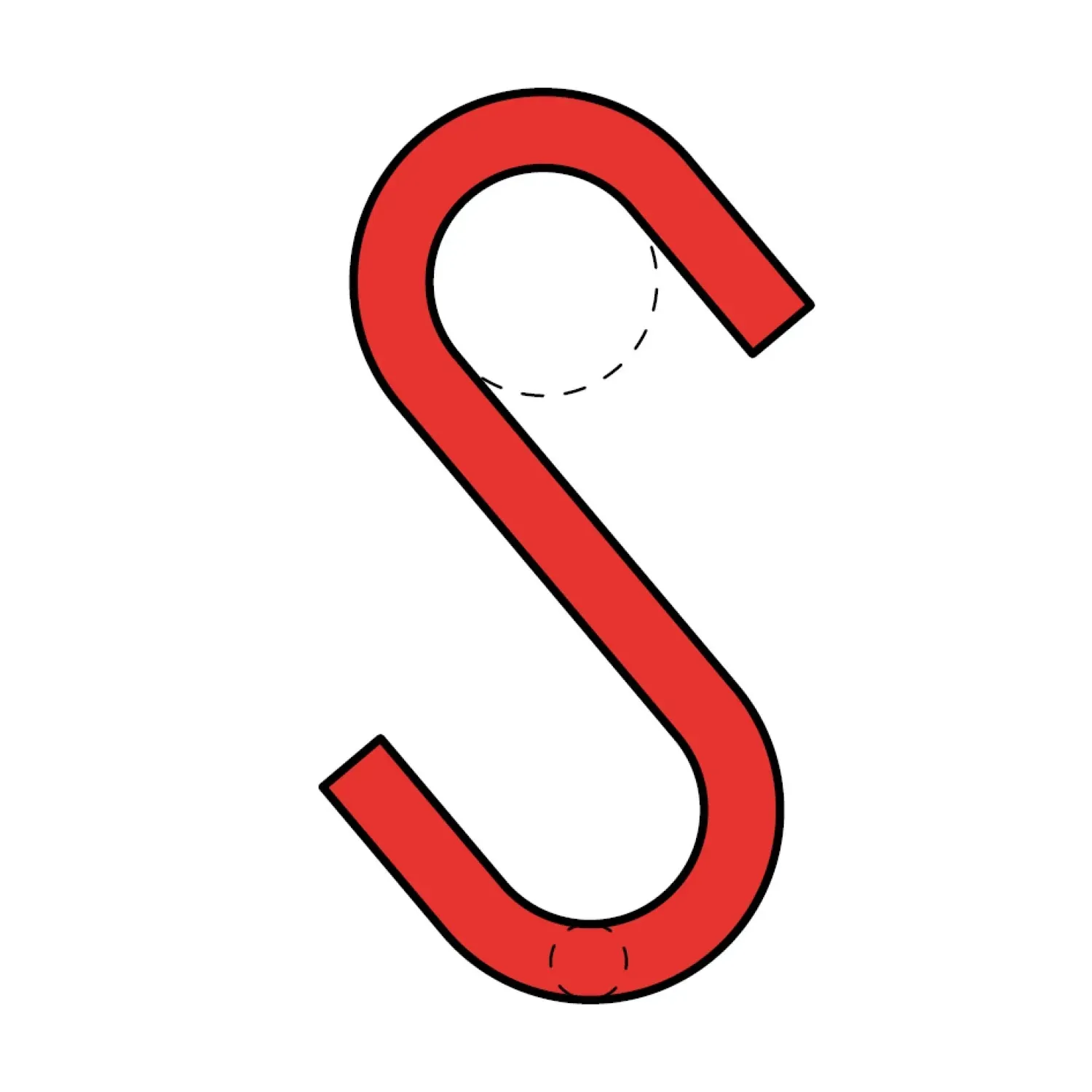

S-hook class 8
Chains class 8 and accessories by Jakob Rope Systems, 1.6753. 1 size, article no. 80240-1000.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 80240-1000 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Chains class 8 and accessories |
| Material | Steel |
| Surface | painted |
| Nominal strength | class 8 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 80240-1000
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b1 | g | ø d1 | ø d2 | WLL kN | kg |
|---|---|---|---|---|---|---|
| 80240-1000 | 160 | 50 | 50 | 18 | 10 | 1.0000 |
- High-strength, tested, load limit embossed
- Material 1.6753, safety factor 4
- Connection of chain to S hook with eye: coupling link, no. 80390-
