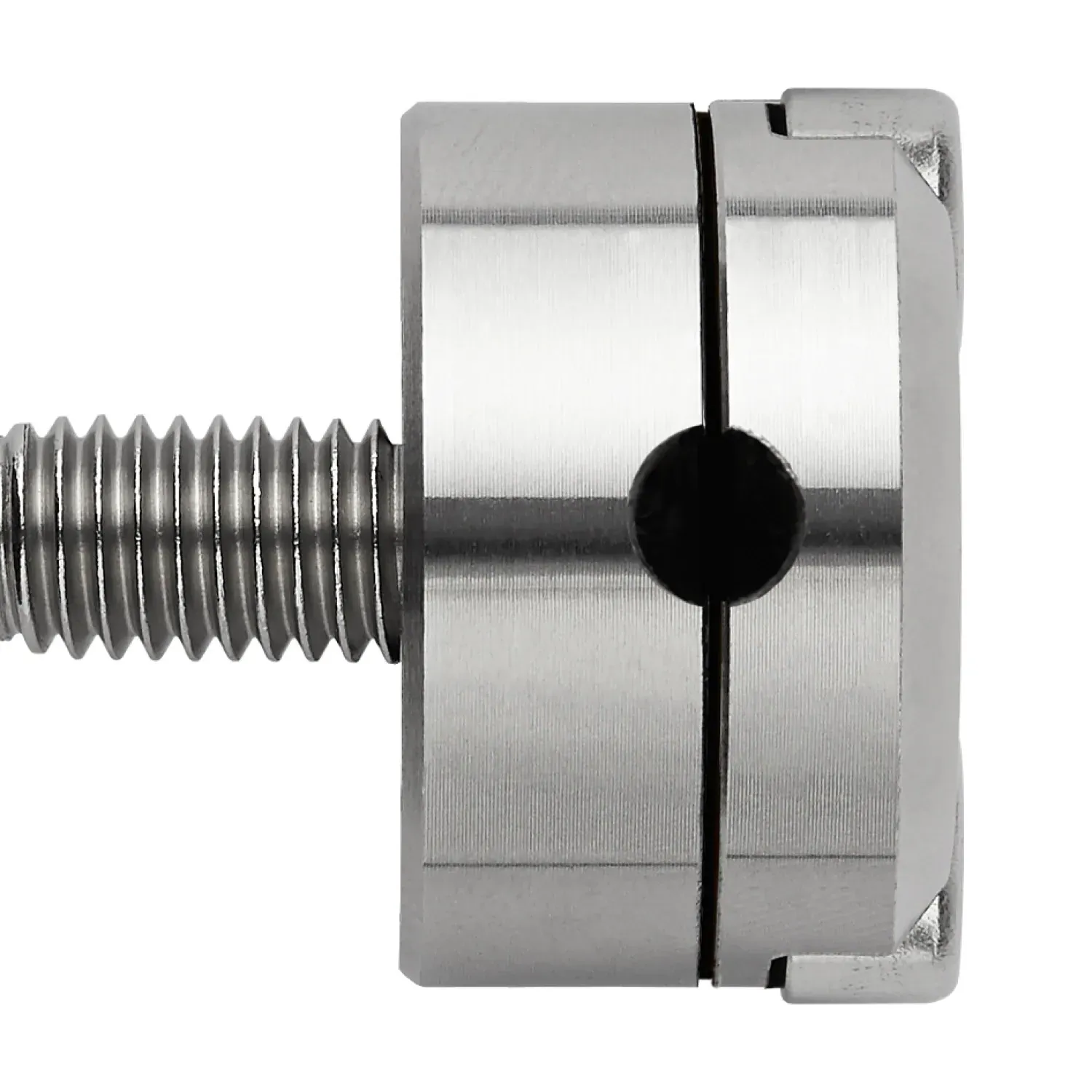

Rope guide with overload protection
Suspension-rope clamps by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 2 sizes, article no. 30920-0400-30 to 30920-0600-30.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30920 |
| Category | Architectural Cables & Fittings |
| Product family | Suspension-rope clamps |
| Material | Stainless steel 316L |
| Sizes available | 2 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30920
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | a | b | c | ø d | sw | F_rk kN | kg |
|---|---|---|---|---|---|---|---|---|
| 30920-0400-30 | 4 | M8 | 18 | 14 | 28 | 5 | 1.8 | 0.0880 |
| 30920-0600-30 | 6 | M8 | 19 | 14 | 30 | 5 | 1.0 | 0.0870 |
- With a correct tightening torque, it can be used as an overload protection device.
- The functionality is ensured only by using circular wire strand ropes of the 10820 and 10830 series.
- The value F_rk kN denotes the minimum slip force. Increasing the tightening torque of the screws increases the clamping force.
- The user is responsible for independently verifying the correct installation and ensuring the appropriate rope diameter. Please refer to the instructions in the installation manual.
