Jakob Rope Systems

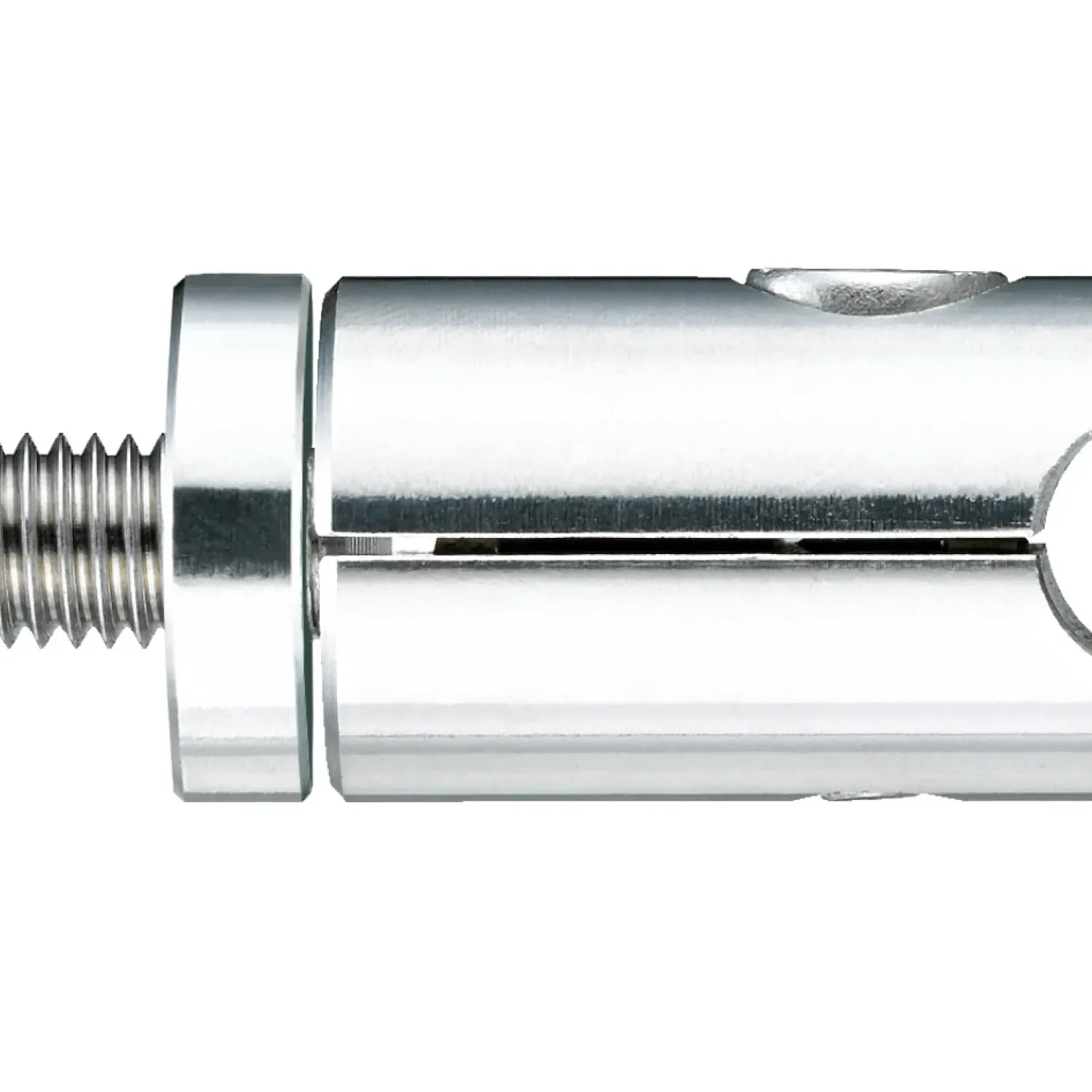

Rod holder cylindric rotating with counter washer
Rod holder and fittings by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 2 sizes, article no. 30921-1000-11 to 30921-1000-13.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30921-1000 |
| Category | Architectural Cables & Fittings |
| Product family | Rod holder and fittings |
| Material | Stainless steel 316L |
| Sizes available | 2 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30921-1000
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | b1 | b2 | c | NG | ø d2 | ø d3 | kg |
|---|---|---|---|---|---|---|---|---|
| 30921-1000-11 | M8 | 46 | 37 | 14 | 10 | 20 | 10 | 0.0940 |
| 30921-1000-13 | M8 | 46 | 37 | 29 | 10 | 20 | 10 | 0.1000 |
- Suitable for rod Ø 10 mm.
