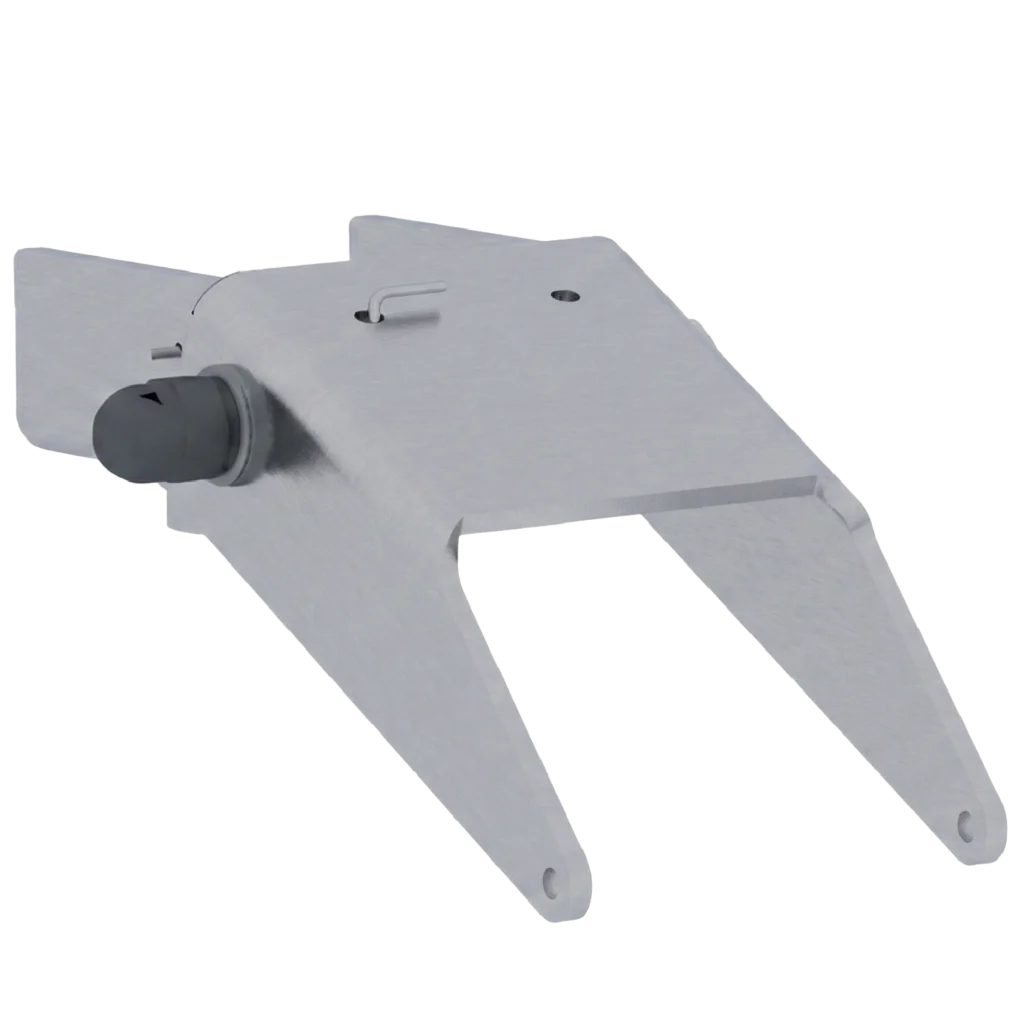

Rail Stopper

The GRXRLS24010 Stopper is a critical safety component for rigid rail lifeline systems. It is engineered to provide a secure terminal point at the end of the rail, preventing the accidental detachment of the mobile anchor (shuttle/slider) and ensuring continuous worker safety.

Product Overview

Function: Fixed at the rail termination to secure the slider within the system.

Features: Optimized geometry for easy shuttle insertion and removal.

Key Points: Features a high-reliability anti-release structure to withstand dynamic impact.

Technical Specifications

Attribute
Specification

Serial Number
GRXRLS24010

Material
High-grade Aluminum Alloy (AL)

Weight
0.522 kg

Safe Load (Fsafe​)
12 kN

Safety Factor
1.5

Physical Dimensions
The following dimensions ensure compatibility with standard industrial rail profiles:

Width (B): 39 mm

Height (H): 64 mm

Length (L): 151 mm

Compliance & Certification
This stopper meets rigorous international safety standards for fall protection equipment:

EN 795:2012, Type D: Certified for 1 person.

CEN/TS 16415:2013: Certified for up to 3 persons.

Validity Period: 10 Years.

Installation & Maintenance

Placement: Must be installed at both ends of the rigid rail.

Inspection: Regularly check the fastening bolts and the integrity of the anti-release mechanism.

Compatibility: Designed specifically for use with aluminum (AL) rail systems.
