Rail Slider

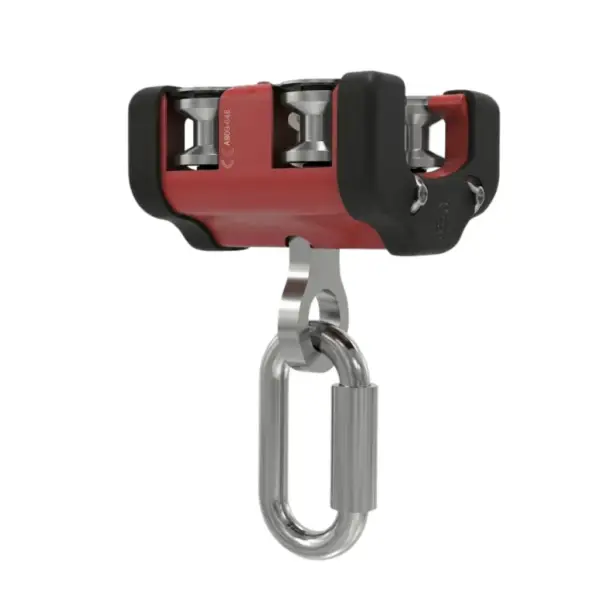

Groxx Horizontal Rail Traveler
The Groxx GRXRLS12 is a high-performance horizontal rail traveler engineered to function as a mobile anchor point within a rigid rail fall protection system. It provides a seamless connection between the user’s personal fall protection equipment (PFPE) and the rail, allowing for unrestricted lateral movement across the workspace.
Core Performance Features
Low-Resistance Kinematics: Equipped with a precision roller and bearing structure, the GRXRLS12 ensures smooth, continuous sliding along the rail with minimal physical effort from the user.
Bypass Capability: The traveler is specifically designed to pass through intermediate rail supports without the need for disconnection, ensuring 100% tie-off safety throughout the entire length of the system.
Anti-Detachment Security: Engineered with a high-integrity structural housing that ensures the traveler remains securely captured by the rail profile at all times, even under dynamic fall loads.
Universal Connection: Features a robust attachment eye compatible with standard carabiners, safety harnesses, and self-retracting lifelines (SRLs).
Technical Specifications
Feature
Specification
Model Number
GRXRLS12
Material Composition
AISI 304 Stainless Steel / ABS / Aluminum (AL)
Safe Load Capacity
12 kN
Safety Factor
1.5
Unit Weight
890 g
Dimensions (B x H x L)
96.7 mm x 93.5 mm x 101 mm
Material Science & Durability
Hybrid Construction: Utilizes 316/304 Stainless Steel for load-bearing components to ensure maximum tensile strength and ABS/Aluminum for the outer housing to reduce weight without compromising impact resistance.
Environmental Protection: All internal bearings and rollers are treated for high-level corrosion resistance, suitable for both indoor industrial environments and outdoor architectural applications.
Longevity: Provided with a 10-year validity period, supported by mandatory annual professional inspections to verify bearing integrity and gate security.
Compliance & Standards
The GRXRLS12 is rigorously tested to meet global safety benchmarks for mobile horizontal anchor devices:
EN 795:2012 Type D: Certified as a mobile anchor point for use on rigid anchor lines (Rated for 1 user).
CEN/TS 16415:2013: Tested and compliant for single-user fall arrest applications within a multi-user system architecture.
GB 38454-2019: Meets Chinese national standards for horizontal fall protection equipment.
The Groxx Advantage
The GRXRLS12 traveler is the critical link in any horizontal rigid rail system. Its “hands-free” bypass technology and low-friction rollers allow maintenance teams to focus on their task rather than their safety gear, providing a superior user experience without sacrificing structural reliability.
