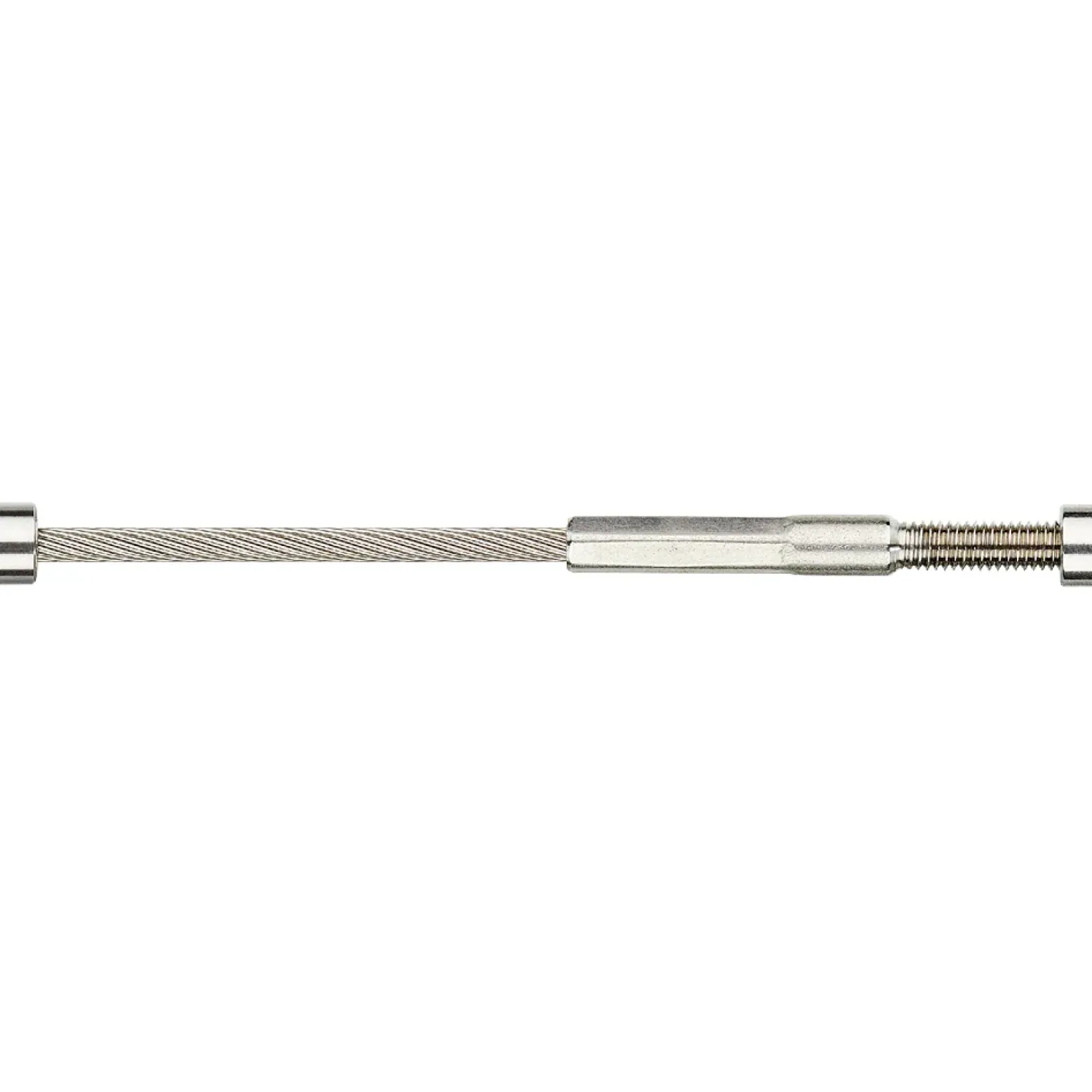

Radius head rope self-assembly Set
Radius head rope by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 4 sizes, article no. 30780-0400-020 to 30780-0400-060.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30780-0400 |
| Category | Architectural Cables & Fittings |
| Product family | Radius head rope |
| Material | Stainless steel 316L |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30780-0400
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | a | b1 | b2 | b3 | L | ø d1 | ø d2 | ø d3 | sw | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30780-0400-020 | 4 | M6 | 76 | 41 | 29 | 2000 | 9.5 | 16 | 7 | 4 | 0.2140 |
| 30780-0400-030 | 4 | M6 | 76 | 41 | 29 | 3000 | 9.5 | 16 | 7 | 4 | 0.2880 |
| 30780-0400-040 | 4 | M6 | 76 | 41 | 29 | 4000 | 9.5 | 16 | 7 | 4 | 0.3620 |
| 30780-0400-060 | 4 | M6 | 76 | 41 | 29 | 6000 | 9.5 | 16 | 7 | 4 | 0.5100 |
- Set including open spiral strand and fittings.
- Ready to assemble and to shorten one side to the appropriate length.
- The dimension (L) is the maximum assembly length.
- The user is responsible for verifying the correct installation. Please refer to the instructions in the assembly manual.
