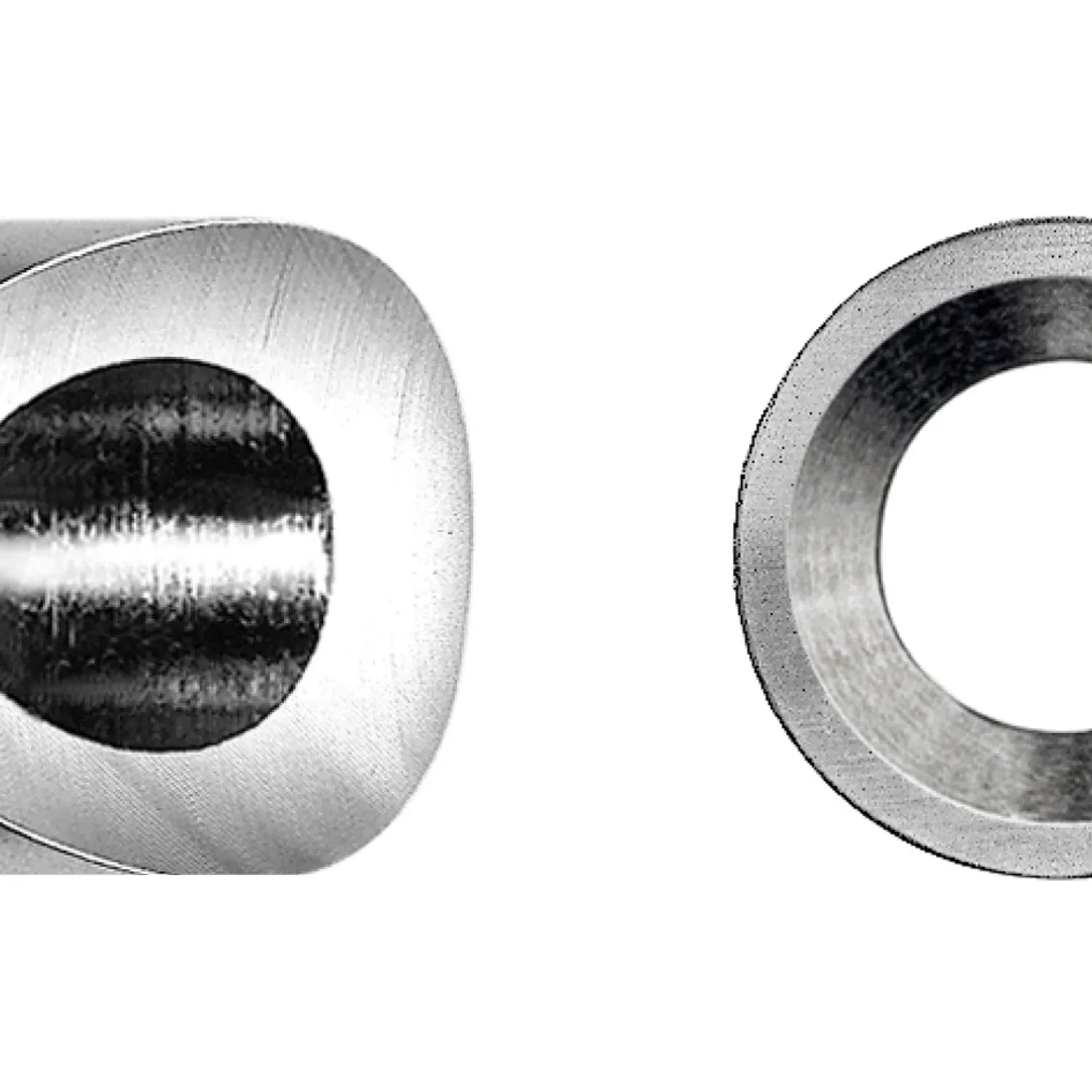

Post fitting round shape for end-stop countersunk head 90° with internal thread
Post fittings by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 4 sizes, article no. 30862-0400-11 to 30862-0800-11.
Price on request
- Transparent, durable stainless steel mesh and frame systems
- For balustrades, enclosures, aviaries and green walls
- Layout and edge-detail design by 828
- Supply and tensioned installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30862 |
| Category | Webnet, Frames & Green Facades |
| Product family | Post fittings |
| Material | Stainless steel 316L |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Webnet |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30862
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | ø d1 | ø d2 | kg |
|---|---|---|---|---|
| 30862-0400-11 | M4 | 13 | 7.3 | 0.0040 |
| 30862-0500-11 | M5 | 13 | 7.3 | 0.0040 |
| 30862-0600-11 | M6 | 18 | 8.5 | 0.0110 |
| 30862-0800-11 | M8 | 18 | 10.5 | 0.0200 |
- Post fitting for round tube and end-stops countersunk head 90° type with internal thread. The pitch angle (α) length (lx) and tube diameter (mm) can be selected. The unit price is valid for:
- - Pitch angle (α) up to a maximum of 60°
- - Length (lx) up to a maximum of 20 mm
- - Diameter (ø d1) as described.
