Pass Through Terminal

Pass Through Terminal

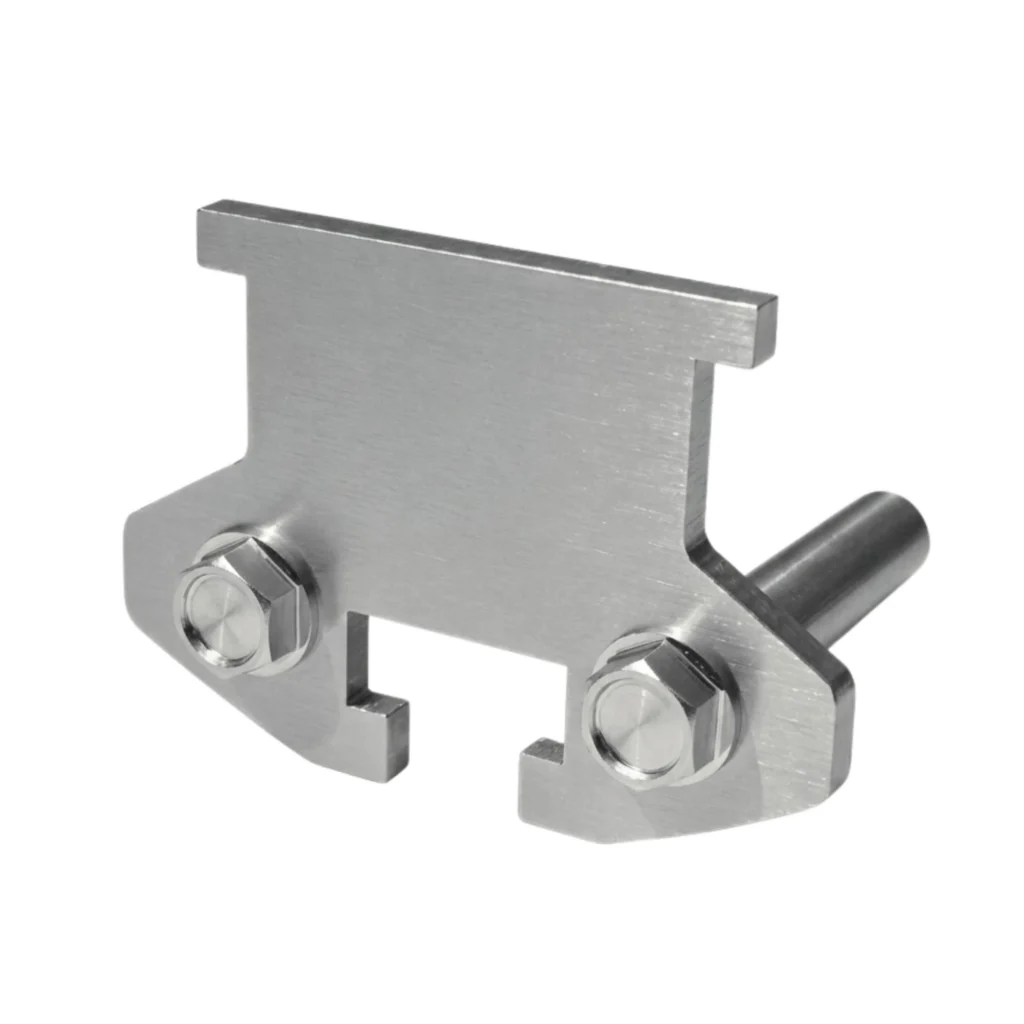

The Model No. GRXPT345 is a specialized terminal component designed for rigid rail lifeline systems. It facilitates continuous movement by allowing the shuttle to transition through the rail end under specific operational conditions, combining high-performance safety with a clean, architectural finish.

Product Overview

Function: Enables the shuttle to pass through the end of the rail, ensuring seamless navigation across the lifeline system.

Features: Incorporates a decorative and low-profile design, making it ideal for installations where aesthetic integration is as important as functional safety.

Key Points:

High-Grade Construction: Manufactured from 304 Stainless Steel for superior durability and corrosion resistance.

Precision Engineering: Designed for easy shuttle navigation and a smooth traversal experience.

Simplified Installation: Engineered for quick and secure mounting to standard rail profiles.

Technical Specifications

Attribute
Specification

Model Number
GRXPT345

Material
304 Stainless Steel

Weight
0.066 kg

Safe Load (Fsafe​)
/

Safety Factor
/

Physical Dimensions

Width (B): 44.2 mm

Height (H): 38 mm

Length (L): 55 mm

Compliance & Certification
This terminal meets international standards for fall protection and multi-user safety:

EN 795:2012, Type D: Certified for 1 person.

CEN/TS 16415:2013: Certified for up to 3 persons.

Validity Period: 10 Years.

Applications
The Pass Through Terminal is an essential component for rail systems used in facade maintenance and rope access. By allowing for continuous shuttle travel, it minimizes the need for disconnection and reconnection, significantly increasing efficiency for technicians working at height.
