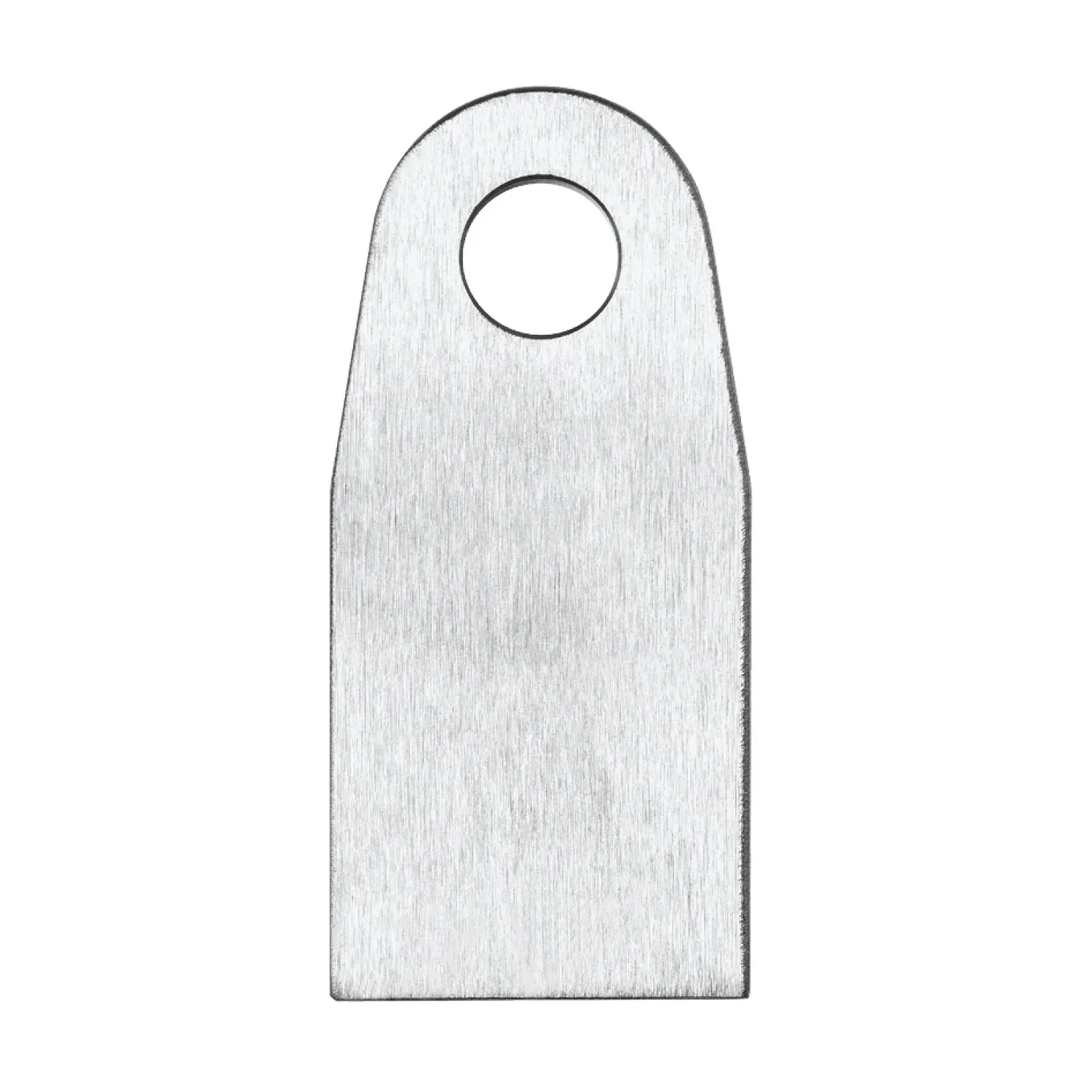

Lug for welding inclined
Tube bracket and Lug for welding by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30924-0012-80.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30924-0012-80 |
| Category | Architectural Cables & Fittings |
| Product family | Tube bracket and Lug for welding |
| Material | Stainless steel 316L |
| Surface | ground, grain 320 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30924-0012-80
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b | c | c1 | c2 | c3 | k | kg |
|---|---|---|---|---|---|---|---|
| 30924-0012-80 | 37 | 80 | 65 | 15 | 15 | 10 | 0.2020 |
- Fastening element for clevises. For welding to a stainless steel construction or tube. Supplied as a loose component. Compatible with the following items:
- Clevis Classic swaged 30981-0800
- Clevis with turnbuckle Classic 30970-0800
- Clevis with external thread 30971-1000 and 30971-1000
- Welding the tab requires the necessary expertise.
