Jakob Rope Systems

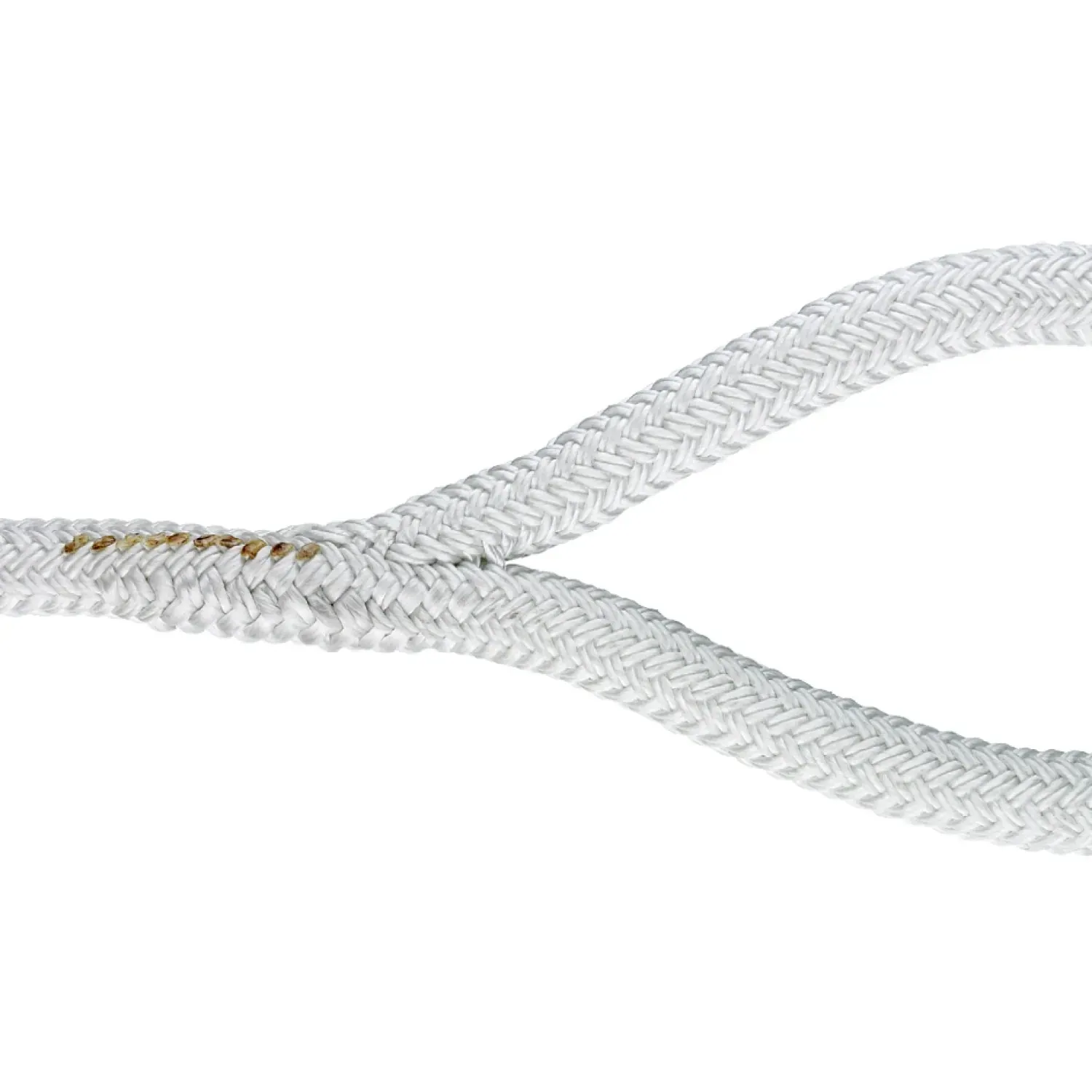

Loop without thimble spliced für Seil geflochten
Spliced loops by Jakob Rope Systems. 7 sizes, article no. 60101-0600 to 60101-1800.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 60101 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Spliced loops |
| Standard | in compliance with DIN 83319 |
| Sizes available | 7 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 60101
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | b4 | ø d2 | ø d5 | s | kg |
|---|---|---|---|---|---|---|
| 60101-0600 | 6 | 35 | x | 12 | 60 | - |
| 60101-0800 | 8 | 50 | x | 16 | 80 | - |
| 60101-1000 | 10 | 60 | x | 20 | 100 | - |
| 60101-1200 | 12 | 65 | x | 24 | 120 | - |
| 60101-1400 | 14 | 70 | x | 28 | 140 | - |
| 60101-1600 | 16 | 90 | x | 32 | 160 | - |
| 60101-1800 | 18 | 100 | x | 36 | 180 | - |
- Short splices attain at least 90 % of the minimum breaking strength of ropes.
- Loops without thimble: Dimension s corresponds to about 10 times the rope diameter. The assembly length can only be determined in the tensioned state and depends on bolt diameter ø d2.
