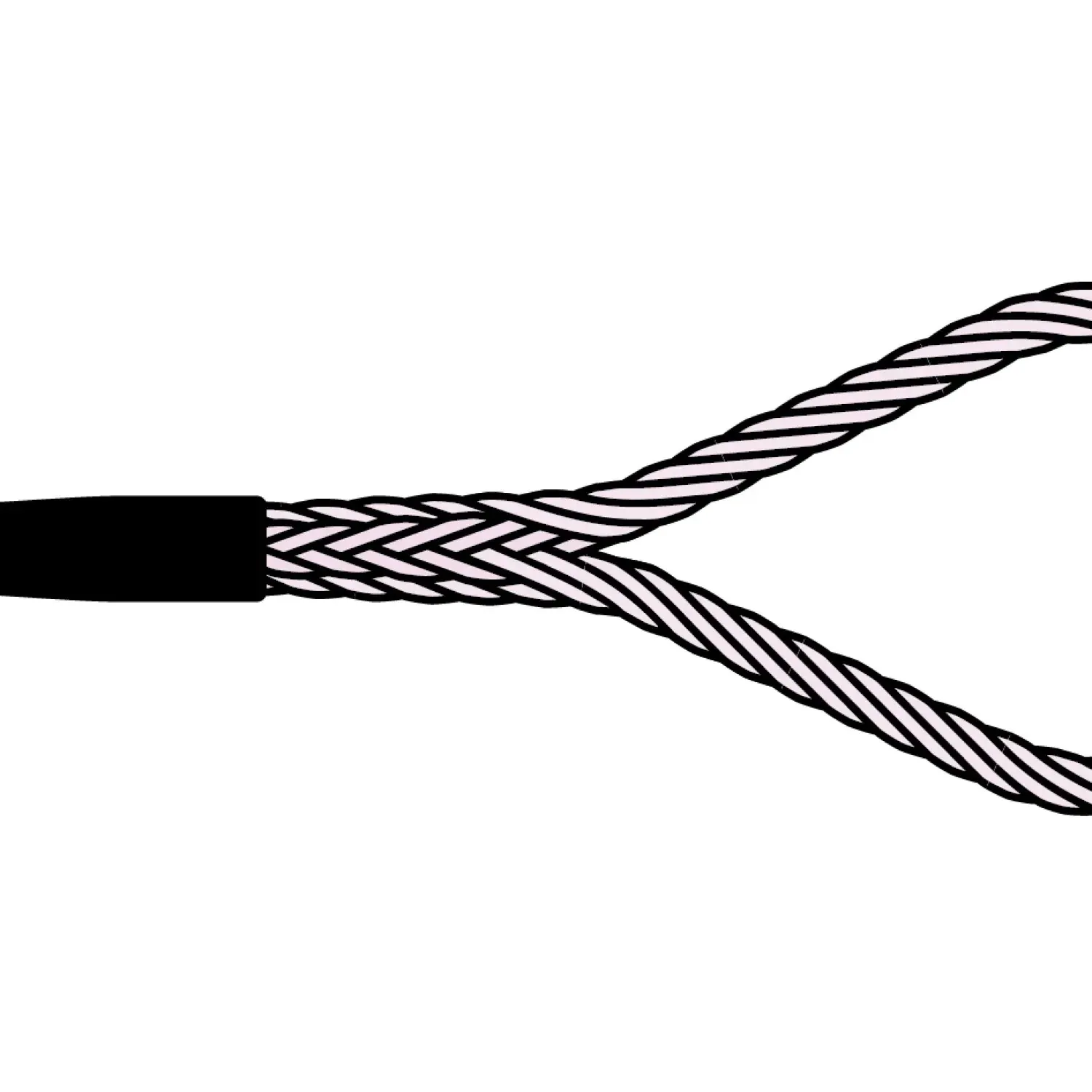

Loop with shrink-on tube spliced without thimble
Loops by Jakob Rope Systems. 8 sizes, article no. 20701-0200 to 20701-1600.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20701 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Loops |
| Standard | in compliance with EN 13411-2 |
| Sizes available | 8 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20701
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | b3 | ø d1 | ø d5 | s | kg |
|---|---|---|---|---|---|---|
| 20701-0200 | 2 | 32 | variabel | 4 | 30 | - |
| 20701-0300 | 3 | 48 | variabel | 6 | 45 | - |
| 20701-0600 | 6 | 96 | variabel | 12 | 90 | - |
| 20701-0800 | 8 | 160 | variabel | 16 | 120 | - |
| 20701-1000 | 10 | 192 | variabel | 20 | 150 | - |
| 20701-1200 | 12 | 224 | variabel | 24 | 180 | - |
| 20701-1400 | 14 | 224 | variabel | 28 | 210 | - |
| 20701-1600 | 16 | 256 | variabel | 32 | 240 | - |
- For galvanized ropes
- Breaking strength: 80 % of the minimum breaking strength of the rope
- Loops without thimble: Dimension s corresponds to about 15 times the rope diameter. The assembly length can only be determined in the tensioned state and depends on bolt diameter ø d1.
