Linear Bracket

Groxx Linear Bracket | GGLB054
High-Strength Lifeline Intermediate Support Component

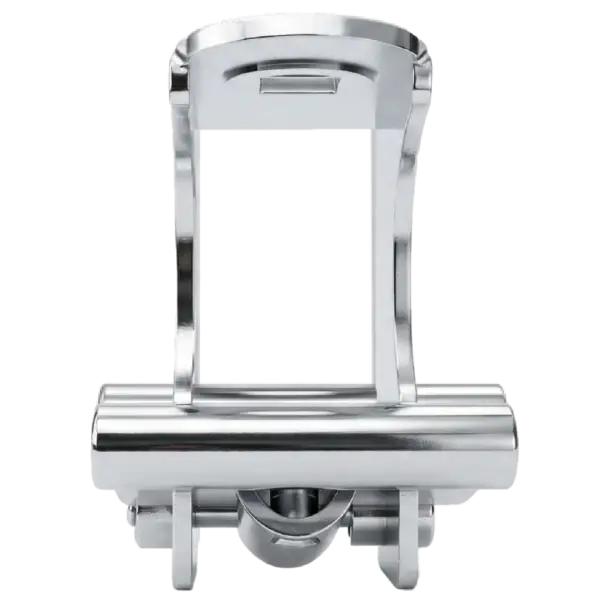

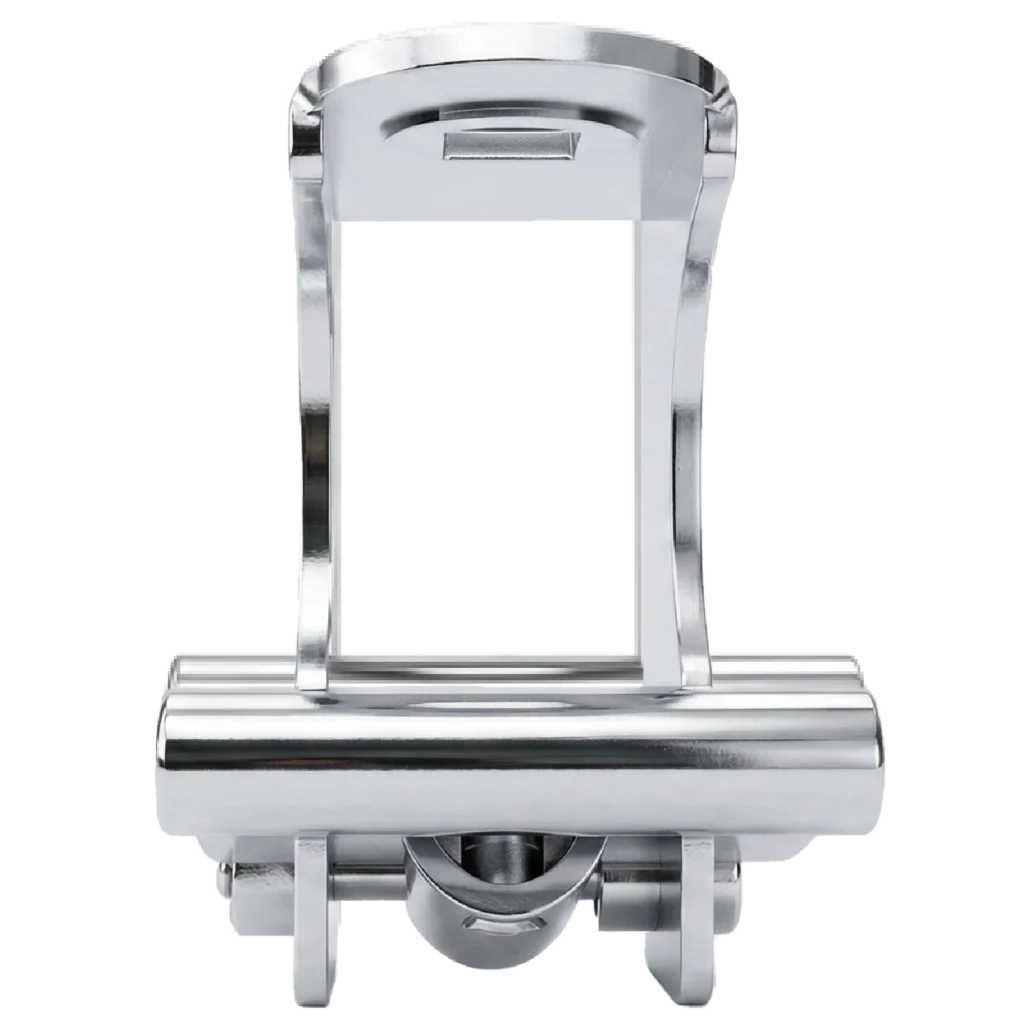

The Groxx Linear Bracket (Model NO: GGLB054) is a precision-engineered intermediate support component designed for permanent, flexible horizontal cable lifeline systems. Functioning as a critical stabilizing anchor along the wire rope profile, this ring bracket delivers stable, dependable load-bearing support, ensuring the entire lifeline architecture maintains maximum structural rigidity and tracking safety during high-altitude operations.

Core Performance Features

Welding-Free Structural Integrity: The stainless steel base plate is cut and formed as a single, unified element. This design rule completely eliminates traditional structural weld seams, eliminating the risk of stress concentration or localized fatigue cracks at critical load zones.

Optimized Shuttle Tracking: Designed to position the intermediate guide tube on the exact same horizontal level as the primary steel lifeline cable. A slight, built-in engineering inclination facilitates smooth, non-jamming travel for passing traveler shuttles.

Compact & Low-Profile Architecture: Features a streamlined, compact structural envelope ($62 times 22 times 70text{ mm}$) that delivers massive force containment without introducing unnecessary bulk or interference to the working path.

Versatile Overhead Alignment: Ideally suited for external overhead configurations, allowing installers to maintain perfect alignment across continuous multi-span setups.

Technical Specifications

Feature
Specification

Model Number
GGLB054 (Ref Material Codes: A2 / A4 Series)

Product Classification
Type C Intermediate Cable Support

Material Composition
Premium Stainless Steel 304 / 316

Cable Compatibility
8mm Stainless Steel Wire Rope Only

Rated Ultimate Load
23 kN

Fulfillment Capacity
Rated for up to 2 people simultaneously

Fixing Method
High-Torque Bolt Fastening

Unit Weight
111g (304 variant) / 109g (316 variant)

Material Lifespan & Environmental Performance
The GGLB054 is tailored for long-term survival in aggressive outdoor, industrial, or coastal environments, backed by variable material validity parameters:

Grade 304 Stainless Steel: Rated for a 10-year conditional validity period, ideal for standard commercial roof spaces and interior industrial tracks.

Grade 316 Stainless Steel: Rated for an extended 20-year conditional validity period, optimized for marine facades, offshore structures, or chemical processing zones.

Maintenance Requirement: To preserve compliance and system validation status, all brackets must undergo a professional safety inspection at least once every twelve (11) months, or sooner depending on workplace frequency and environmental severity.

Compliance & International Standards
The bracket is fully verified and third-party certified to comply with the primary European and international benchmarks for flexible horizontal lifelines:

EN 795:2012 Type C: Certified as a compliant intermediate structural anchor point for flexible wire rope lifelines.

CEN/TS 16415:2013 Type C: Rigorously validated for multi-user safety applications, confirming the bracket safely withstands forces generated during dual-user fall events.

The Groxx Advantage
The GGLB054 Linear Bracket maximizes both safety margins and installation speed. By combining an impressive 23 kN rated load capacity with a smart, weld-free single-plate stamping design, it offers industrial facilities a bulletproof, non-obtrusive, and low-friction cable routing interface. This guarantees that technicians remain securely tied off while experiencing zero restriction in mobility across extended working platforms.
