Jakob Rope Systems

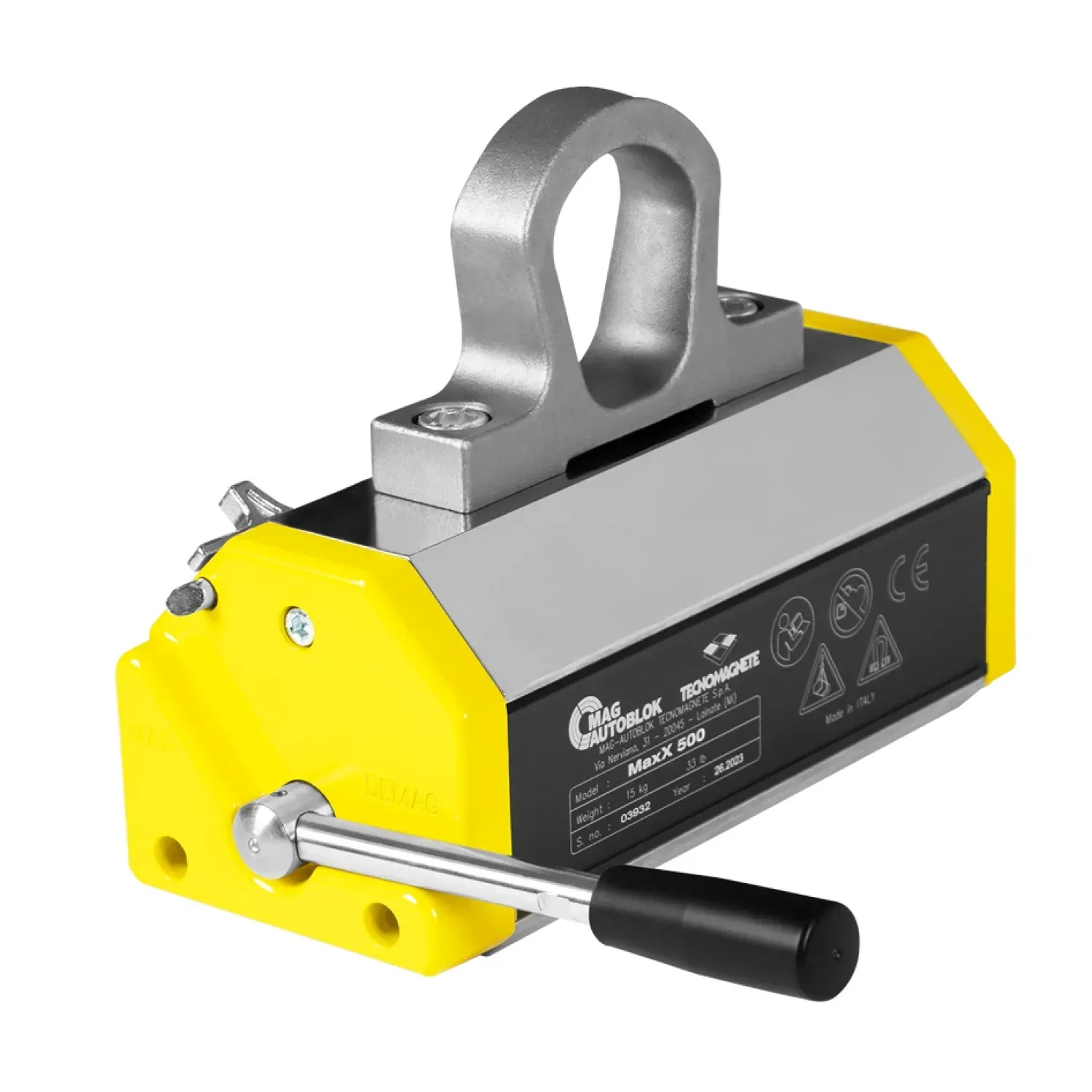

Lifting Magnet MaxX for flat and round stock
Lifting magnet by Jakob Rope Systems. 4 sizes, article no. 30336-0250 to 30336-1500.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30336 |
| Category | Lifting & Load Measurement |
| Product family | Lifting magnet |
| Color | yellow / black |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30336
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b | h | L | kg |
|---|---|---|---|---|
| 30336-0250 | 79 | 142 | 189 | 6.0000 |
| 30336-0500 | 106 | 189 | 249 | 15.0000 |
| 30336-1000 | 133 | 219 | 340 | 34.0000 |
| 30336-1500 | 166 | 293 | 382 | 66.0000 |
- MaxX magnetic lifters are ideal for handling any steel workpiece any steel workpiece whether rough or finished.
- Their compact size and low weight maximize the crane capacity through a range of specific versions for round surfaces and thin material.
- Safety factor 3
