Jakob Rope Systems

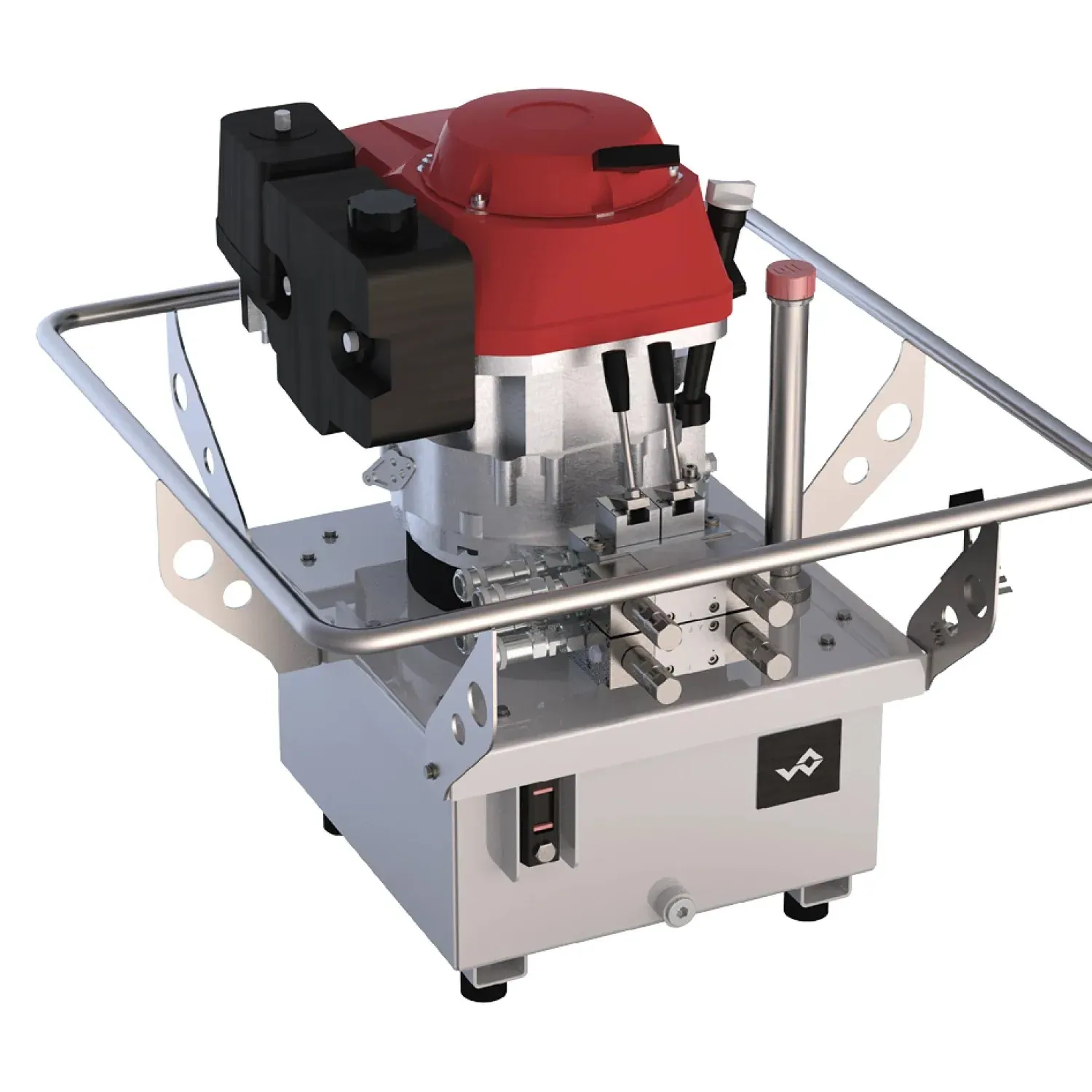

Hydraulic group HB 2
Hydraulic drive by Jakob Rope Systems, 1.4201. 1 size, article no. 10001061.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 10001061 |
| Category | Lifting & Load Measurement |
| Product family | Hydraulic drive |
| Material | Steel |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 10001061
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | kg |
|---|---|
| 10001061 | 99.5500 |
- Quick and easy to operate: Connect the hoses, start the engine, operate the lever on the control valve and rope pulling starts straight away.
- The cylinder is automatically controlled by the changeover valve.
- A pressure relief valve protects the wire rope hoist against overload.
- Connections for 2 equipments, petrol engine: 6.3 kW, pressure of unit: 168 bar, capacity: 2x9 l/min
- Tank content: 25l hydraulic oil, stainless steel tank
