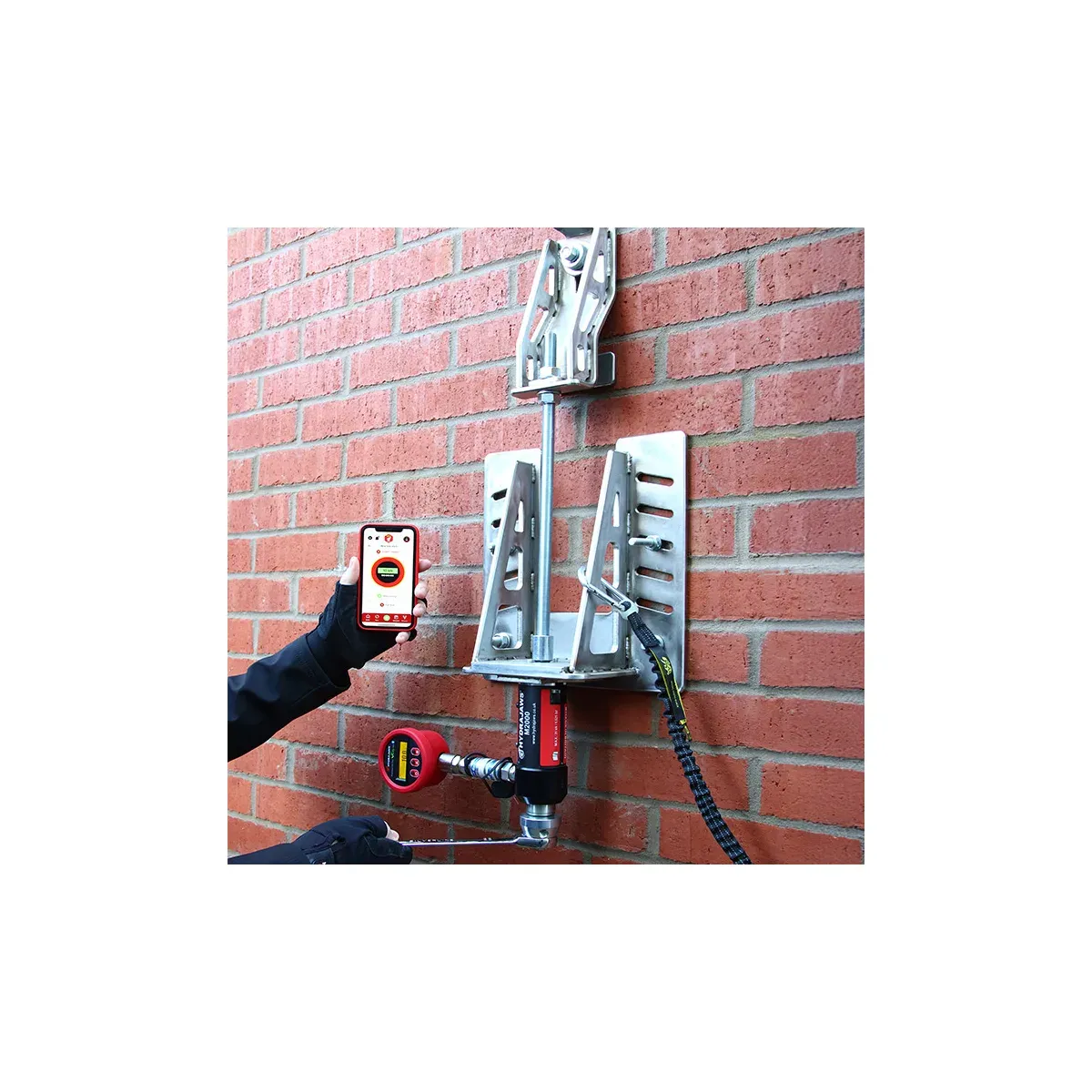

Shear Tester Add-on
Reaction frame add-on that converts an M35+, M2000 or M2050 pull tester to apply shear load to anchors in concrete and masonry. Tester not included.
Price on request
- Proves anchors and fixings in place
- Digital gauges with calibration certificates
- Adaptors for almost any fixing
- Training and on-site testing by 828
| Brand | Hydrajaws |
|---|---|
| Model / SKU | 221-036 |
| Category | Pull-out & Load Testers |
| Product family | Shear Testing |
| Compatible testers | M35+, M2000, M2050 (sold separately) |
| Bush adaptors | 6.5, 8.5, 10.5, 13.0, 16.5, 20.5mm |
| Threaded buttons | M6, M8, M10, M12, M16, M20 |
| Weight | 15kg (33.1lb) |
| Rucksack size | 400 x 450 x 235mm |
| Frame fixing | 4 anchors at typical UK/European brick centres |
| Features | PTFE gasket on shear bracket; observation keyhole; datum boss for displacement measurement |
| Manufacturer origin | United Kingdom |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Load Measurement & Pull-out Testing |
Reaction frame add-on that converts an M35+, M2000 or M2050 pull tester to apply shear load to anchors in concrete and masonry. Tester not included.
In the kit
- Shear test reaction frame
- Shear bracket and gasket
- 500mm drop rod
- M2000/2050 drop rod adaptor
- Bush adaptors 6.5, 8.5, 10.5, 13.0, 16.5, 20.5mm
- Threaded buttons M6, M8, M10, M12, M16, M20
- 24mm open-ended spanner
- Hydrajaws rucksack
Supplied by 828
828 Cable System is the authorized Hydrajaws distributor in the Philippines. We supply the testers with their calibration certificates, can train your team to use them, and can carry out on-site pull-out testing for you.
