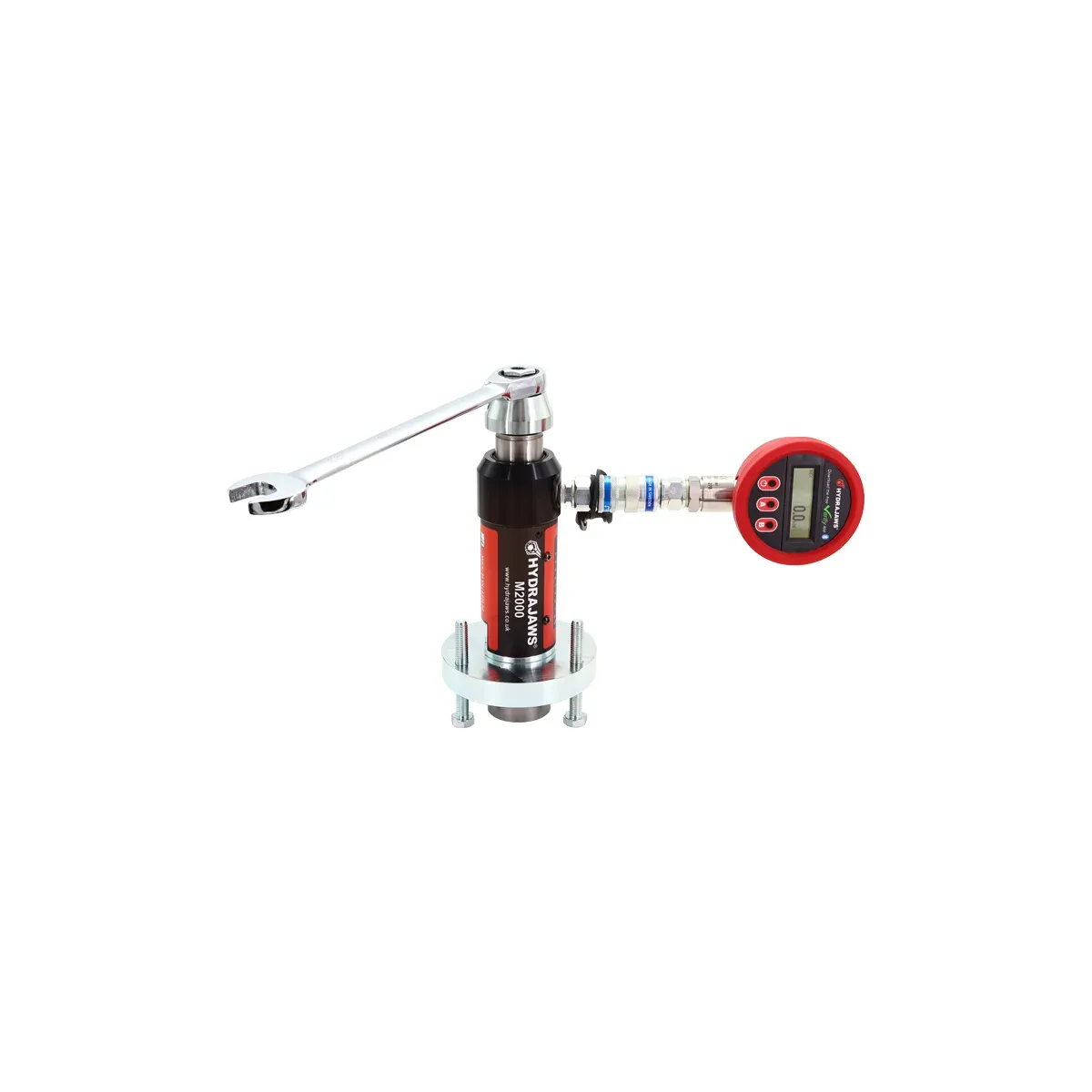

M2000 Material Bond Tester Kit
25kN adhesion/bond strength tester kit using bonded steel discs (dollies). Used to measure pull-off bond strength of coatings, screeds, renders, repair mortars and similar surface materials.
Price on request
- Proves anchors and fixings in place
- Digital gauges with calibration certificates
- Adaptors for almost any fixing
- Training and on-site testing by 828
| Brand | Hydrajaws |
|---|---|
| Product no. | On request |
| Category | Pull-out & Load Testers |
| Product family | Pull Tester Kits |
| Max tensile load | 25kN |
| Nominal stress capacity | 12.73MPa with 50mm disc; 5.65MPa with 75mm disc |
| Gauge | 0-25kN dual-scale rechargeable digital gauge (detachable); analogue option |
| Bond discs | 50mm and 75mm diameter steel, 20mm thick |
| Bond stool | Adjustable alignment plate with built-in levelling, plus bond stool bush |
| Calibration | Hydrajaws gauge calibration certificate, valid 12 months |
| Sizes available | 2 article numbers |
| Manufacturer origin | United Kingdom |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Load Measurement & Pull-out Testing |
25kN adhesion/bond strength tester kit using bonded steel discs (dollies). Used to measure pull-off bond strength of coatings, screeds, renders, repair mortars and similar surface materials.
In the kit
- 10 x 75mm dia. steel discs, 20mm thick
- 10 x 50mm dia. steel discs, 20mm thick
- Adjustable alignment bond stool plate with levelling
- Bond stool bush
- 0-25kN rechargeable digital gauge
- Protective carry case
- Operating instructions
- Gauge calibration certificate
Supplied by 828
828 Cable System is the authorized Hydrajaws distributor in the Philippines. We supply the testers with their calibration certificates, can train your team to use them, and can carry out on-site pull-out testing for you.
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| Option | Details |
|---|---|
| Digital gauge | 0-25kN |
| Analogue gauge | 0-25kN |
