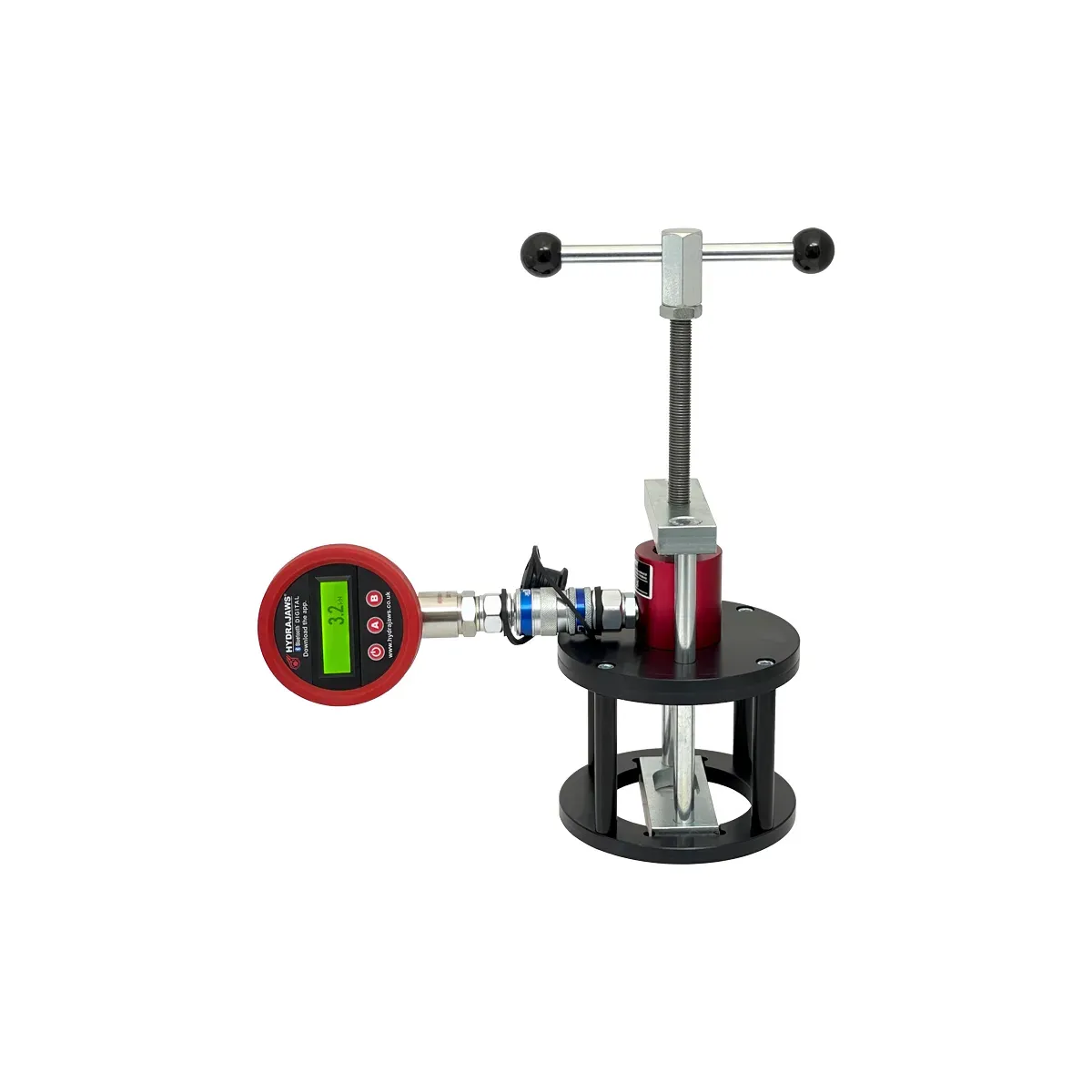

M0095 Long Stroke Tester Kit
25kN long-stroke (80mm) pull tester aimed at roofing screws, cladding and plastic fixings, able to fully extract the fixing. Uses a low-pressure cylindrical bridge suitable for soft substrates.
Price on request
- Proves anchors and fixings in place
- Digital gauges with calibration certificates
- Adaptors for almost any fixing
- Training and on-site testing by 828
| Brand | Hydrajaws |
|---|---|
| Model / SKU | 090-001 |
| Category | Pull-out & Load Testers |
| Product family | Pull Tester Kits |
| Max tensile load | 25kN (5620lbf) |
| Stroke | 80mm |
| Base pressure | Below 1 N/mm2 at 10kN |
| Bridge | Cylindrical |
| Gauge | Not included (Hydrajaws digital gauge recommended, sold separately) |
| Adaptors | Threaded buttons M4-M12; slotted buttons 4.5-12.5mm |
| Pulling plates | 6.5mm, 8.0mm, 16.5mm, 20mm |
| Manufacturer origin | United Kingdom |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Load Measurement & Pull-out Testing |
25kN long-stroke (80mm) pull tester aimed at roofing screws, cladding and plastic fixings, able to fully extract the fixing. Uses a low-pressure cylindrical bridge suitable for soft substrates.
In the kit
- Tester frame with operating rod, top plate and handle
- Capsule and hydraulic body coupler
- 6 threaded button adaptors
- 6 slotted button adaptors
- 4 interchangeable pulling plates
- Padded carry case
- Operating instructions
Supplied by 828
828 Cable System is the authorized Hydrajaws distributor in the Philippines. We supply the testers with their calibration certificates, can train your team to use them, and can carry out on-site pull-out testing for you.
