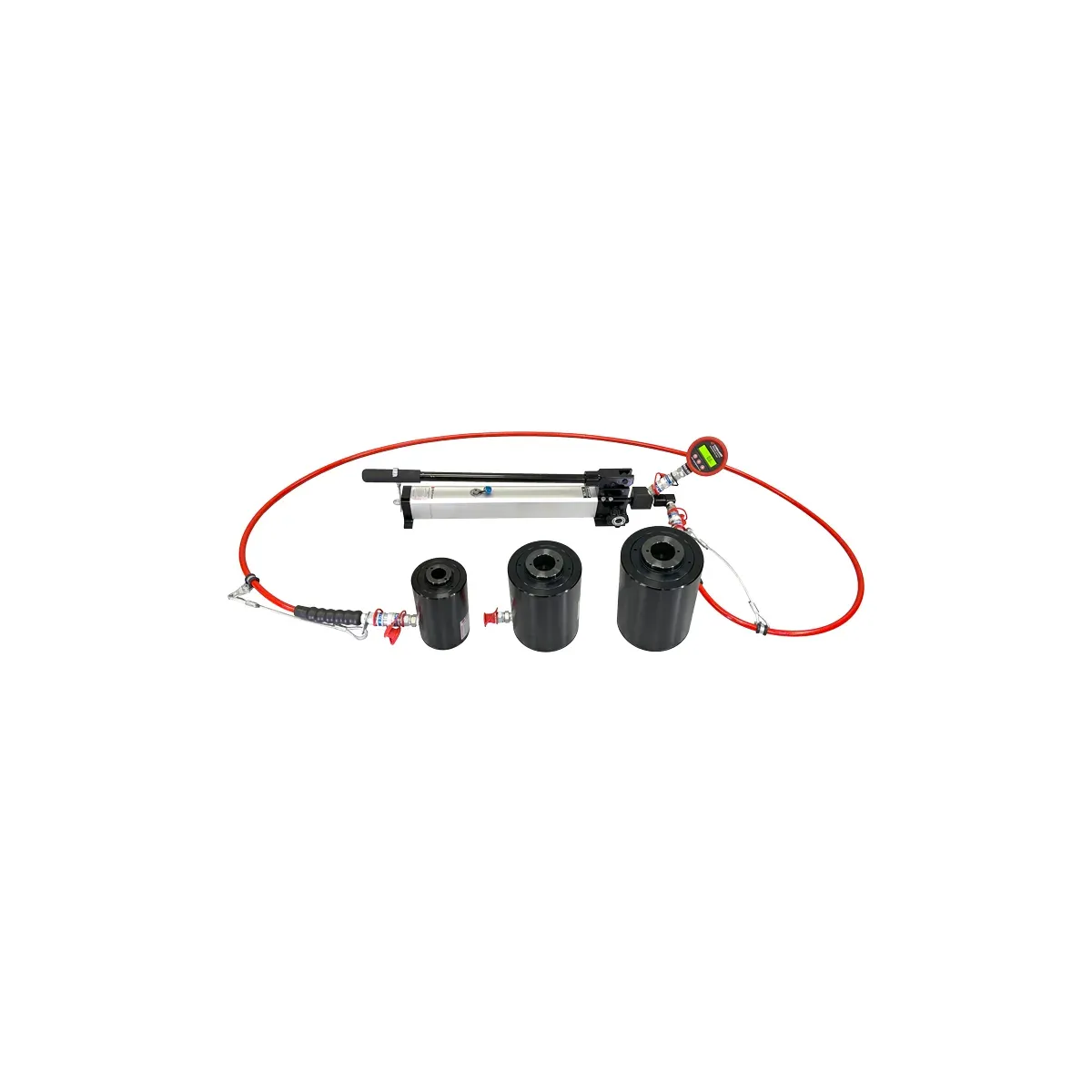

Hydraulic Hollow Cylinder Tester Kits
Heavy-capacity test kits using a hollow-bore aluminium cylinder and hand pump, for pull-testing large rebar, rock bolts and tendons at 180, 370 or 500kN. The rod or cable passes through the cylinder.
Price on request
- Proves anchors and fixings in place
- Digital gauges with calibration certificates
- Adaptors for almost any fixing
- Training and on-site testing by 828
| Brand | Hydrajaws |
|---|---|
| Product no. | On request |
| Category | Pull-out & Load Testers |
| Product family | Pull Tester Kits |
| Capacities | 180kN, 370kN, 500kN |
| Gauge | Detachable dual-scale rechargeable digital (size-specific) |
| Pump | Two-speed manual aluminium hand pump with swivel block (larger pump on 500kN) |
| Hose | 3m with hose whip restraint |
| Cylinder | Hollow-bore aluminium, hollow piston, hard anodised, steel base protection plate |
| Calibration | Hydrajaws gauge calibration certificate, valid 12 months |
| Sizes available | 3 article numbers |
| Manufacturer origin | United Kingdom |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Load Measurement & Pull-out Testing |
Heavy-capacity test kits using a hollow-bore aluminium cylinder and hand pump, for pull-testing large rebar, rock bolts and tendons at 180, 370 or 500kN. The rod or cable passes through the cylinder.
In the kit
- Two-speed aluminium hand pump
- Rechargeable digital gauge (detachable)
- 3m hose with whip restraint
- Hollow-bore aluminium cylinder (180/370/500kN)
- Gauge calibration certificate
- Wheeled Explorer case with inlay
- User manual
Supplied by 828
828 Cable System is the authorized Hydrajaws distributor in the Philippines. We supply the testers with their calibration certificates, can train your team to use them, and can carry out on-site pull-out testing for you.
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| Option | Details |
|---|---|
| 180kN | 180kN (40,466lbf) |
| 370kN | 370kN (83,179lbf) |
| 500kN | 500kN (112,404lbf) |
