Jakob Rope Systems

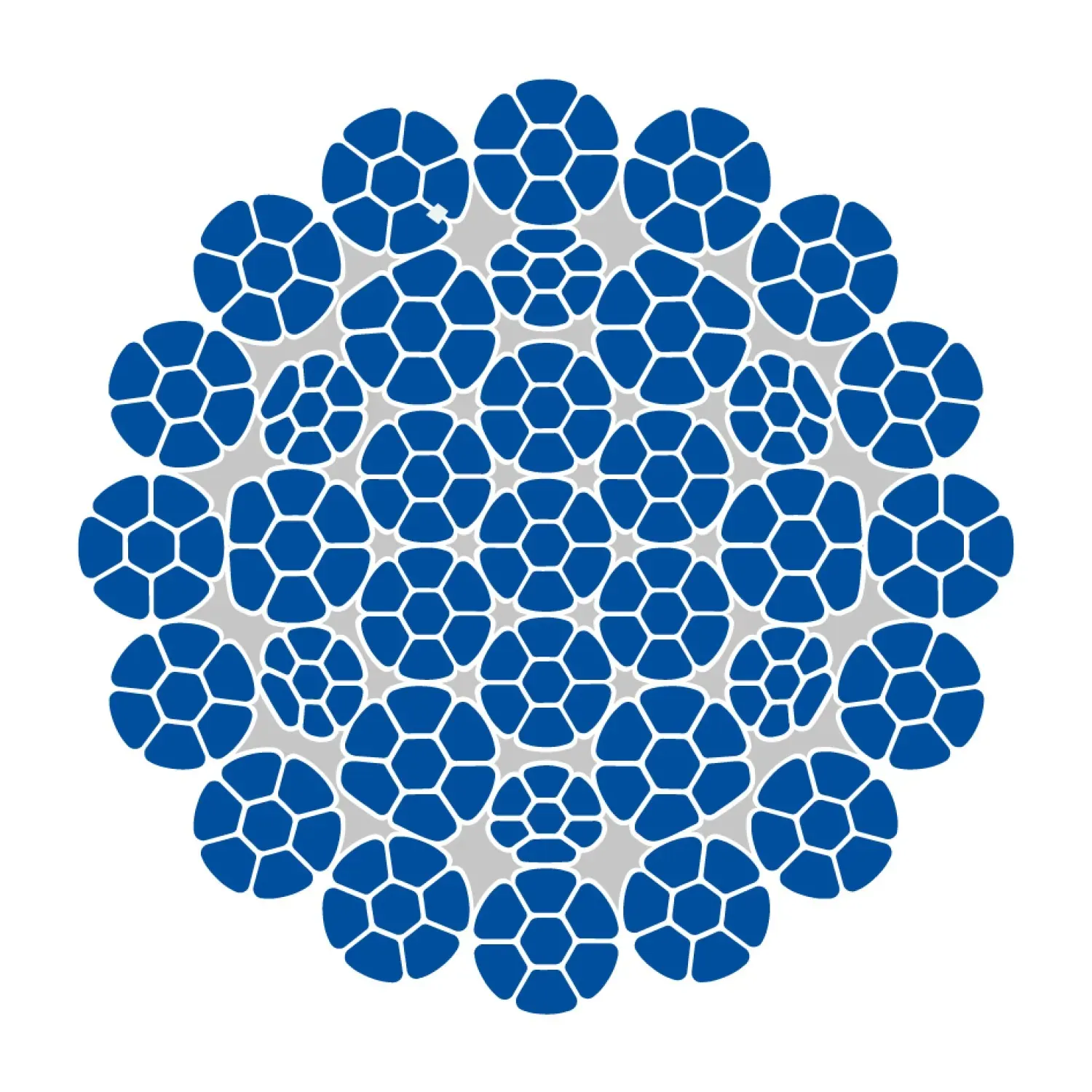

Hoisting rope rotation-resistant cat. 1 / ASTM 35 x 7 + WC strand compactet
Hoist ropes / assembly ropes by Jakob Rope Systems, steel wire. 4 sizes, article no. 10501-1000 to 10501-1600.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 10501 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Hoist ropes / assembly ropes |
| Material | Steel |
| Surface | galvanized |
| Standard | EN 12385 |
| Nominal strength | 1960 N/mm2 |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 10501
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Status | ø | Constr | MBL kN | kg |
|---|---|---|---|---|---|
| 10501-1000 | 10 | 35 x 7 + WC | 93,4 | 0.5100 | |
| 10501-1100 | 11 | 35 x 7 + WC | 113 | 0.6170 | |
| 10501-1200 | Phased out | 12 | 35 x 7 + WC | 135 | 0.7100 |
| 10501-1600 | Phased out | 16 | 35 x 7 + WC | 239 | 1.2500 |
- Rotation-resistant and flexible hoist rope (cat. 1 / ASTM) with compacted strands
- For mobile cranes, electric hoists and other applications requiring non rotating ropes
- Is heavily lubricated
- Has high breaking strength and offers good resistance to pressure on the drum
- Has a specially designed steel rope core to avoid strand crossover and internal damage
