Jakob Rope Systems

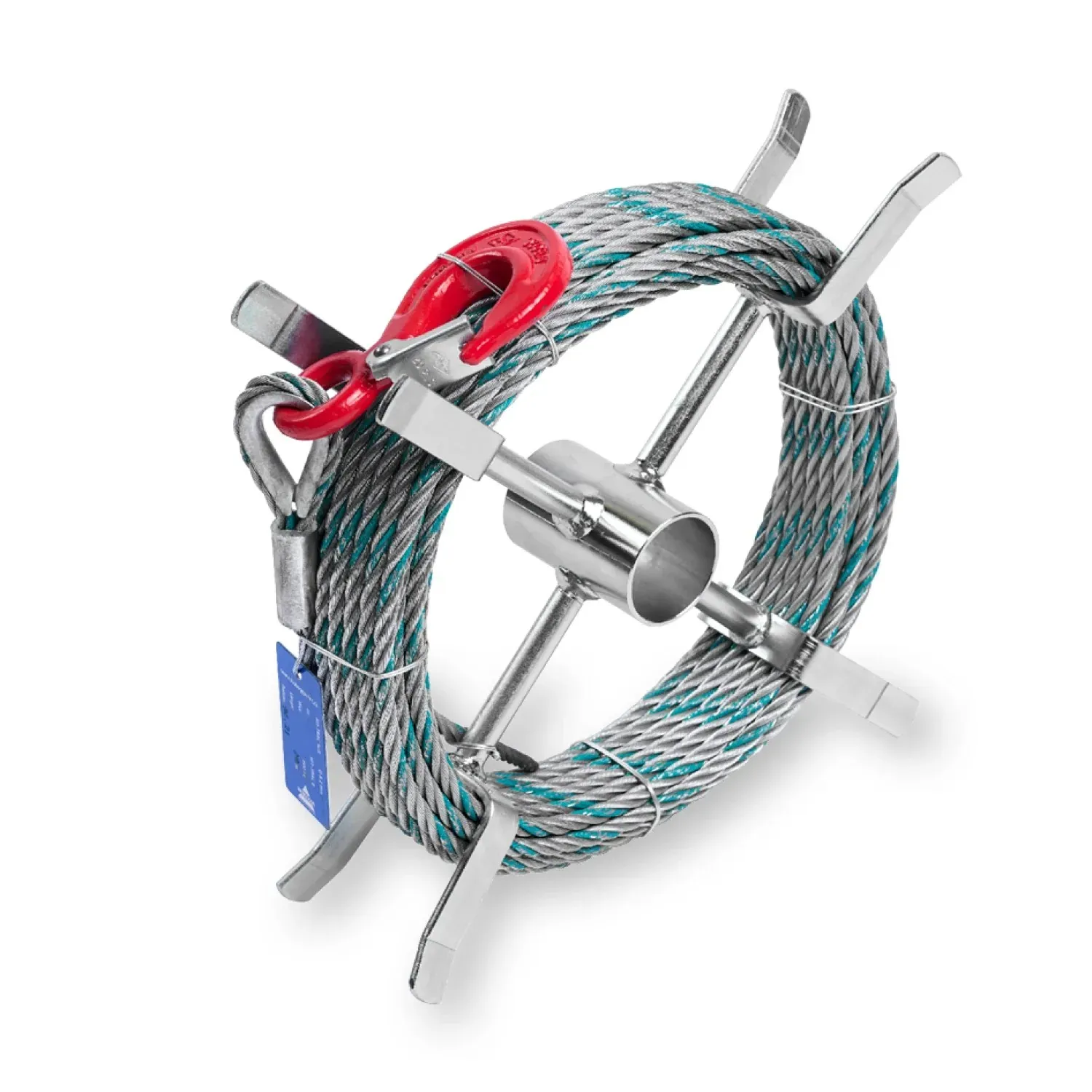

Hoist rope Habegger swaged for HIT-TRAC 8
Motorized rope hoist HIT-TRAC 8 by Jakob Rope Systems, steel wire. 12 sizes, article no. 07297 to 07311.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 07297 |
| Category | Lifting & Load Measurement |
| Product family | Motorized rope hoist HIT-TRAC 8 |
| Material | Steel |
| Surface | galvanized |
| Nominal strength | 1960 N/mm2 |
| Sizes available | 12 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 07297
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | L | kg |
|---|---|---|---|
| 07297 | 8.2 | 15 | 5.8000 |
| 07298 | 8.2 | 20 | 7.1500 |
| 07299 | 8.2 | 25 | 8.5000 |
| 07303 | 8.2 | 30 | 9.8500 |
| 07304 | 8.2 | 40 | 12.5500 |
| 07305 | 8.2 | 50 | 15.2500 |
| 07306 | 8.2 | 60 | 17.9500 |
| 07307 | 8.2 | 70 | 21.7200 |
| 07308 | 8.2 | 80 | 24.4200 |
| 07309 | 8.2 | 90 | 27.1200 |
| 07310 | 8.2 | 100 | 29.8200 |
| 07311 | 8.2 | 150 | 43.3200 |
- one end with eye hook, the other end tapered
- Wound on reel
